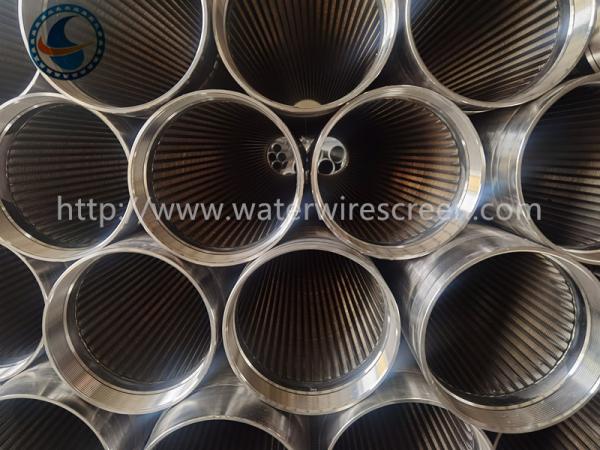

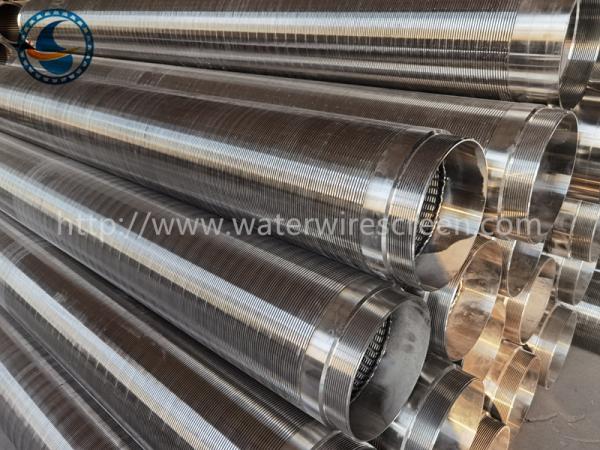

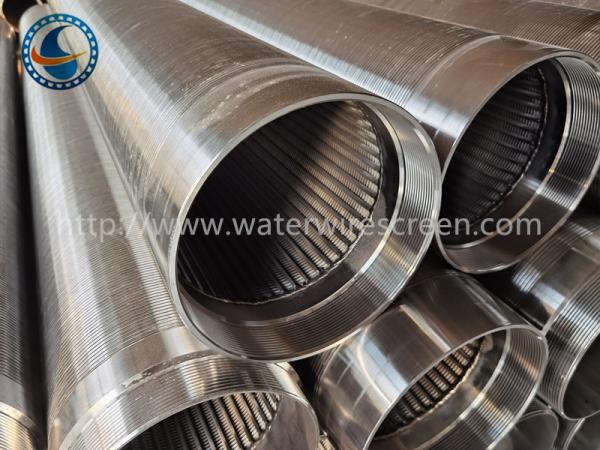

6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
6-5/8 Diameter Profile ISO Johnson Wire Screen With 0.04 Gap
Specifications
Brand Name :
Heng Yuan
Model Number :
HY150
Certification :
ISO, CIQ, EC, FORM E etc
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7 days
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Profile Wire Sand Control Screen
Material :
Stainless steel
Grade :
304
Diameter :
6-5/8 " (168mm)
Slot size :
0.04" (1.0mm)
Length :
2000mm
Profile Wire :
2*3.5mm
Support rods :
ø3.8mm
End connection :
Male/female threaded
Surface :
Polished
Description

AISI 304 6-5/8" Diameter Profile Wire Sand Control Screen With 0.04" Gap

Profile Wire Sand Control Screen Description:

Johnson strainer,Johnson filter,water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

·Water Well

·Waste Water Treatment

.Water supply systems

·Coal & Mine

·Food Processors & Beverage Screens

·Environmental protection

·Refining & Petrochemical

·Architecture & Construction

Profile Wire Sand Control Screen Specificarion:

Name Profile Wire Sand Control Screen
Material Stainless steel
Grade 304
O.D 168mm
Size 6-5/8"
Length 2000mm
Solt size 1.0 mm
End connection Male/female threaded
Wire size 2*3.5mm
Support rod ø3.8mm round wire
Wire shape Vee shaped wire

Profile Wire Sand Control Screen Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Profile Wire Sand Control Screen Advantages:

Non-clogging capabilities

Self supporting

High abreaction resistance

Large open area

Better sand filtration

Energy saving

Lowest possible cost

Long using life

Maximum flow capacity

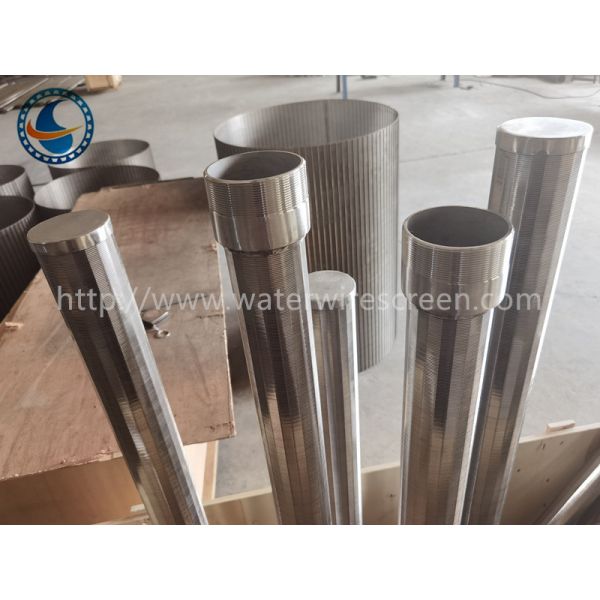

6-5/8

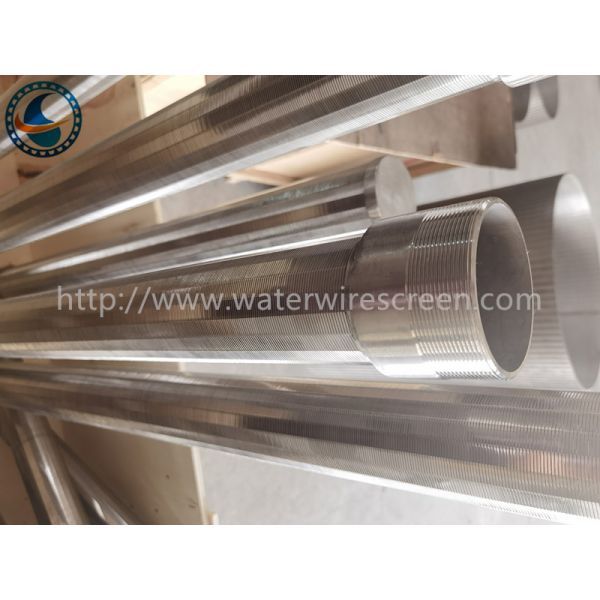

6-5/8

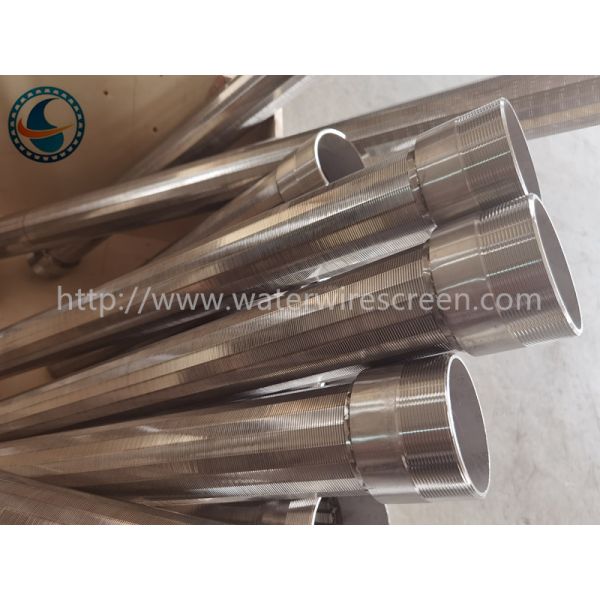

6-5/8
