AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
AISI 316L DN100 Sand Control Screens With Male Threaded
Specifications
Brand Name :
Heng Yuan
Model Number :
HY001
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64pcs per 20 ft container
Name :
Johnson Wedge Wire Sand Control Screen
Material :
Stainless steel
Grade :
316L
O.D :
113mm
Slot size :
0.25mm
Length :
1500mm
Wrap wire :
1.5*2mm Vee wire
Support rod :
2*3mm Vee wire
Ends :
Male/female threaded
Package :
Woden boxes
Description

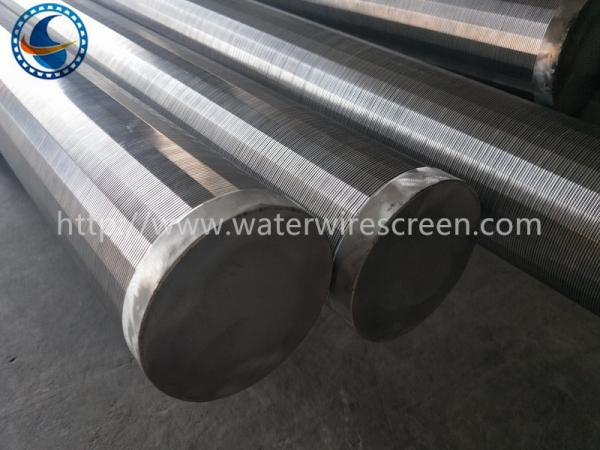

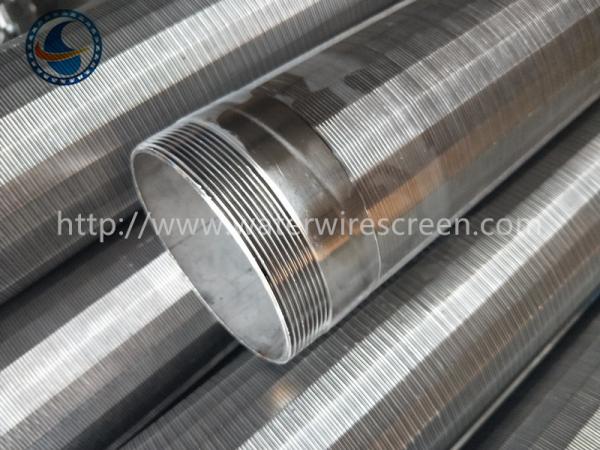

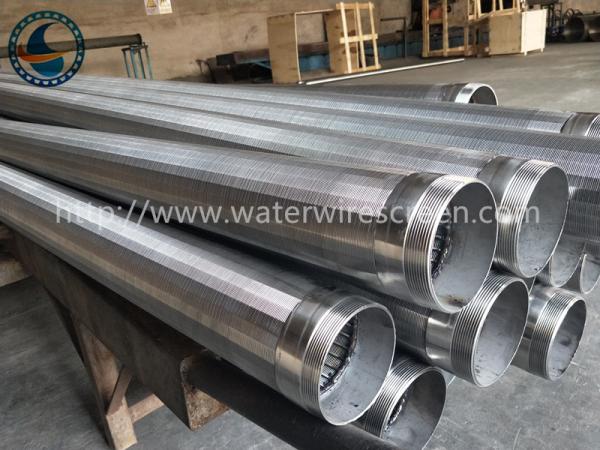

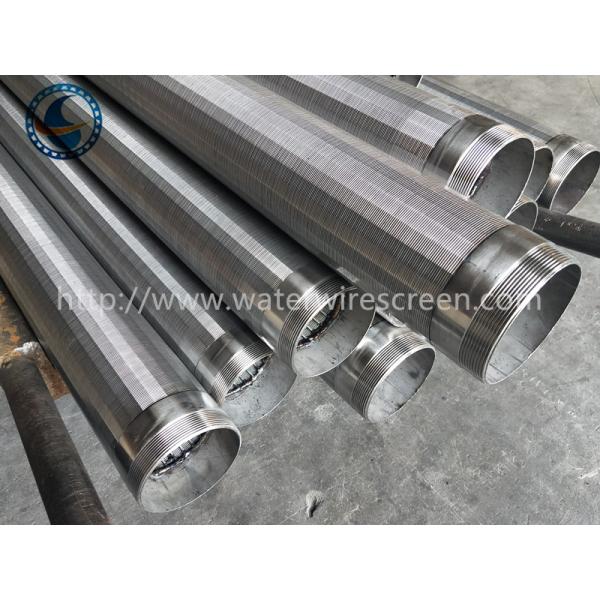

AISI 316L DN100 Johnson Wedge Wire Sand Control Screen With Male Threaded

Johnson Wedge Wire Sand Control Screen Description:

Johnson Wedge Wire Sand Control Screen is made up of wrap wire and support rods.

The rods can be round wire / Vee shaped wire.

The wrap wire is Vee shaped.

Slot:20um-10000um.

It has a structure and high open area, as well as accurate slot dimension.

At the same time, It has a heat-resisting, anti-corrosive, good machine capability.

It can be used in many kinds of medium filtering.

Johnson Wedge Wire Sand Control Screen Specification:

Name Johnson Wedge Wire Sand Control Screen
Material Stainless steel
Grade 316L
O.D 113 mm
Size DN100
Slot size 0.25 mm
Length 1500mm
End connection Male/female threaded
Wire size 1.5*2mm Vee wire
Support rod 2*3mm Vee wire
Wire shape Vee shaped

Johnson Wedge Wire Sand Control Screen Advantages:

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Good flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.

AISI 316L DN100 Sand Control Screens With Male Threaded

AISI 316L DN100 Sand Control Screens With Male Threaded

AISI 316L DN100 Sand Control Screens With Male Threaded

AISI 316L DN100 Sand Control Screens With Male Threaded

AISI 316L DN100 Sand Control Screens With Male Threaded
