3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
Specifications
Brand Name :
Heng Yuan
Model Number :
HY123
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64pcs per 20 ft container
Name :
Continuous Slot Johnson VEE-Wire Screen Panel
Slot size :
0.5mm
Material :
Stainless steel
Grade :
304
Width :
3000 mm
Length :
3000 mm
Wire :
1.5*2mm VEE-Wire
Support rod :
2*3mm VEE-Wire
Distance of rods :
20mm
Description

3 Meters By 3 Meters SS304 Continuous Slot Johnson VEE-Wire Screen Panel

Stainless Steel Continuous Slot Johnson VEE-Wire Screen Panel, is welded by V wire and support rod.

There is a fixed value slot between each v wire.

The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire.

There is a certain distance between each support bar too .

The filter surface is smooth, the gap is uniform, and it is not easy to block.

We can weld the frame around the bottom or bottom of the net.

The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.

Continuous Slot Johnson VEE-Wire Screen Panel Specification:

Name Continuous Slot Johnson VEE-Wire Screen Panel
Material Stainless steel
Grade 304
Dimension 3000mm*3000mm
Slot Size 0.5 mm
Width 3000mm
Length 3000mm
Type Screen plate
Wire size 1.5*2 mm VEE wire, 1.5mm is the width and 2mm is the height
Support rod 2*3 mm VEE wire, 2mm is the width and 3mm is the height
Wire shape VEE shaped

Continuous Slot Johnson VEE-Wire Screen Panel Regular Specifications:

Material: stainless steel 302, 304, 304L, 316, 316L, 904L,Duplex steel 2205, 2507 etc.

Slot: 0.1mm - 100mm

Discrepancy: + / - 0.05mm

Dimension: Width up to 4000 mm

Length up to 4000mm

Continuous Slot Johnson VEE-Wire Screen Panel Parameter selection table:

SIZES OF THE WIRE AND ROD
WIRE SHAPE V V V V V V
Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
Height(mm) 2.0 2.0 2.0 3.5 3.5 4.6
ROD SHAPE V V V V V O (round wire)
Width(mm) 2.0 3.0 3.0 3.0 3.2 Diameter
Height(mm) 3.0 4.6 5.0 6.0 6.0 2.8~4.0mm

Continuous Slot Johnson VEE-Wire Screen Panel Use :

Continuous Slot Johnson VEE-Wire Screen Panel can be used in food processing, malting, floor grating, wall covers and ventilating systems.
Johnson's flat machines are unequalled in their ability to produce a screen that will meet specific requirements.
The wire size can be as small as .020 inches with .001 inches slot openings on the fine side, to 1/2 inch wire and 1/2 inch slot opening for larger screens.

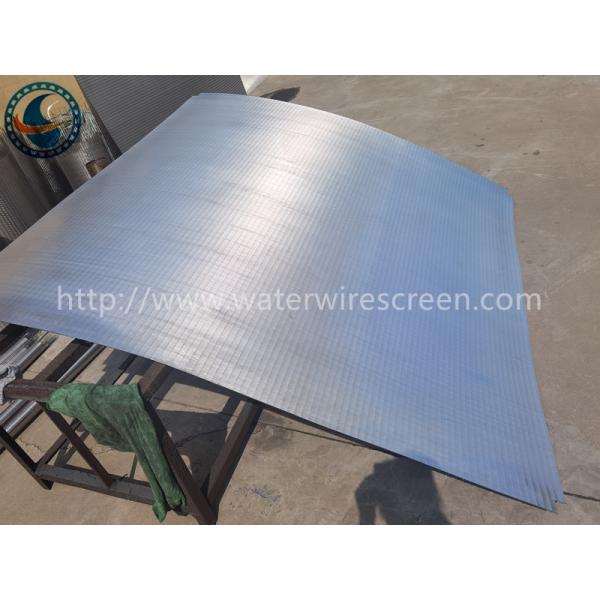

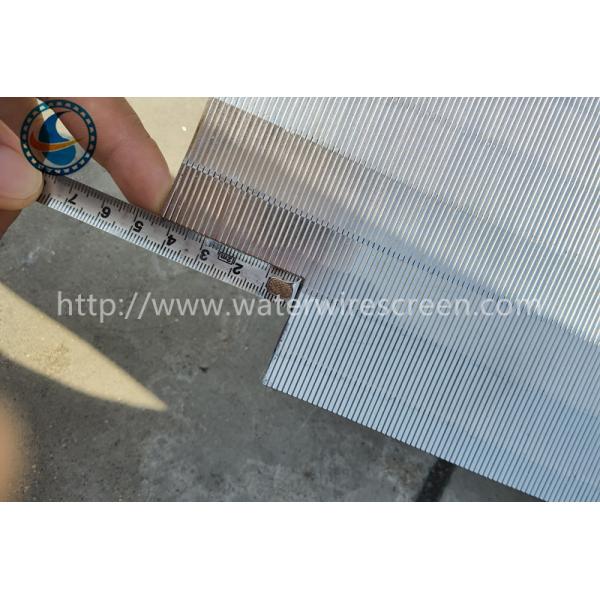

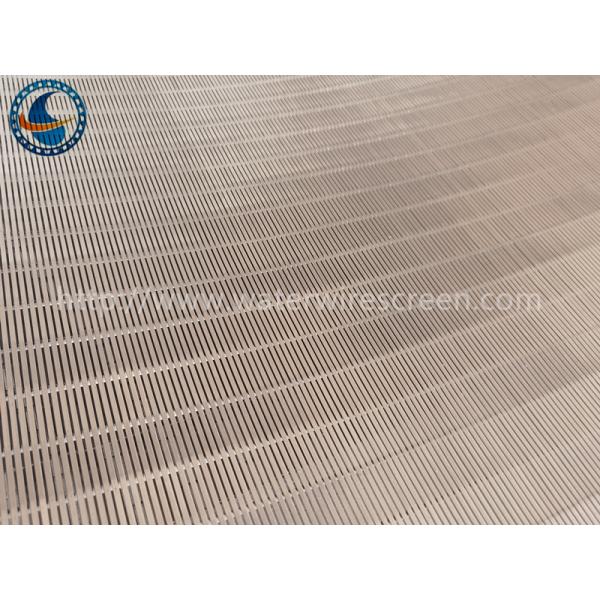

Continuous Slot Johnson VEE-Wire Screen Panel Pictures:

3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen

3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen

3 Meters By 3 Meters SS304 0.5mm Continuous Slot Screen
