OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
Specifications
Brand Name :
HengYuan
Model Number :
HY-119
Certification :
ISO,SGS,CIQ,CE，FORM E etc
Place of Origin :
Hengshui City,Hebei Province
MOQ :
1 piece
Price :
Negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs /week
Delivery Time :
7 days
Packaging Details :
wooden boxes OR plastic film in container
Name :
Continuous Slotted Cyclone Washing Machine Filter Element
Material :
Stainless steel 304
Length :
970mm
Diameter :
215mm
Technique :
Full welded
Features :
Non-clogging
Application :
Filteration
Package :
Wooden box
Weight :
5.5KG/piece
Filter Type :
From outside to inside
Description

Continuous Slotted SS 304 OD 215mm Cyclone Washing Machine Filter Element

Continuous Slotted Cyclone Washing Machine Filter Element also be named Johnson screen, Wedge wire screen, Wound screen, Wire wrapped screen, Screen filter, profile wire screen, V- wire screen tube.

Continuous Slotted Cyclone Washing Machine Filter Element is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods.

Each intersection of the profiles wire and support rod is well welded.
It has a smooth surface, resistant to clogging and a greater structural strength.

Continuous Slotted Cyclone Washing Machine Filter Element is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.

Continuous Slotted Cyclone Washing Machine Filter Element use:
It is used in liquid filtration processes in the food, chemical, petrochemical, paper, liquid, gas and solid separation, sizing, dewatering and sifting in oil wells, water wells, waste/process water treatment, quarry screening, mine sifting and other industrial screening.

Continuous Slotted Cyclone Washing Machine Filter Element
Specification (Profile wire): Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2 etc.
Height(mm): 2.0 3.0 4.6 5.0 6.0 7.0 etc.
Specification (support rods) Width(mm): 2.0 3.0
Height(mm): 3.0 4.6 5.0 6.0 7.0
Round: From ø2.5mm to 6.0mm round wire
Note: other wires and rods available upon request
Slot size (mm) 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request.
Material Stainless steel 205, 304, 304L, 316L ,321 etc.)
Length Upto 4 meters
Diameter 29-1300mm
Screen ends Plain beveled ends, male/female threaded, flange, close up.
Other sizes available on request.

Advantage

Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.


Continuous Slotted Cyclone Washing Machine Filter Element Advantages:

Non-clogging capabilities
Self supporting
High abreaction resistance
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity

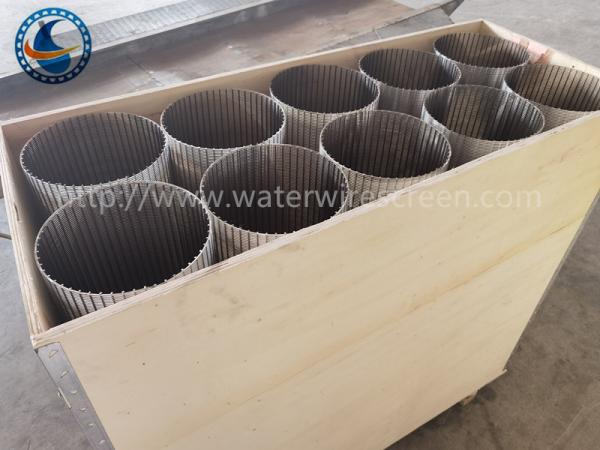

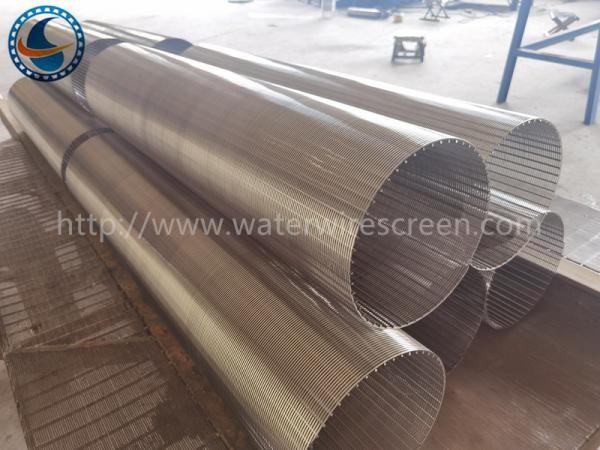

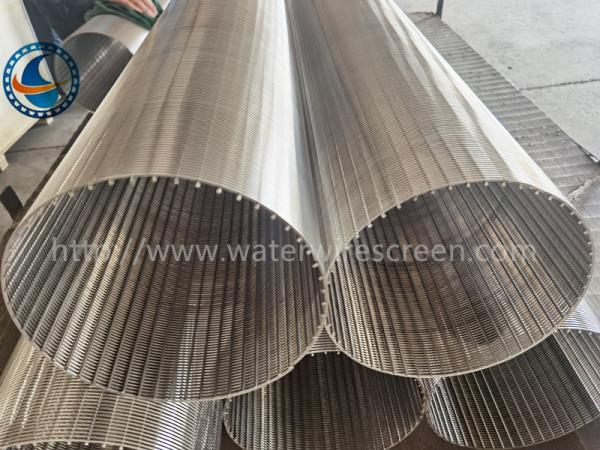

Continuous Slotted Cyclone Washing Machine Filter Element Pictures:
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
OD 215mm Sus304 Non Clogging Continuous Slot Screen
