Specifications
Brand Name :
Heng Yuan
Model Number :
HY005
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Diameter :
4-1/2",89 mm,10-3/4",273 mm etc.
Slot size :
1.0 mm, can be made by customer
Material :
Stainless steel 304 / 316 L /321
Length :
up to 5800 mm
Wire :
2.2*3.5 mm; 3*4.6 mm
End connection :
Thread couplings
Package :
Wooden box, Container
Wire shape :
V shape
OEM :
YES
Use :
Water well filter
Description

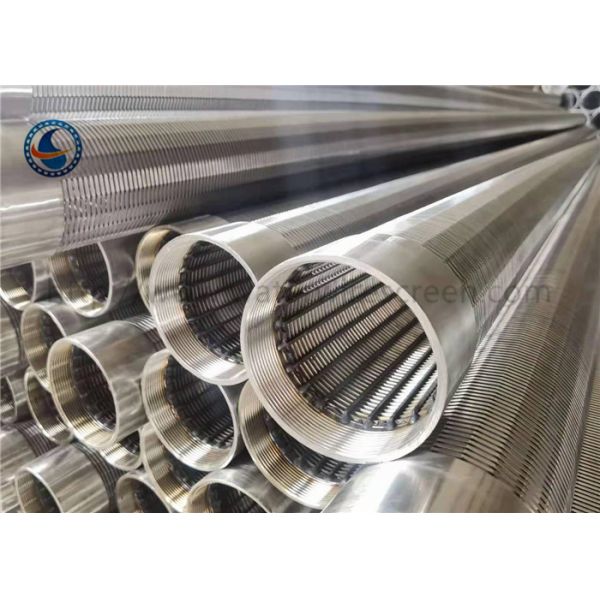

Stainless Steel Johnson Water Well Wire Screen Tube

Product Description:

Stainless Steel Johnson Water Well Wire Screen Tube is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Specificarion:

Profile wire

Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
Diameter(mm)

89mm ( Less than 1027mm)

 Length(mm) 5500mm, (Less than 6000mm long)
Open area

Large open area

 Efficiency High
Material

Stainless steel 304 316

monel, hastelloy inconel nickel etc..

 Function liquid filtering / liquid solid separation

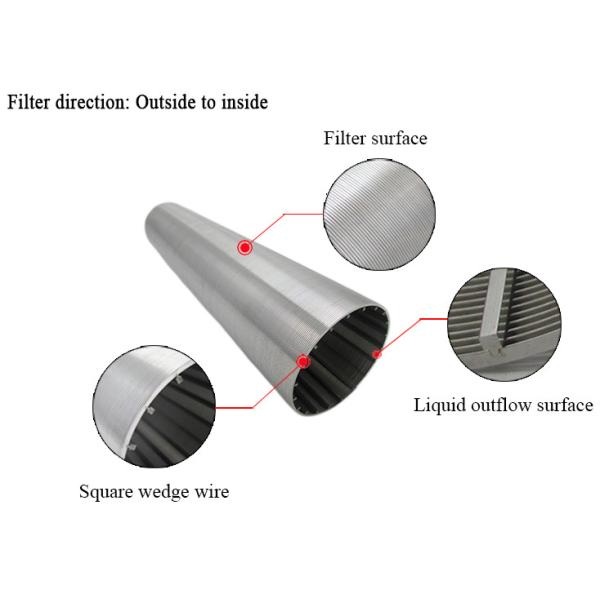

Quality control system Factory own control Cleaning way Filter from outside to inside, easy to clean
Support rods

Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00

 End connection Commen fittings, NPT ,BSP end fittings, calculate price seperately
Min slot size

50 micron

 Thickness 3-10mm
Length

5500mm

 Filter Rating up to 90%
Color

Silver(metal original color)

 Technique Belgium welding

Characteristic:

Stainless Steel Johnson Water Well Wire Screen Tube have superior open area due to their continuous slot openings. The benefits of which will :


• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Use:

water well

water supply systems

Refining & petrochemical

Filter equipment

Drum Filter

Sand control

OEM service:

We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

Pictures:

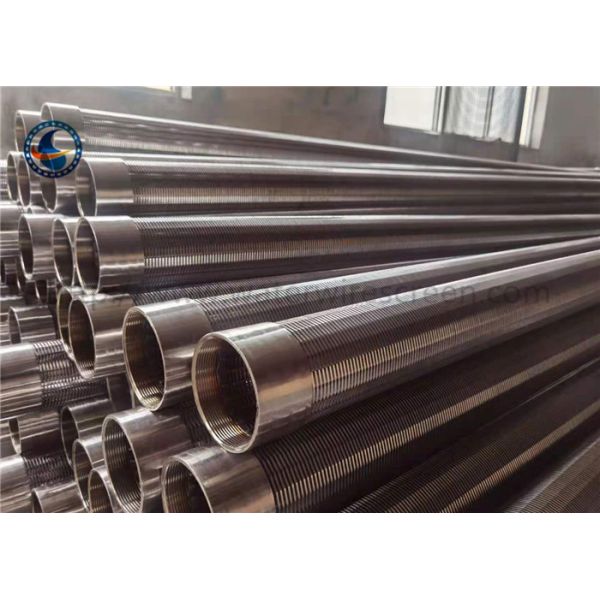

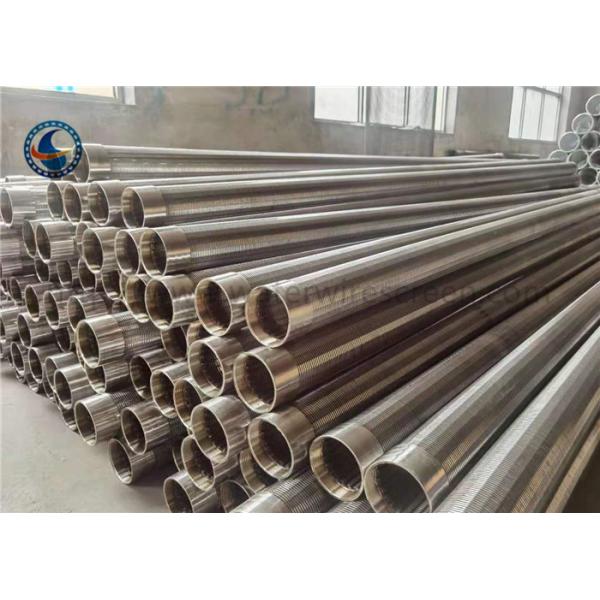

Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen

Stainless Steel Johnson Tube Slot 60 80 Water Wire ScreenStainless Steel Johnson Tube Slot 60 80 Water Wire Screen

Stainless Steel Johnson Tube Slot 60 80 Water Wire ScreenStainless Steel Johnson Tube Slot 60 80 Water Wire ScreenStainless Steel Johnson Tube Slot 60 80 Water Wire Screen

Stainless Steel Johnson Tube Slot 60 80 Water Wire ScreenStainless Steel Johnson Tube Slot 60 80 Water Wire ScreenStainless Steel Johnson Tube Slot 60 80 Water Wire Screen
