304 Stainless Steel Wedge Wire Screen Slot 40 60 80
304 Stainless Steel Wedge Wire Screen Slot 40 60 80
304 Stainless Steel Wedge Wire Screen Slot 40 60 80
304 Stainless Steel Wedge Wire Screen Slot 40 60 80
Specifications
Brand Name :
Heng Yuan
Model Number :
HY005
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Package :
Woden box, Container
Slot size :
1.0 mm
Material :
Low carbon galvanized
Diameter :
10-3/4",273mm
Length :
5.8M
Wire :
2.2*3.5mm; 3*4.6mm
End connection :
Wleded rings
Description

Factory Price 304 Stainless Steel Wedge wire screen Slot 40 60 80

Product Description:

Hengyuan Factory Price 304 Stainless Steel Wedge wire screen Slot 40 60 80 also be named :

Vee-Wire screen pipe,Continuous slot Vee-wire screen tube,Wire wrapped screen,Wire wound screen,water filter.

Related products :

v wire water well screens , wire wrapped screens pipe , Johnson Screen , welded wedge wire screen , reversed slot screen , continuous slot pre-pack , water filter , screen cylinders , stainless steel slot tube , reverse rolled screen , strainer pipe , continuous slot wire wrap well screens , pipe base well screen , ribbed-type wire wrapped screen , stainless steel or low carbon galvanized or mild steel wire screen , wire wrapped liner , woven wedge wire screen , slot wire screen tube , well screen , strainer screens , well point screens , oil screen tube , etc

Specificarion:

Profile wire

Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
Diameter(mm)

89mm ( Less than 1027mm)

 Length(mm) 5500mm, (Less than 6000mm long)
Open area

Large open area

 Efficiency High
Material

Stainless steel 304 316

monel, hastelloy inconel nickel etc..

 Function liquid filtering / liquid solid separation
Quality control system Factory own control Cleaning way Filter from outside to inside, easy to clean
Support rods

Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00

 End connection Commen fittings, NPT ,BSP end fittings, calculate price seperately
Min slot size

50 micron

 Thickness 3-10mm
Length

5500mm

 Filter Rating up to 90%
Color

Silver(metal original color)

 Technique Belgium welding

Characteristic:

Wedge Wire Screen Pipe Filter Mesh Stainless Steel Wire Johnson screen have superior open area due to their continuous slot openings. The benefits of which will :


• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Use:

water well

water supply systems

Refining & petrochemical

Filter equipment

Drum Filter

Sand control

OEM service:

We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

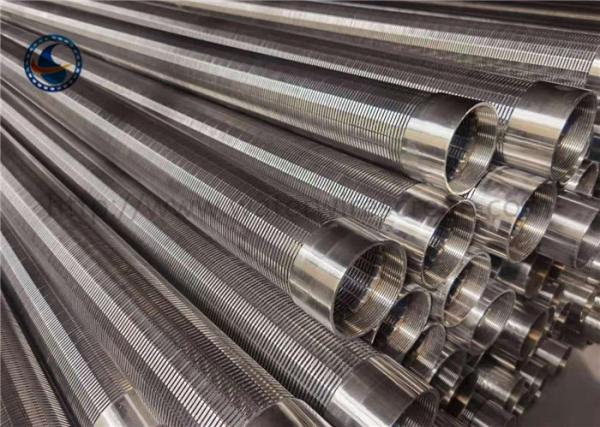

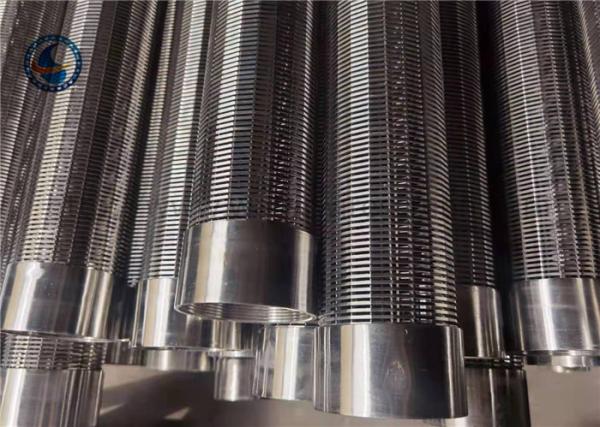

Pictures:

304 Stainless Steel Wedge Wire Screen Slot 40 60 80304 Stainless Steel Wedge Wire Screen Slot 40 60 80

304 Stainless Steel Wedge Wire Screen Slot 40 60 80

304 Stainless Steel Wedge Wire Screen Slot 40 60 80
