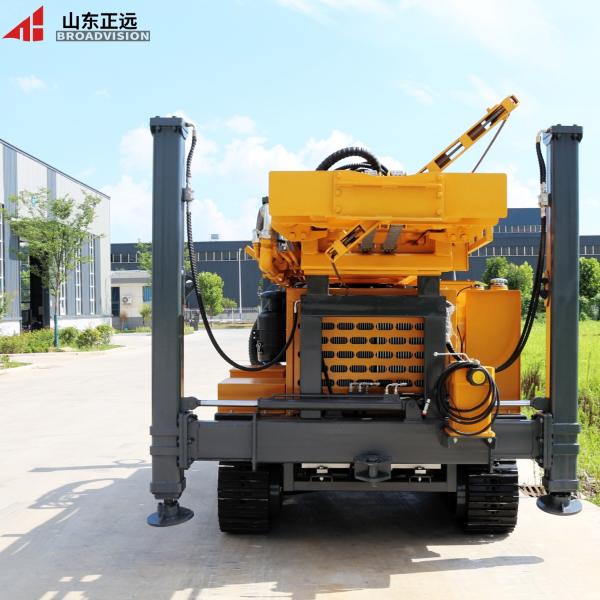

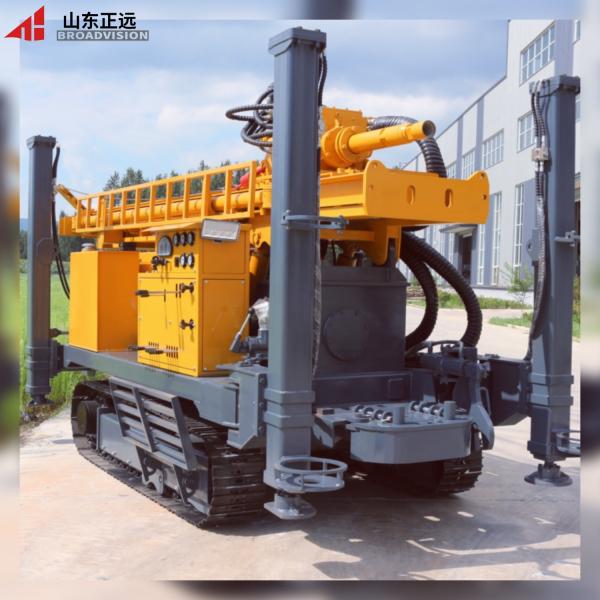

Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment
Specifications
Brand Name :
ZHENGYUAN
Model Number :
ZB350S
Place Of Origin :
Shandong Province
Certification :
ISO/CE
MOQ :
1 set
Packaging Details :
WOODEN CASE OR OTHER
Delivery Time :
10-25 DAYS
Payment Terms :
tt,L/C,D/P,T/T,MoneyGram,Western Union
Supply Ability :
25 sets / month
Place of Origin :
CHINA
Price :
$31500-$38900
Gas Consumption :
16-55m³/min
Rotation Torque :
7500Nm, 983 N.m, 4200N.m, 3400mm
Optional Accessories :
70KW
Operating Pressure :
Up To 10 Bar
Overall Dimension :
5.6m×2m×2.5m
Power :
73Kw
Hole Diameter :
140-305mm
Air Consumption :
Up To 2000 Cfm
Description

Product Description:

ZB350S Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

ZB350S crawler mounted drilling rig can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling,DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
ZB350S deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

Features:

>>The drilling rig can use air DTH Hammer drilling and mud drilling.
>> Centralized control console is suitable for each manipulation and control.Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
>> The main drive system, the transfer case gearbox, double-winch unit, mud pump,turntable,drilling tower, feed system are setup on the chassis.
>> It's a hydraulicrotary drilling rig with directional circulation. It can equipped with BW250 mud pump which adopts the slurry as the washing fluid and can drill on clay,sand and rock if it is equipped with suitabledrilling bit. >> The power of drilling rig comes from a diesel engine,91kw Yuchai engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
>> The rotary head,have two gear,rotation speed is 80-160rpm stepless adjustment and the rotary torque is 8500Nm.
>> The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
>> It can set up a generator which is convenient to welding or illuminate for work at night.
>> Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
>> The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
>> The tools winch winch is used for auxiliary lifting and casin.
>> The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
>> Competitive in price, low cost of maintain.

Technical Parameters:

Technical parameters Unit ZB350S
Max drilling depth M 350
Drilling diameter mm 105-350
Air pressure Mpa 1.2-3.5
Air consumption m³/min 16-55
Drill pipe length m 3/6
Drill pipe diameter mm 89/102
Lifting force T 16
Fast lifting speed m/min 30
Fast feeding speed m/min 55
Max rotary torque Nm 8500/4250
Max rotary speed r/min 80/160
winch lifting force T 1.1/2.5
(Optional)
Jacks stroke m 1.5
Drilling efficiency
m/h		 10-35
Moving speed
Km/h		 2.5
Uphill angle slope 21°
Weight of the rig T 7.5
Size m 5.78*1.7*2.25
Engine / (Yuchai Power)
91KW
Working condition Unconsolidated formation and stone head
Drilling method Top drive hydraulic rotary and pushing hammer or mud drilling
Matched DTH hammer Medium and high air pressure series
Optional accessories Mud pump,Centrifugal pump,Generator,foam pump

Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment Down The Hole Pneumatic Drilling Rig Heavy Duty Pneumatic Earth Drilling Equipment

Support and Services:

Product Technical Support and Services for the Pneumatic Drilling Rig:

- Installation guidance and setup assistance

- Troubleshooting support for operational issues

- Maintenance and repair services

- Training programs for operators and maintenance personnel

- Access to online resources and manuals for reference

FAQ:

Q: What is the brand name of this Pneumatic Drilling Rig?

A: The brand name of this Pneumatic Drilling Rig is Shandong Zhengyuan.

Q: What is the model number of this Pneumatic Drilling Rig?

A: The model number of this Pneumatic Drilling Rig is ZB350S.

Q: Where is this Pneumatic Drilling Rig manufactured?

A: This Pneumatic Drilling Rig is manufactured in Shandong Province.

Q: What type of drilling activities is this rig suitable for?

A: The Pneumatic Drilling Rig model ZB350S is suitable for a wide range of drilling activities, including rock drilling, foundation drilling, and exploration drilling.

Q: Does this Pneumatic Drilling Rig come with any warranty?

A: For warranty-related inquiries, please refer to the warranty information provided by the manufacturer.
