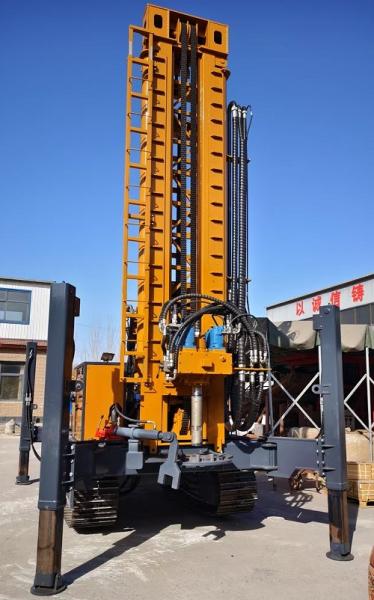

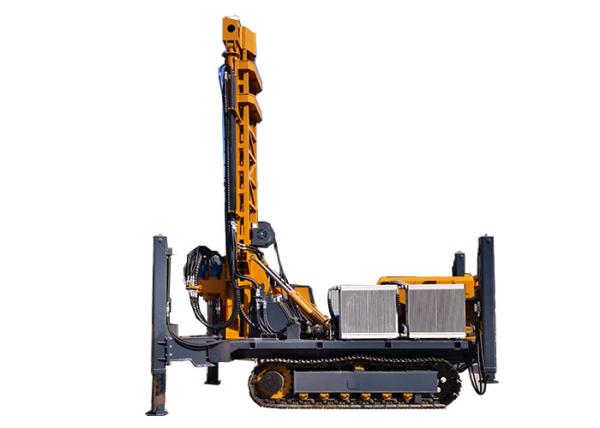

High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
Specifications
Brand Name :
SHITAN
Model Number :
ST-1000
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
1000set
Delivery Time :
5-8 workday
Packaging Details :
Wooden Box
Drill pipe length :
6m
Lifting force :
45T
Working wind pressure :
1.25-3.5Mpa
Adaptive conditions :
Loose layer and bedrock
Drilling Hole Diameter :
105-500mm
Drill pipe diameter :
102/114mm
Axial pressure :
6TDrilling Depth 800-1000m
Gas consumption :
45T
Engine :
242 KW six cylinder engine
Weight :
20T
Description
High Torque Hydraulic Compressor Drilling Machine With 102/114mm Drill Pipe
Product Specifications
Drill pipe length 6m
Lifting force 45T
Working wind pressure 1.25-3.5Mpa
Adaptive conditions Loose layer and bedrock
Drilling Hole Diameter 105-500mm
Drill pipe diameter 102/114mm
Axial pressure 6T
Drilling Depth 800-1000m
Gas consumption 45T
Engine 242 KW six cylinder engine
Weight 20T
Product Overview

The ST1000 drilling rig is engineered for large-scale industrial projects requiring depth, efficiency and adaptability. Equipped with a high-performance diesel engine, this rig operates effectively in non-grid conditions while delivering the power needed for deepwater well drilling applications.

Technical Parameters
Product Model ST1000
Power 242 KW six cylinder engine
Drilling Rod Diameter 105-500mm
Drilling Depth Max 1000m
Soil conditions Soft soil layer, Rock layer
Drill pipe length 6m
Drilling Hole Diameter 114mm
Size 6.2m×2.2m×2.5m
Weight 20T
Drilling method Top drive hydraulic rotation and propulsion, DTH impactor or Mud drilling
Key Features
  • Deep Drilling Capability - Reaches depths of 800-1000 meters, ideal for demanding exploration tasks.
  • Wide Hole Diameter Range - Handles drilling from 105-500mm, adaptable to various geological conditions.
  • Heavy-Duty Engine - 242 KW six-cylinder diesel engine ensures consistent power output.
  • Robust Construction - 20-ton weight provides exceptional stability during operation.
Package Contents
  • 1000m Pneumatic Drill Rig
  • Instruction Manual
  • Drill Bits/Drill pipe, Tools and accessories
Shipping Information
  • Product ships within 3-7 business days after order confirmation
  • Shipping cost calculated based on delivery address
  • Delivery time varies by destination
  • Tracking information provided upon shipment
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
