XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
Specifications
Brand Name :
ShiTan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
1500-3000$
Payment Terms :
T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7 days
Packaging Details :
Standard Export package
Product Name :
XY-1A Soil Test Drilling Machine
Drilling Depth :
150 meters
Drill pipe diameter :
42mm
Power Type :
Diesel Power
Machine Weight :
480kg
Application :
water well,railways, core drilling
Dimension(L*W*H) :
1620*970*1560mm
Spindle speed :
1010、790、470、295、140（r/min）
Rated pressure :
12.5Mpa
Model(diesel engine） :
1105
Rated power :
18KW
WEIGHT :
AROUND 600KG
Description

XY-1A Soil Test Drilling Machine

Product Introdution

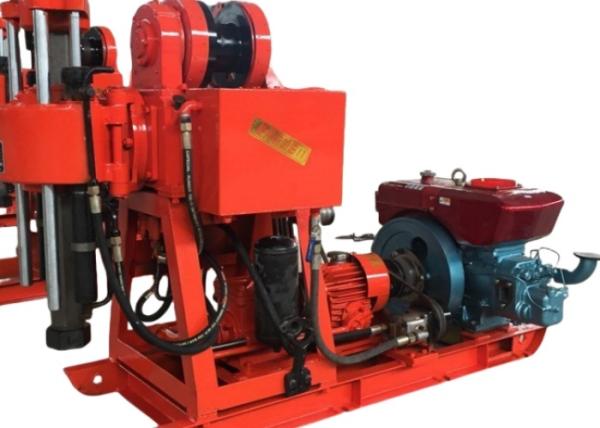

Xy-1a drilling rig is a high-speed portable drilling rig with oil pressure feed. In order to make the machine more widely applicable and meet the needs of different users,The drilling rig, water pump and diesel engine are installed on the same base,it is an advanced, robust, and efficient piece of equipment designed for a variety of soil testing applications. This drilling rig is engineered to provide precise and reliable core samples, making it an essential tool for geotechnical engineers, environmental consultants, and construction professionals who are involved in the assessment and analysis of soil properties for various projects. With a drilling hole diameter capability of 100mm, this machine is well-suited for obtaining clear and uncontaminated soil samples, ensuring accurate testing results.

Product Tech Data

Video outgoing-inspection Provided
Machine Type Drilling Equipment
Usage water well drilling
Name Core drill rig
MOQ 1 pcs
Local Service Location None
After-sales Service Provided Video technical support
Drilling angle 90 °~75 °
Spindle speed 17, 35, 75, 151r/min
Tightrope caliber 12.5mm
Tightrope cubic measure 35mm

Product Advantage

1. It has an oil pressure feeding mechanism, which improves the drilling efficiency and reduces the labor intensity of workers.

2. The drilling rig is equipped with upper ball clamp clamping mechanism and hexagonal active drill pipe, which can reverse the rod without stopping, with high work efficiency, safety and reliability.

3. It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.

4. The handle is centralized and easy to operate.

5. The drilling rig has compact structure, small volume, light weight, easy disassembly and handling, and is suitable for working in plain and mountainous areas.

Product Main Applications

1. The drilling rig is applicable to the general survey and exploration of solid deposits, engineering geological survey and other boreholes, as well as various concrete structure inspection holes.

2. According to different geological structures, diamond, alloy and steel bits can be selected for drilling.

3. When the final hole is 75mm and 46mm respectively, the rated drilling depth is 100m and 180m respectively. The maximum depth shall not exceed 110% of each drilling depth, and the allowable opening diameter is 150mm.

XY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm PipeXY-1A Diesel Soil Test Drilling Machine 150m Depth 42mm Pipe
