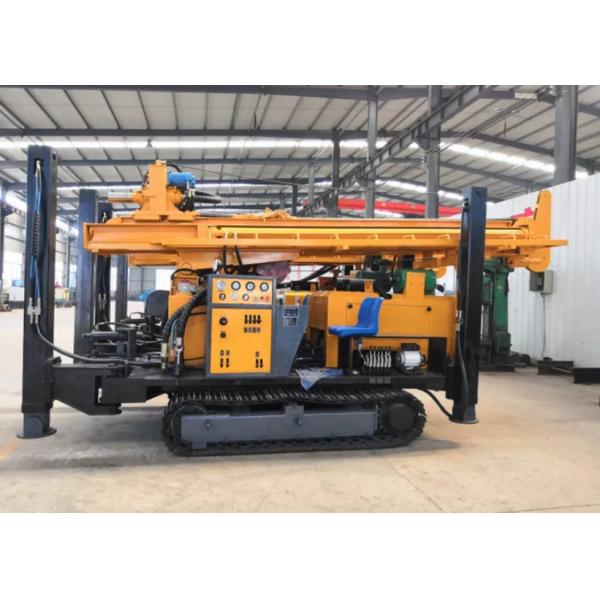

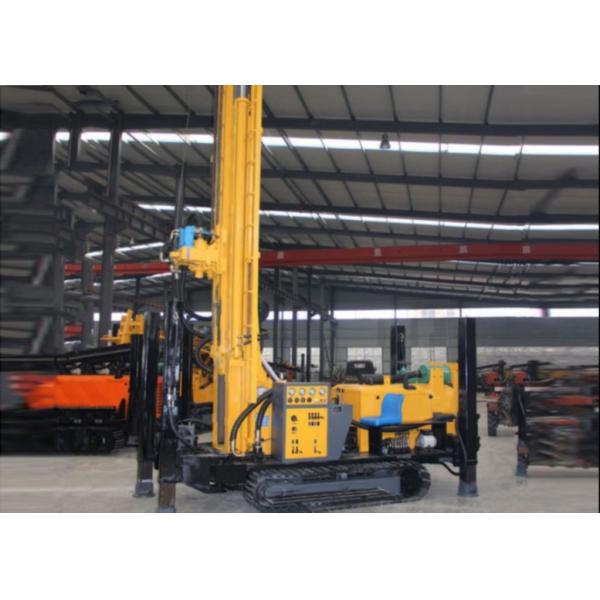

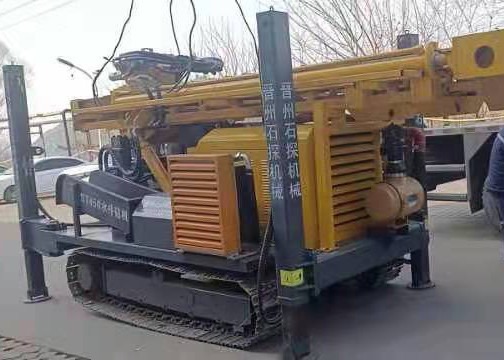

Diesel Engine 91kw Water Well Driling Rig Hydraulic Track Walking
Diesel Engine 91kw Water Well Driling Rig Hydraulic Track Walking
Diesel Engine 91kw Water Well Driling Rig Hydraulic Track Walking
Diesel Engine 91kw Water Well Driling Rig Hydraulic Track Walking
Specifications
Brand Name :
Shitan
Model Number :
ST350 trailer type drilling rig
Place of Origin :
Jinzhou ,Hebei Province
Certification :
ISO
MOQ :
1 set
Price :
customized quotation list
Packaging Details :
wooden box
Delivery Time :
7 days after payment
Payment Terms :
TT,Western union
Supply Ability :
1000 or 2000 set per year
Fast forward speed :
40m/min
Drilling Diameter :
105-305mm
High leg travel :
1.35m
Footage efficiency :
10-35m/h
Drill rod length :
3m
Lifting force :
24T
Weight :
9T
Walking speed :
2.5km/h
Description

Product Description:

Water and air drilling rig is an efficient and multifunctional drilling equipment. It is mainly suitable for drilling water wells,agricultural irrigation wells, geothermal air conditioning holes and other wells, especially suitable for water intake projects in mountainous areas and rock formations. . The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty in drilling the soil layer with air DTH hammer, and the construction problem of the rotary drilling rig in the hard rock layer, gravel and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drilling and air drilling.

Features:

  • The drilling rig is mainly mechanically driven, and the others are hydraulically driven,
  • effectively using power. The overall power loss is small and the drilling cost is low.
  • The drilling rig has 2 reverse speeds for easy handling of accidents.
  • The drilling rig adopts a mechanical power head with a long-stroke double-speed mechanism, and the power head has a stroke of 3800mm, which is used to improve the drilling efficiency and reduce the occurrence of drill blocking and burning accidents.
  • The drilling rig uses double oil pumps for oil supply, a single pump is used when drilling, and a double pump is used for confluence when lifting and lowering the drill; the power loss is small and the auxiliary time is short.
  • The drilling rig has advanced structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
  • The tracked chassis is adopted, and the outrigger cylinder stroke is 1.5m, which can be loaded automatically, which is convenient for transportation.
  • The drilling rig reserves some functional interfaces in the hydraulic system, which can be expanded according to the technological requirements of different users
  • Tractor pneumatic water well drilling rigs can be equipped with tractor chassis of different horsepower, drilling tools of different specifications, air compressors, down-the-hole impactors and air ducts, etc. according to user needs. Various specifications are applicable.

Technical Parameters:

Model SHITAN350
Adaptive Conditions Loose Layer And Bedrock
Maximum Rotation Speed 85/170r/min
Footage Efficiency 10-35m/h
Drilling Method Water Mud /Air Compressor
Weight 9T
Lifting Speed 20m/min
Engine Yuchai 91KW
Drilling Equipment Set Borewell Drill Rig
Climbing Degree 30
Lifting Force 24T
Sales Area Africa Southeast Asia Middle East Asia America Europe


Diesel Engine 91kw Water Well Driling Rig Hydraulic Track WalkingDiesel Engine 91kw Water Well Driling Rig Hydraulic Track WalkingDiesel Engine 91kw Water Well Driling Rig Hydraulic Track WalkingDiesel Engine 91kw Water Well Driling Rig Hydraulic Track Walking
