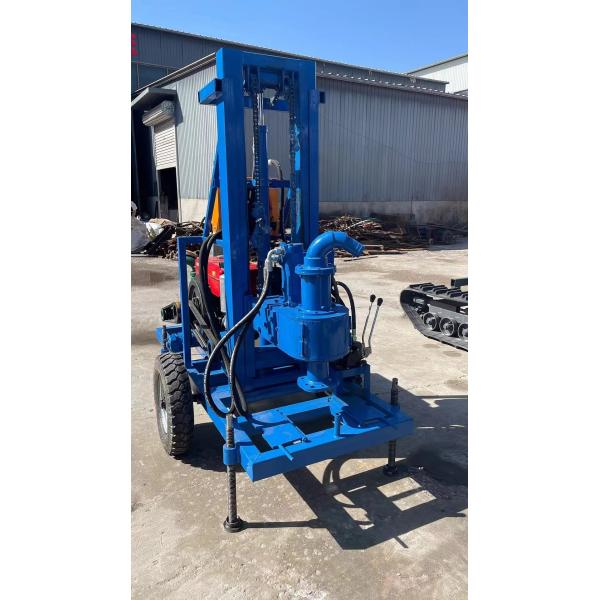

Little Easy Movement Tractor Borewell Drilling With Hydraulic System
Little Easy Movement Tractor Borewell Drilling With Hydraulic System
Little Easy Movement Tractor Borewell Drilling With Hydraulic System
Little Easy Movement Tractor Borewell Drilling With Hydraulic System
Specifications
Brand Name :
Shitan
Model Number :
Small hydraulic water well drilling rig
Place of Origin :
Jinzhou ,Hebei Province
Certification :
ISO
MOQ :
1 set
Price :
customized quotation list
Packaging Details :
wooden box
Delivery Time :
7 days after payment
Payment Terms :
TT,Western union
Supply Ability :
1000 or 2000 set per year
Tower height :
2.8m
Drilling Method :
Water Mud
Drilling Diameter :
100-300mm
Drilling Depth :
100m
Engine :
20kw
Key Words :
Water Well Drilling Rig
lifting capacity :
20Kn
Overall dimension :
2100*900*1700mm
Description
Little Easy Movement Tractor Borewell Drilling With Hydraulic System
Product Specifications
Attribute Value
Tower height 2.8m
Drilling Method Water Mud
Drilling Diameter 100-300mm
Drilling Depth 100m
Engine 20kw
Lifting capacity 20Kn
Overall dimension 2100*900*1700mm
Compact Hydraulic Water Well Drilling Rig

Our small hydraulic water well drilling rigs are portable drilling equipment designed for household water supply, agricultural irrigation, and geological exploration. Their compact size, flexible operation, and powerful performance make them ideal for work in confined or remote areas.

Key Features:
  • Compact and Lightweight: Weighing approximately 1 ton, the rig can be transported by tractor or small truck, adapting to complex terrains including mountains and farmland.
  • Hydraulic Drive System: Powered by a hydraulic motor capable of drilling through clay, gravel, and medium-hard rock layers. The stable hydraulic system reduces jamming risks while improving drilling efficiency.
  • Versatile Drilling Tools: Equipped with auger drills, alloy drill bits, and impact hammers to adapt to various geological conditions.
  • Operator-Friendly: Designed for single-person operation with intuitive controls.
  • Eco-Friendly Operation: Low energy consumption with minimal noise output, meeting environmental requirements for fieldwork.
Technical Specifications
Parameter Value
Product Name Small Hydraulic Water Well Drilling Rig
Lifting Capacity 20Kn
Engine Power 20kw
Rotary Speed Positive/Negative 80
Drill Rod Length 1.5m
Overall Dimension 2100*900*1700mm
Drilling Depth 100m
Drilling Diameter 100-300mm
Support and Services

Our water well drilling rig comes with comprehensive technical support and services to ensure successful drilling operations. We provide:

  • Expert guidance throughout installation and operation
  • Operator training for optimal equipment performance
  • Maintenance and repair services
  • Remote troubleshooting and onsite support
  • Availability of spare parts for minimal downtime
Little Easy Movement Tractor Borewell Drilling With Hydraulic System Little Easy Movement Tractor Borewell Drilling With Hydraulic System Little Easy Movement Tractor Borewell Drilling With Hydraulic System Little Easy Movement Tractor Borewell Drilling With Hydraulic System Little Easy Movement Tractor Borewell Drilling With Hydraulic System
