High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
Specifications
Brand Name :
ShiTan
Model Number :
BW850-2
Certification :
ISO9001/CE
Place of Origin :
Hebei Province, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
10000sets
Delivery Time :
Within 3-5 Days
Packaging Details :
Wooden
Type :
Horizontal double cylinder reciprocating double action piston pump
Selling Units :
Single item
Origin :
Hebei, China
Shape size (mm) :
3018*1120*2050
Weight (kg) :
3100
Color :
Blue/Green/Grey, etc
Customization :
Supported
Sales Region :
Europe, America, Asia, Africa and other countries and regions
Description

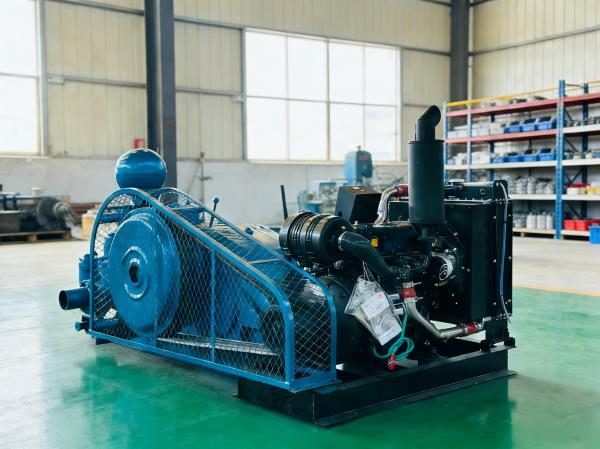

High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
The BW850 mud pump is a horizontal double-cylinder reciprocating double-acting piston pump, suitable for construction operations such as geological exploration and pile foundation engineering. It can transport media like mud and clean water. With three cylinder diameter options to match varying flow rate and pressure requirements, it delivers powerful performance and stable operation, meeting the needs of mud transportation and borehole wall protection in various engineering projects.
BW850 Mud Pump Key Features
  • Robust structure with solid 3100kg counterweight, ensuring excellent anti-vibration performance during operation
  • Integrated molded body with standardized dimensions, easy installation, and convenient adaptation to engineering sites
  • Suitable for a wide range of applications such as drilling, exploration, and pile foundation, with strong practicality
  • Professional mud pumping design, effectively achieving engineering wall protection and mud circulation
  • Industrial-grade configuration, wear-resistant and durable, suitable for harsh outdoor construction environments
Technical Specifications
Specification Details
Type Horizontal double cylinder reciprocating double action piston pump
Flow (L/min) 850; 600; 350
Cylinder diameter (mm) 140; 130; 95
Working Medium Mud, Water, Cement Slurry
Power Electric/diesel engine
Outlet pipe diameter (mm) 64
Inlet pipe diameter (mm) 152

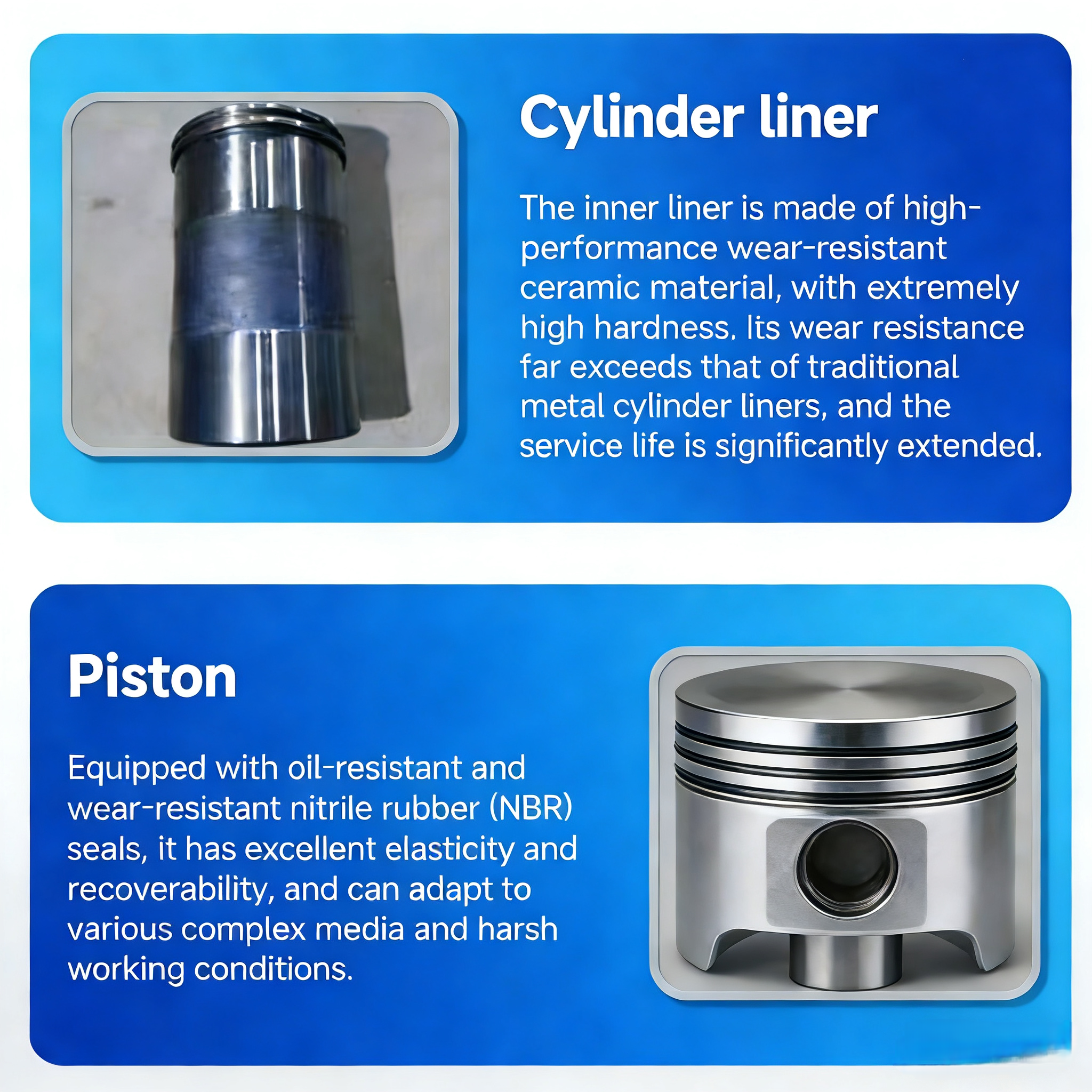

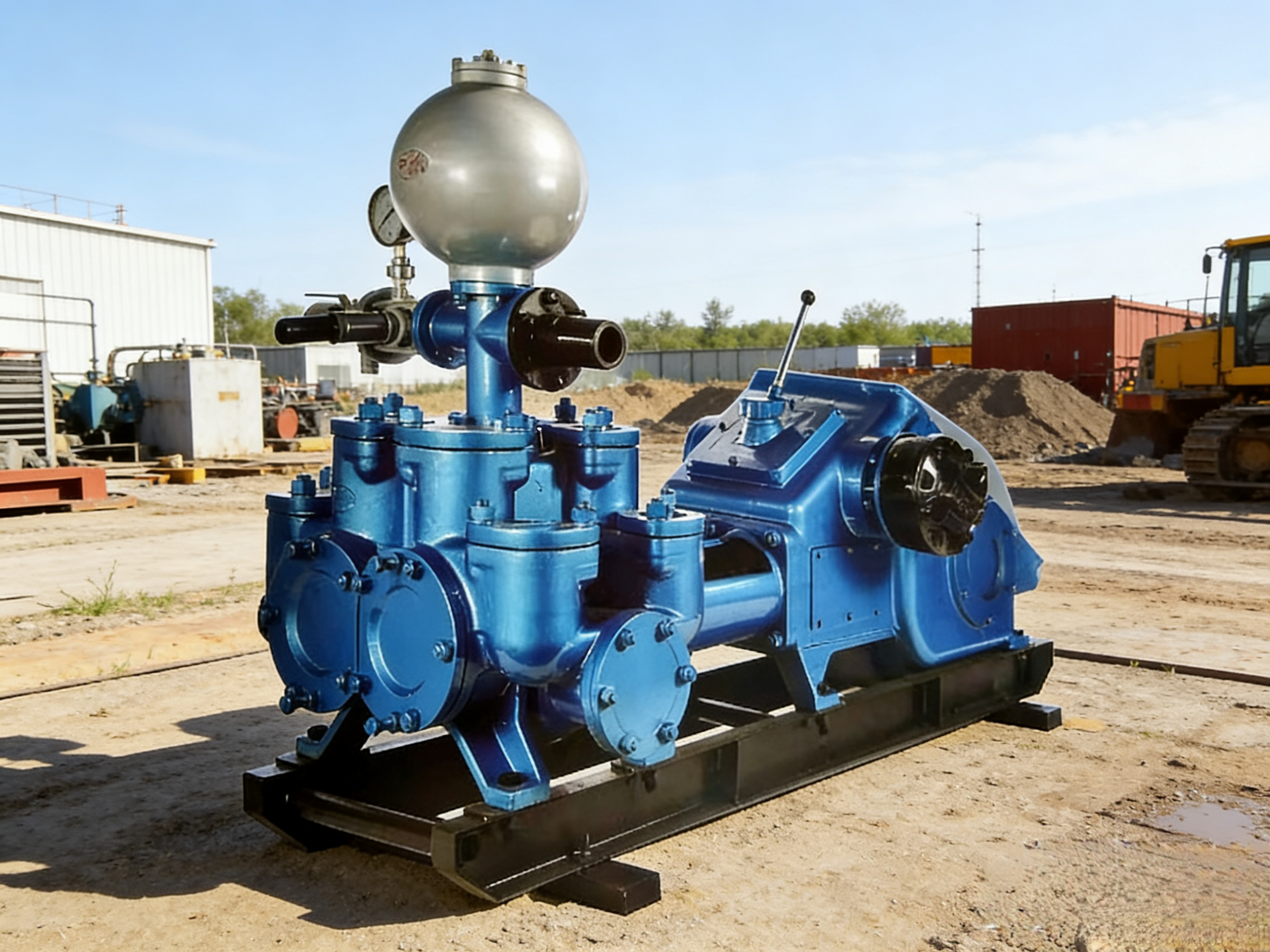

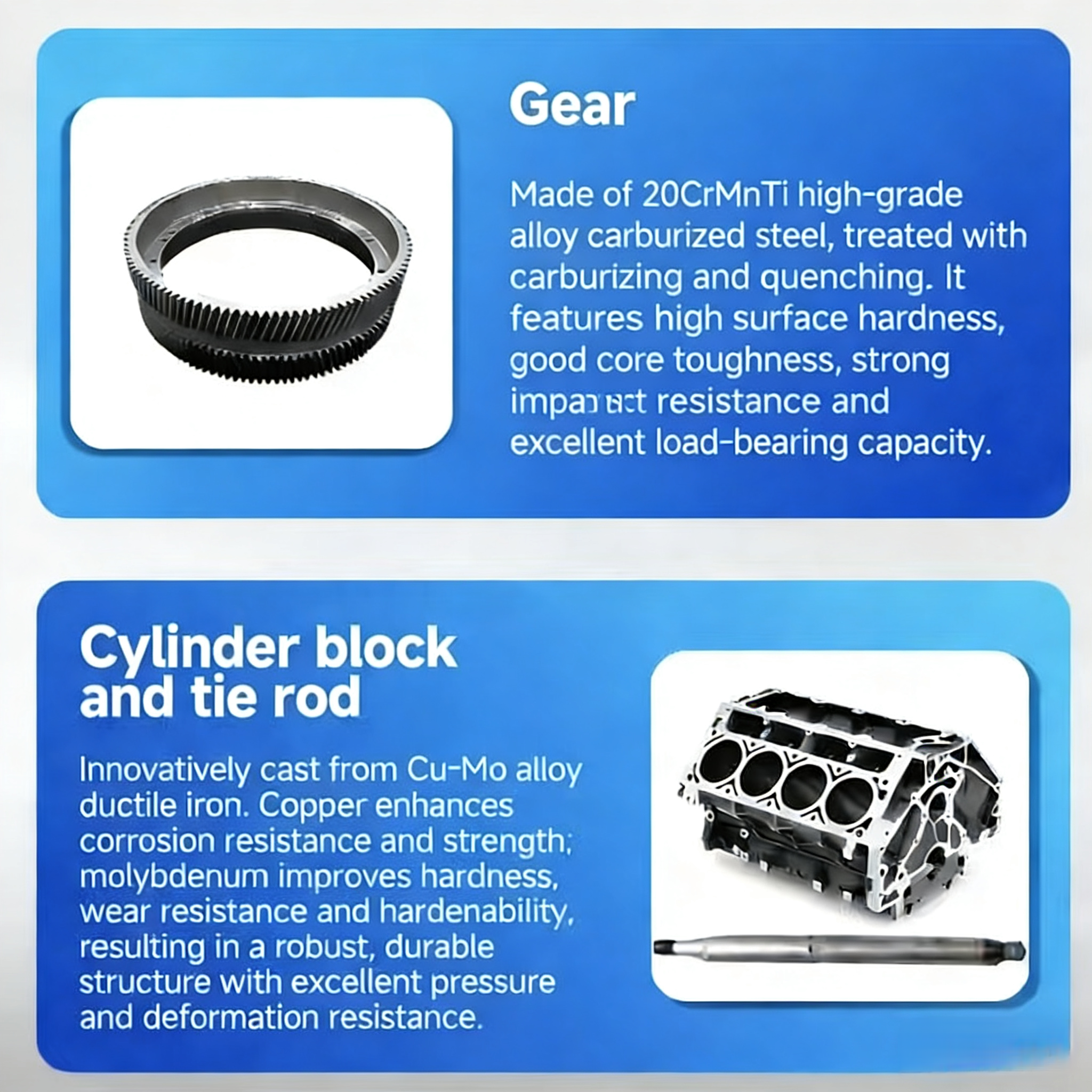

Detail Display
High Pressure BW850 Mud Pump 850L/min For Geological Exploration GroutingHigh Pressure BW850 Mud Pump 850L/min For Geological Exploration GroutingHigh Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
application
High Pressure BW850 Mud Pump 850L/min For Geological Exploration Grouting
Transportation and packaging

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
