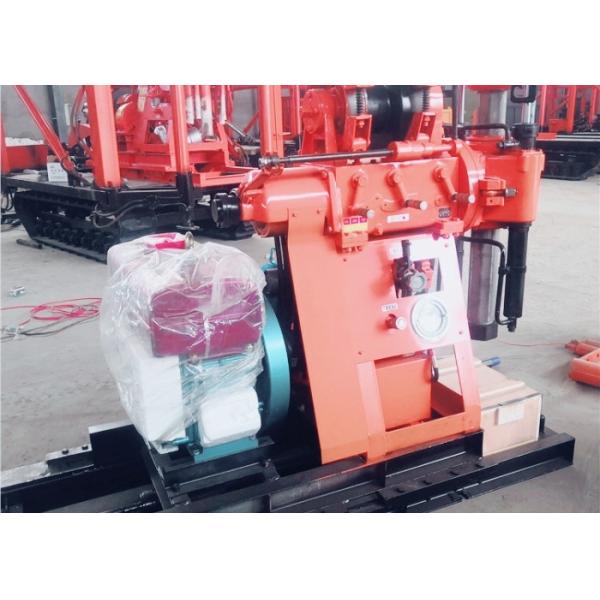

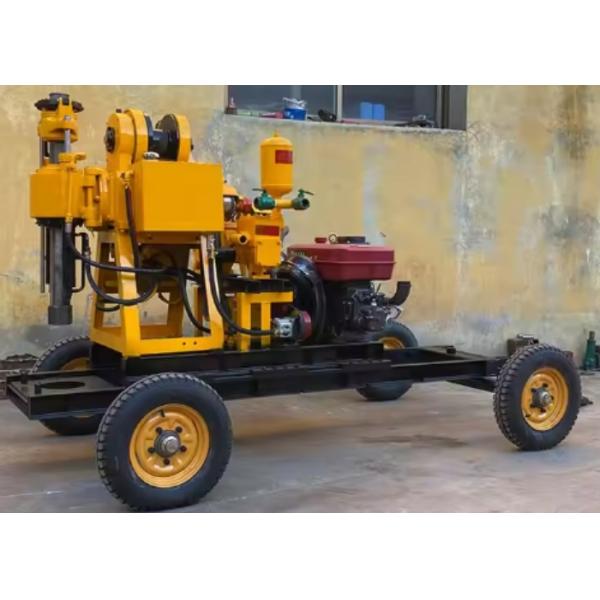

Hydraulic Rotary Geological Drilling Rig For Architecture/Soil Exploration/Waterwell
Hydraulic Rotary Geological Drilling Rig For Architecture/Soil Exploration/Waterwell
Hydraulic Rotary Geological Drilling Rig For Architecture/Soil Exploration/Waterwell
Hydraulic Rotary Geological Drilling Rig For Architecture/Soil Exploration/Waterwell
Specifications
Brand Name :
Shitan
Model Number :
GK 200
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
customized quotation list
Payment Terms :
TT,Western union
Supply Ability :
1000 or 2000 set per year
Delivery Time :
7 days after payment
Packaging Details :
wooden box
Key Words :
200 Meters Water/ Borehole Drilling Rig
Product Name :
GK 200 Water Well Drilling Rig
Lifting Capacity :
15KN
Drilling Rod :
Φ50mm,42mm
Drilling Method :
Mud Drilling
Drilling Depth :
200m
Mud Pump :
BW 160 Single Mud Pump
Customizable :
Yes
Description

Product Description

This drilling rig offers two power options—electric motor and diesel engine—allowing users to make a flexible choice based on on-site power conditions. The hydraulic system utilizes a gear oil pump with a rated pressure of 12.5 MPa, ensuring stable and efficient drilling operations. The hoist features a lifting force of 15 kN and a wire rope capacity of 35 meters, meeting the requirements for deep-hole operations. With its compact dimensions, the unit is well-suited for construction in confined spaces and is widely applied in fields such as geological sampling and engineering exploration.

Features

Dual Power Configuration: 11 kW Electric Motor or 16.2 kW Diesel Engine
Motor Speed: 1460 rpm; Diesel Engine Speed: 2200 rpm
Gear Oil Pump Rated Speed: 2000 rpm
Hydraulic System Rated Pressure: 12.5 MPa, delivering robust power
Oil Pump Displacement: 20 L/rev, ensuring stable oil supply

Technical Parameters

Technical Parameters Specifications
Product Coring Drilling Rig
Key Words Borewell Drill Rig, Hydraulic Water Well Drilling Rig
Drilling Depth 0-200m
Drilling Diameter 0-200mm
Weight Around 600kg
Mud Pump BW 160 Single Mud Pump
Drilling Rod Φ50mm, 42mm
Drilling Rod length 1/2/3m

FAQ

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Shitan.
  • Q: What is the model number of this product?
  • A: The model number of this product is GK 200.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Jinzhou, Hebei Province.
  • Q: Is this product certified?
  • A: Yes, this product is certified with ISO.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 set.
  • Q: How much does this product cost?
  • A: The price of this product is based on a customized quotation list.
  • Q: How is this product packaged?
  • A: This product is packaged in a wooden box.
