10-35m/h Footage Efficiency Drilling Equipment For Water Well
10-35m/h Footage Efficiency Drilling Equipment For Water Well
10-35m/h Footage Efficiency Drilling Equipment For Water Well
10-35m/h Footage Efficiency Drilling Equipment For Water Well
Specifications
Brand Name :
ShiTan
Model Number :
ST-300-TIRE
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,T/T,D/A,Western Union,MoneyGram,Cash
Supply Ability :
500sets/year
Delivery Time :
15-25days
Packaging Details :
Plastic film and Standard export wooden box
Drilling diameter :
105-305mm
walking speed :
2.5km/h
Drilling Rods :
Drilling Rods
Maximum turning torque :
8900
Maximum rotation speed :
85/170r/min
Overall dimension :
4.8m×1.9m×2.35m
Adaptive conditions :
Loose layer and bedrock
Engine :
Yuchai 78KW
Description
10-35m/h Footage Efficiency Drilling Equipment For Water Well
Product Description
The ST series well drilling rig is a lightweight, efficient, and versatile drilling device designed for water wells, irrigation wells, geothermal wells, and air holes. Its compact design makes it particularly suitable for water-related engineering projects in mountainous regions and rock formations.
Key Features
  • Crawler-type chassis design for flexible mobility and easy transfers
  • Integrated control system with simple operation and organized layout
  • Automatic rod change function reduces auxiliary time and increases drilling efficiency
  • Compact design for easy transportation and quick deployment
  • Dual-function capability with both down-the-hole hammer and mud drilling modes
  • Robust construction using high-quality materials for extended service life
  • Key components from internationally renowned brands for reliability
Technical Specifications
Attribute Specification
Max. Drilling Depth 300 m
Hole Diameter Range 105 - 305 mm
Drilling Method Top Drive Hydraulic Rotation
Compatible Methods DTH Hammer / Mud Drilling
Engine Power Yuchai 78 KW Diesel
Operating Air Pressure 1.25 - 3.5 MPa
Air Consumption 16 - 55 m³/min
Feed Pressure 4 T
Footage Efficiency 10 - 35 m/h
Adaptive Geology Loose Layer & Bedrock

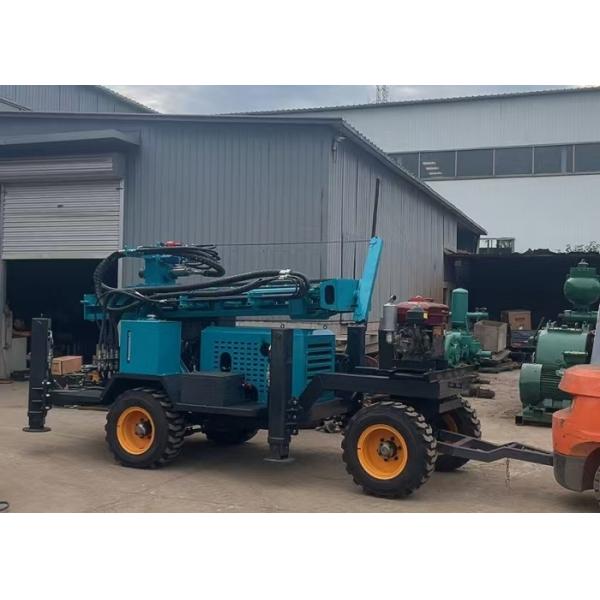

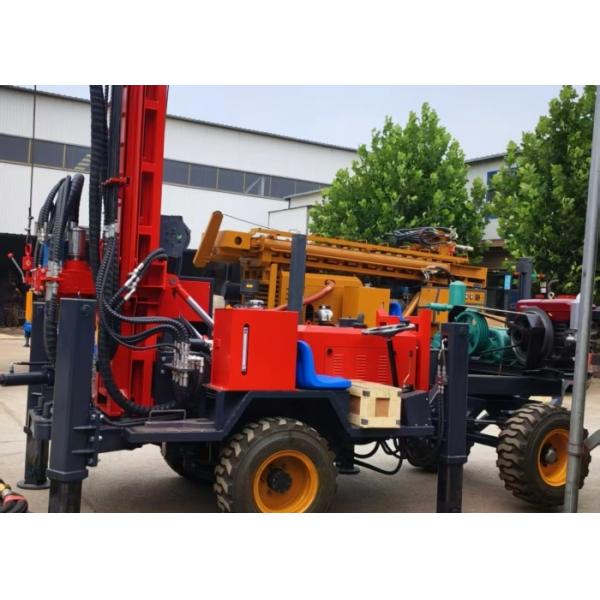

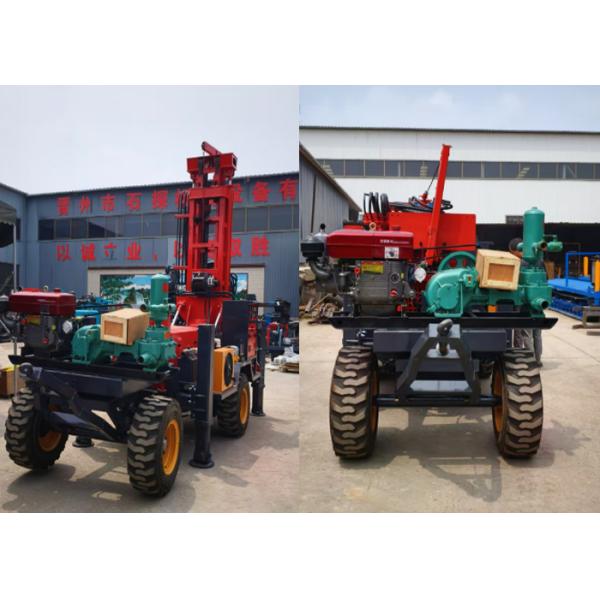

Product Images
10-35m/h Footage Efficiency Drilling Equipment For Water Well 10-35m/h Footage Efficiency Drilling Equipment For Water Well 10-35m/h Footage Efficiency Drilling Equipment For Water Well 10-35m/h Footage Efficiency Drilling Equipment For Water Well 10-35m/h Footage Efficiency Drilling Equipment For Water Well
