Specifications
Brand Name :
ShiTan
Model Number :
ST-300
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
USD10000-20000/SET
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500sets/year
Delivery Time :
15-20days
Packaging Details :
Plastic film and Standard export wooden box
Name :
Deep water well drilling rig
Fast forward speed :
40m-min
Maximum rotation speed :
85/170r/min
Drilling Depth :
300m /985ft
Drilling Hole Diameter :
105-305mm
Drill pipe length :
6m
Drill pipe diameter :
89mm/102mm
Lifting force of small auxiliary winch :
1.2T
Description

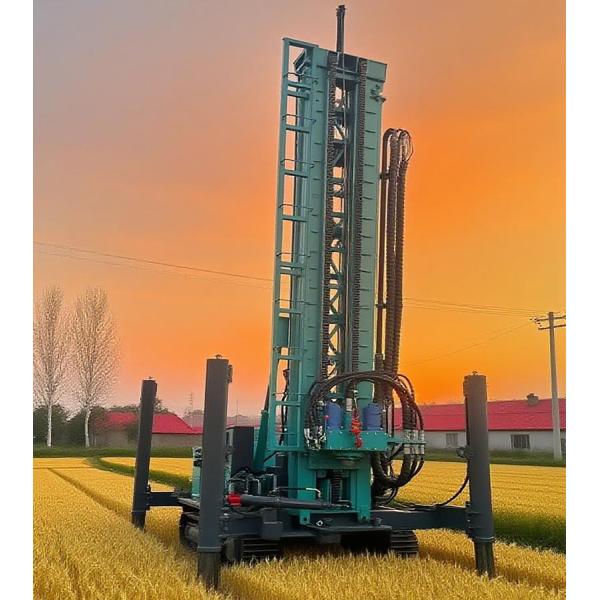

Mobile Rock Drill Rig Equipment For Water Well Digging
Product Description

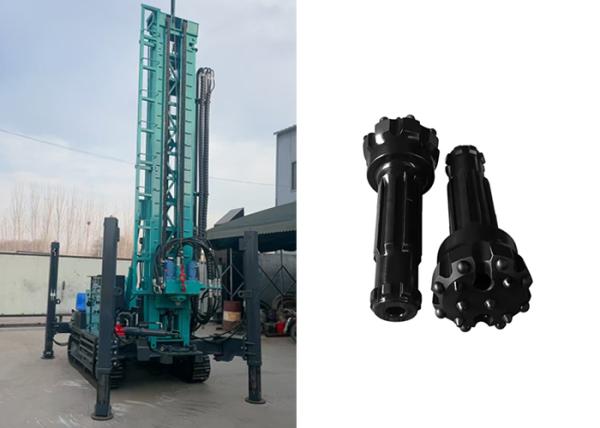

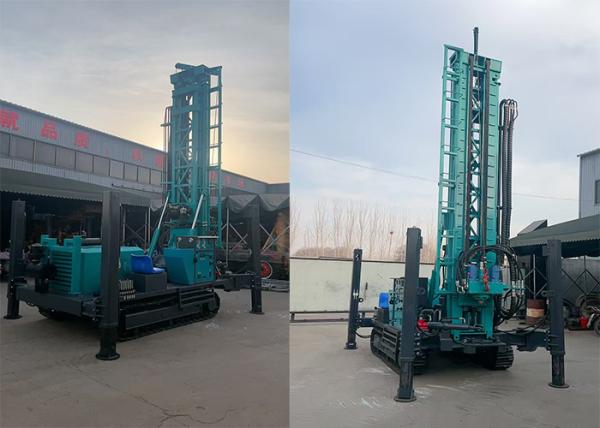

Deep Hole Water Well Drill RigFeatures:
1)Compact body: The overall size is 4.8m × 1.9m × 2.35m, with a compact structure and easy transportation.
2)Reasonable self weight: 8 tons of equipment weight, balancing work stability and road transportation convenience.
3)Modular design: The hydraulic system layout is reasonable and easy to maintain.
4)Double winch configuration: main winch+1.2-ton auxiliary small winch, making it easier to lift and unload drilling tools.
5)High leg stroke: A 1.35-meter high leg stroke provides sufficient working space for drilling.
6)Top drive hydraulic drive: an advanced top drive method with high transmission efficiency and good reliability.

Deep Hole Water Well Drill Rig Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

Deep Hole Water Well Drill RigTechnological Data

Parameter Category Specification Detail
Driving Type Hydraulic Rotation
Drill Pipe Diameter 76mm/89 mm/102mm
Auxiliary Winch Capacity 1.2 Tons
High Leg Travel 1.35 meters
Climbing Ability 30°
Overall Dimension (LxWxH) 4.8m × 1.9m × 2.35m
Chassis Type Crawler Mounted
Adaptive Conditions Loose Layer & Bedrock
