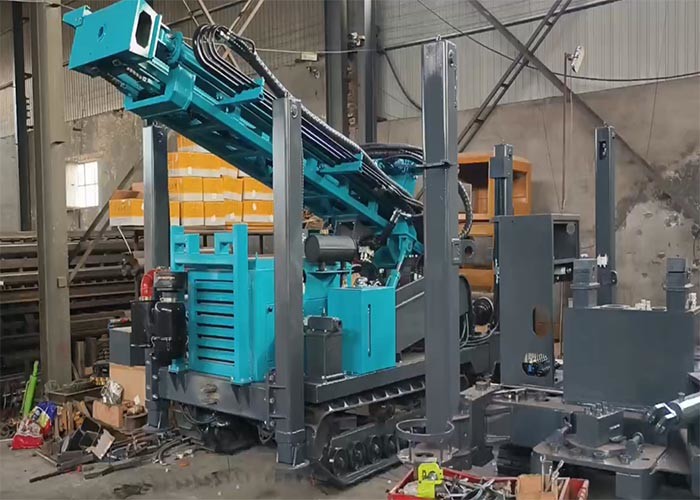

30° All-terrain Crawler Drilling Rig For Farm Irrigation & Drinking Water
30° All-terrain Crawler Drilling Rig For Farm Irrigation & Drinking Water
30° All-terrain Crawler Drilling Rig For Farm Irrigation & Drinking Water
30° All-terrain Crawler Drilling Rig For Farm Irrigation & Drinking Water
Specifications
Brand Name :
Shitan
Model Number :
ST180 water well drilling rig
Certification :
ISO
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
customized quotation list
Payment Terms :
TT,Western union
Supply Ability :
1000 or 2000 set per year
Delivery Time :
7 days after payment
Packaging Details :
wooden box
Fast forward speed :
40m/min
Drilling Method :
Water Mud /Air Compressor
Drilling Diameter :
105-305mm
Air Compressor Compatibility :
16–55 m³/min, 1.25–3.5 MPa
Max. Drilling Depth :
180m
Lifting speedRotary Torque Output :
5900 N·m
Drill Pipe :
76 mm OD × 3 m Length
Formation Compatibility :
Loose Overburden & Bedrock
Description

Product Description:

ST180 features outstanding drilling efficiency from 10m/h to 35m/h, flexible bore size from 105mm to 305mm, and 16T strong main winch lifting force. Stable performance fits small municipal water supply projects, industrial civil water well construction and shallow geothermal drilling, helping contractors shorten project construction cycle.

Features:

1.180m Deep Drilling Capacity
Drills up to 180 meters deep, easily meeting the needs of village water supply, farm irrigation, and small industrial water projects.

2.105–305mm Adjustable Borehole Diameter

Adjustable borehole diameter from 105mm to 305mm, covering a wide range of applications from domestic wells to large-diameter industrial boreholes.

3.Dual Drilling Modes for All Formations

Supports both DTH air percussion drilling and mud rotary drilling, delivering high efficiency in both hard rock and soft soil formations.

4.Powerful 55KW Xidong Diesel Engine

Equipped with a reliable 55KW Xidong diesel engine for stable power output and low fuel consumption, ideal for long-term field operations.

5.High Penetration Rate (10–35m/h)

High footage efficiency of 10–35 meters per hour, significantly shortening construction cycles and speeding up project delivery.

6.30° Gradeability Crawler Chassis

Self-propelled crawler chassis with a 30° climbing degree, enabling free movement on hilly and uneven terrain without haulage trucks.

7.Strong 16T Main Winch & 1.2T Auxiliary Winch

Powerful 16-ton main winch and 1.2-ton auxiliary winch make handling drill pipes effortless, greatly reducing labor costs on-site.

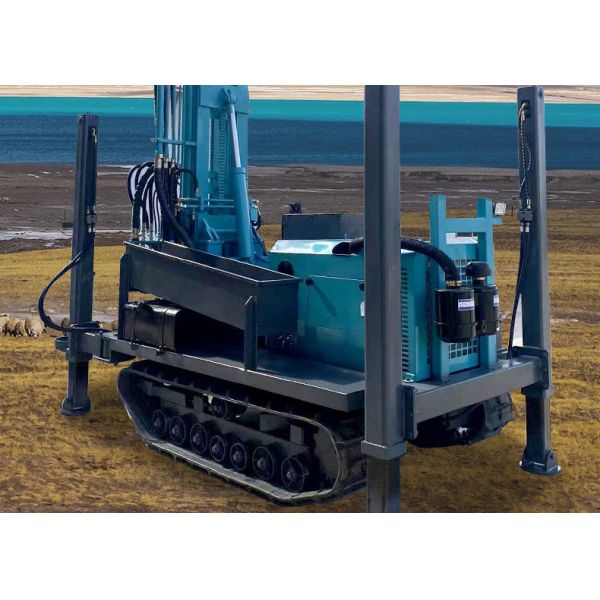

8.Large 1.35m Stroke Support Legs

Support legs with a 1.35-meter stroke allow quick leveling on uneven ground, ensuring stable and safe drilling operations.

Technical Parameters

Item Specification
Compact Footprint 3.4 × 1.8 × 2.3 m / 4.5T
Drilling Hole Diameter 105-305mm
Working wind pressure 1.25–3.5Mpa
Gas consumption 16–55m³/min
Gradeability & Mobility 30° / 2.5 km/h
Outrigger Stroke 1.35m
Dual Drilling Technology DTH / Mud Rotary
Lifting force 16T
Engine Power 55 KW ( Diesel)
Lifting System 16T Main Winch + 1.2T Auxiliary Winch

Professional OEM drilling rig factory with diversified standard models, customized modification available to match clients’ unique geological and project requirements.
