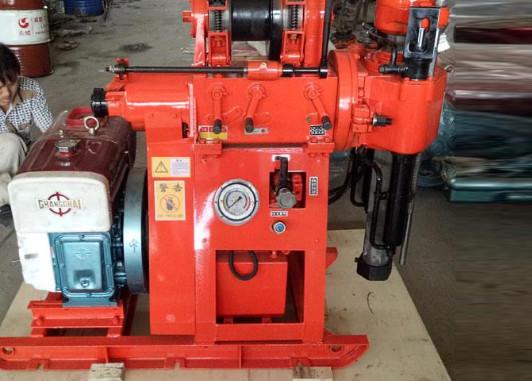

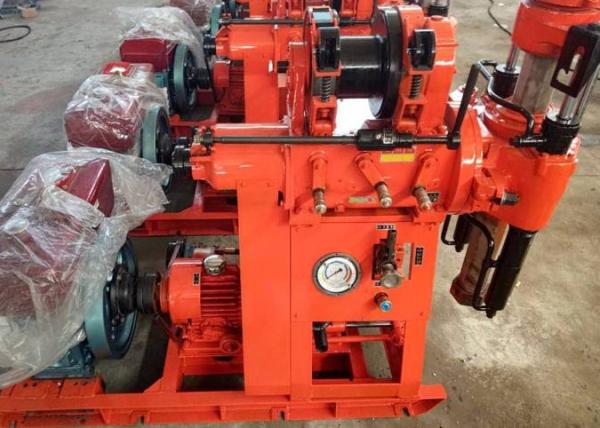

Fast Speed Gk 200 Geotech Drill Rig In Sample Collection
Fast Speed Gk 200 Geotech Drill Rig In Sample Collection
Fast Speed Gk 200 Geotech Drill Rig In Sample Collection
Fast Speed Gk 200 Geotech Drill Rig In Sample Collection
Specifications
Brand Name :
ShiTan
Model Number :
GK 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
Within 7 days
Packaging Details :
Wooden box
Product Name :
GK Geological Drilling Rig Machine
Color :
Red Yellow
Feature :
High Drilling Efficiency
Usage :
Water Well,exploration
Application :
Water Well drilling
Power Type :
Diesel
Drilling depth :
200 meters
Warranty :
1 Year
Voltage :
220V/380V
Length of drill pipe(mm) :
3m
Condition :
New
hole diameter :
200 mm
Description

GK 200 Fast Speed 220v Soil Sample Collecting Engineering Drill Rig

GK 200 Geological Drilling Rig Machine Introduction Gk200 drilling rig is widely used and hydraulic feeding , which has the characteristics of large power, large lifting force (2T) and high transmission torque.

GK 200 Geological Drilling Rig Machine Information

Drilling Depth
 200m
Maximum open hole caliber 300mm
End hole caliber 75mm
Drill rod caliber 60mm
Drilling angle 90°~75°
Drill weight (No include power) 975kg
Unity machine dimensions 1433×697×1273m
Spindle
spindle speed 64 128 287 557r/min
Spindle stroke 450mm
Winch
Max.single line hoisting capacity 2400kg
Single line lifting speed 0.41,0.82,1.64m/s
steel wire rope caliber 13m(35m)
Mud pump
Type Horizontal single urn twin-action
Displacement
170/150L/min(diesel or electromotor)
Diesle engine ZS1115 16.2kw 2200r/min
Electric motor Y160M—4 11kw 1440r/min

GK 200 Geological Drilling Rig Machine Features

With oil pressure feeding mechanism,.
Large rotary torque and large opening diameter.
Large active drill pipe and double guide rod are adopted,.
The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill pipe,
It is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.
Handle centralized operation
GK 200 Geological Drilling Rig Machine Usage
Railway, hydropower, transportation, bridge, dam foundation and other buildings.
Geological core drilling, small grouting

Fast Speed Gk 200 Geotech Drill Rig In Sample CollectionFast Speed Gk 200 Geotech Drill Rig In Sample Collection



Product tags

soil test drilling machine

,

drilling machine for soil investigation

,

soil sampling tool
