Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a
Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a
Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a
Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a
Specifications
Brand Name :
ShiTan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Type :
Core Drill Rig
Power Type :
Diesel
Weight: :
480kg
Usage :
water well,railways, core drilling
Drilling depth :
30-180m
Dimension(L*W*H) :
1620*970*1560mm
Drill pipe diameter :
42mm
Borehole dip angle :
90°~75
Spindle speed :
1010、790、470、295、140（r/min）
Model :
YBC-12/125
Rated pressure :
12.5Mpa
Model(diesel engine） :
1105
Description
Civil 150m Portable Water Drilling Machine Crawler Diesel XY-1A
Product Specifications
Attribute Value
Type Core Drill Rig
Power Type Diesel
Weight 480kg
Usage Water well, railways, core drilling
Drilling depth 30-180m
Dimension (L*W*H) 1620*970*1560mm
Drill pipe diameter 42mm
Borehole dip angle 90°~75
Spindle speed 1010, 790, 470, 295, 140 (r/min)
Model YBC-12/125
Rated pressure 12.5Mpa
Model (diesel engine) 1105
Product Overview

The XY-1A Soil Test Drilling Machine is a core drilling equipment primarily used for general survey and exploration of metal and non-metallic solid minerals. It's also suitable for engineering geological exploration, hydrogeological survey, oil and gas field exploration, and water well drilling.

Technical Parameters
Component Parameter Value
Drill Swivel Head Drilling depth Max. 150m
Spindle speed 1010, 790, 470, 295, 140 (r/min)
Spindle stroke 450mm
Spindle pull-down Max. 15KN
Spindle lifting capacity Max. 25KN
Weight Approx. 600kg
Size 1620*970*1560mm
Key Features
  • Automatic oil pressure feeding mechanism improves drilling efficiency and reduces labor intensity
  • Ball clamp type clamping mechanism allows rod reversing without stopping the machine - safe and reliable operation
  • Centralized handle operation with pressure gauge for monitoring hole conditions
  • Compact structure with drilling rig, water pump, and power engine assembled on same base
  • Lightweight design with strong decomposition for easy mobility
  • Taper clutch provides large transmission torque with maintenance-free operation
Applications
  • General survey exploration and geophysical exploration
  • Road and building construction surveys
  • Water well drilling projects
  • Compatible with alloy, diamond, and composite bits for different geological layers
  • Capable of drilling grade 2-9 sandy clay and rock stratum

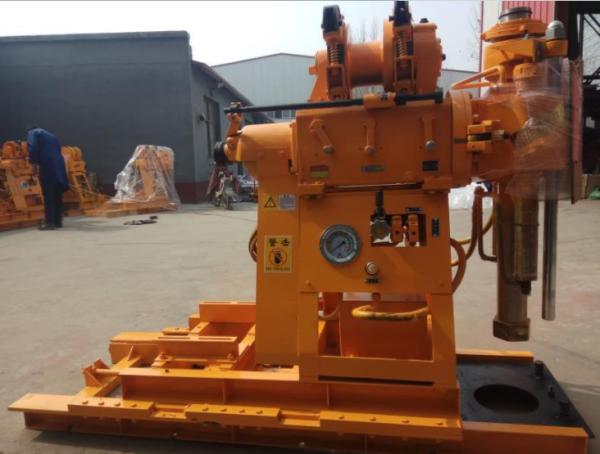

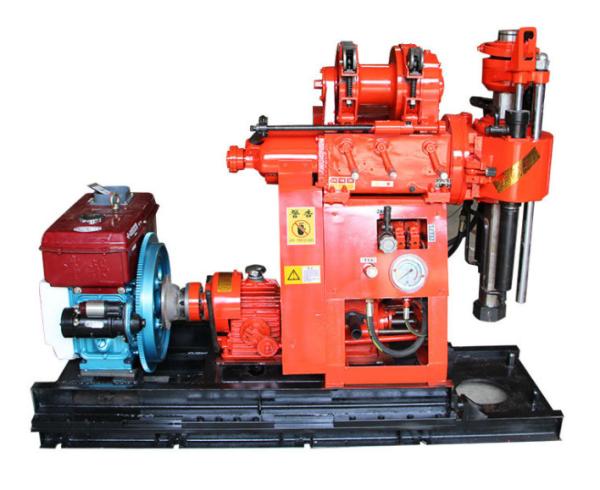

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a Civil 150m Portable Water Drilling Machine Crawler Diesel Xy-1a
