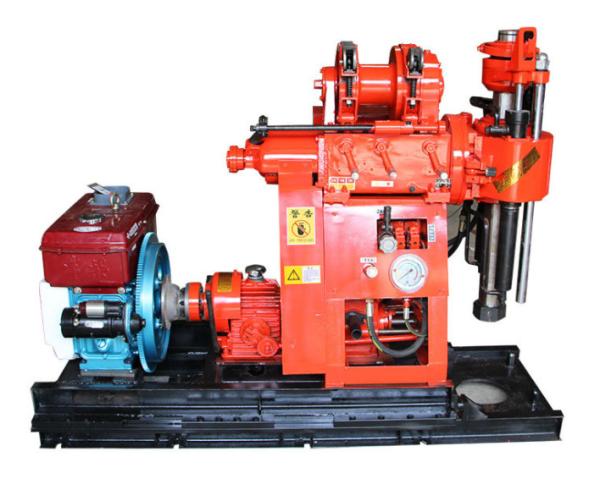

Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic
Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic
Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic
Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
name :
Geological Drilling Rig Machine
Power Type :
Diesel
Voltage :
380V
Power(W) :
15KW
Weight :
626KGS
Condition :
New
Equipment size(L * B * H) :
1730 * 860 * 1360 (mm)
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Product name :
small bottle filling machine,Chemical oil pallet drum filling machine,Essential olive oil vial filling machine for laboratory
Description

Coring Drilling Rig Survey Drilling Rig Full Hydraulic Soil Test Drilling Machine

Brief introduction of drilling rig

Applications GK200 drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner

GK200 Hydraulic Portable 200m Water Well Drilling Machine

Drilling depth 200m
Open hole diameter 75-300mm
End hole diameter 75mm
Active drill rod 53/59*4200mm
Rod diameter 50,60mm
Drill angle 90°-75°
Matched power(diesel power) 15kw/2200r/min
Dimension 2800*950*1700mm

Soil Test Drilling Machine Main Features

a. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque. b. The machine is equipped with national patent technology---taper clutch, with characteristics of strong transmission torque, easy operation and free maintenance. c. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch. d. Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions. e. Additional ,XY-180 with five gears, and the highest speed can reach 1045r/min, improving drill efficiency
Soil Test Drilling Machine characteristics

1, The drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Coring Survey 15KW Soil Test Drilling Machine Full Hydraulic

Coring Survey 15KW Soil Test Drilling Machine Full HydraulicCoring Survey 15KW Soil Test Drilling Machine Full Hydraulic

Coring Survey 15KW Soil Test Drilling Machine Full HydraulicCoring Survey 15KW Soil Test Drilling Machine Full HydraulicCoring Survey 15KW Soil Test Drilling Machine Full HydraulicCoring Survey 15KW Soil Test Drilling Machine Full Hydraulic
