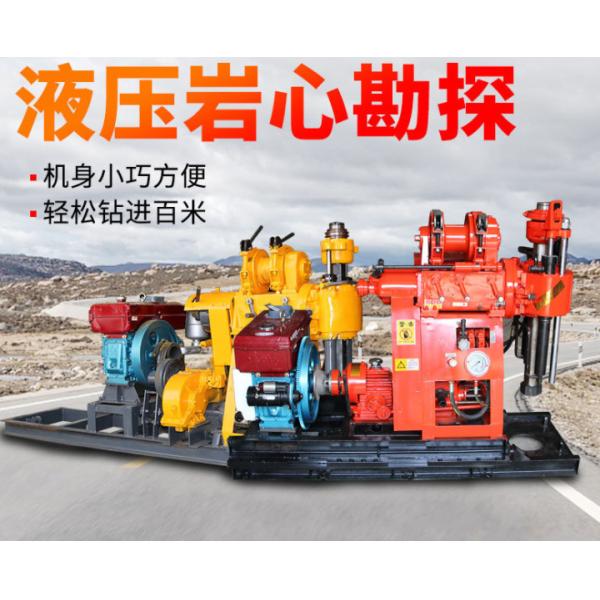

150m Man Portable Geological Prospecting Rigs Engineering Spt Drilling Rig

Introduction of Soil Test Drilling Machine

· Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

·With hydro-automatic feeding device, and high drilling efficiency.

· Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

·Close levers, convenient to operate, safe and reliable operations.

· Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

·Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

Soil Test Drilling Machine parameters

Application:

1. The drilling rig is a high-speed drilling rig, which is suitable for general survey exploration, geophysical exploration, road and building exploration, drilling and other drilling projects.
2. Alloy, diamond and composite bits can be selected for drilling according to different bottom layers.
3. It can drill grade 2-9 sandy clay and rock stratum.

Main features:

1. It has oil pressure automatic feeding mechanism to improve drilling efficiency and reduce workers' labor intensity.
2. The ball clamp clamping mechanism is used to replace the chuck, which can reverse the rod without stopping the machine, which is convenient, safe and reliable.
3. The winch is equipped with cage to form a double-sided supporting star wheel structure, which can withstand strong impact
4. Four groups of bearings of the vertical shaft box are positioned to ensure that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer
5. The machine adopts taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance free

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
