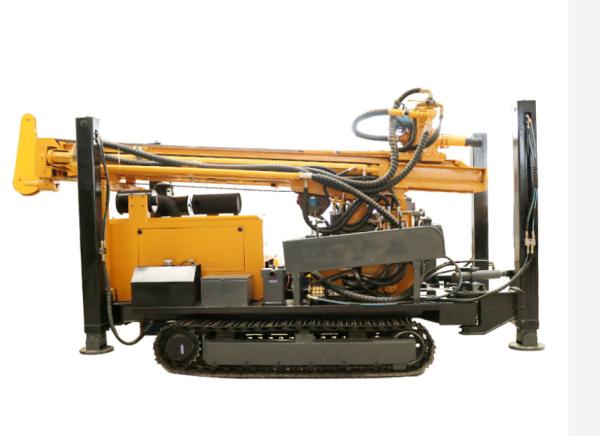

Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment
Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment
Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment
Water Well 200m Deep Borehole Crawler Mounted Dth Machine Equipment
Specifications
Brand Name :
ShiTan
Model Number :
ST-260
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
1000year
Delivery Time :
Within 7-12 days
Packaging Details :
Naked
Type :
Crawler Mounted Drill Rig
Power Type :
Diesel
Driving way :
Hydraulic driving
Usage :
Geological core drilling
Weight: :
6 T
Voltage :
380V
name :
well drilling equipment
Air pressure :
1.25-3.5Mpa
Weight of the rig :
4m×1.7m×2.2m
Description
Water Well 200m Deep Borehole Crawler Mounted DTH Machine Equipment
Product Specifications
Attribute Value
Type Crawler Mounted Drill Rig
Power Type Diesel
Driving way Hydraulic driving
Usage Geological core drilling
Weight 6 T
Voltage 380V
Model Number ST-260
Name Well drilling equipment
Air pressure 1.25-3.5Mpa
Dimensions 4m×1.7m×2.2m
Product Overview

The ST200 series Hydraulic Water Well Drilling Rig is a lightweight, high-efficiency multifunctional drilling rig. It is widely applied in water wells, irrigation wells, and other boreholes, particularly suitable for mountain areas or rock foundations. The drilling rig incorporates advanced hydraulic technology, supporting high-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.

Technical Parameters
Weight of whole machine 4.5T
Drilling caliber 140-254mm
Drilling depth 180m
One-time push length 3.3m
Walking speed 2.5km/h
Climbing ability Max. 30°
Power of main machine 55kw
Working pressure 1.7-2.5mpa
Air consumption 17-31m³/min
Diameter of drill rod 76, 89mm
Length of drill rod 1.5, 2.0, 3.0m
Lifting force 12T
Rotation speed 45-65rpm
Rotation torque 3200-4600N.m
Dimensions 3800×1500×2200mm
Key Features

The ST260 new generation multi-purpose DTH deep water well drilling rig is our independent research and development product. These new generation DTH rigs are coupled to higher air power, leading to significantly faster drilling rates.

Adopting the newest model and advanced hydraulic technology, our water well drilling machines are primarily used for well drilling in resource exploration, hydrology wells, civil water wells, and agricultural irrigation projects. They can also be used for coal-mine gas exploitation, coalbed methane extraction, shallow layer shale gas drilling, terrestrial heat applications, and salvage work.

Product Advantages
  • Full hydraulic control for convenient and flexible operation
  • Top drive type rotary feeding lifting system
  • Multi-functional drilling capabilities
  • High operational efficiency
  • Low operating costs
  • High outrigger crawler type design
  • Unique positive and negative axial pressure adjustment
  • Integrated lubricator function
  • Crawler mounted rig chassis for stability
  • Excellent resale value in the industry
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
