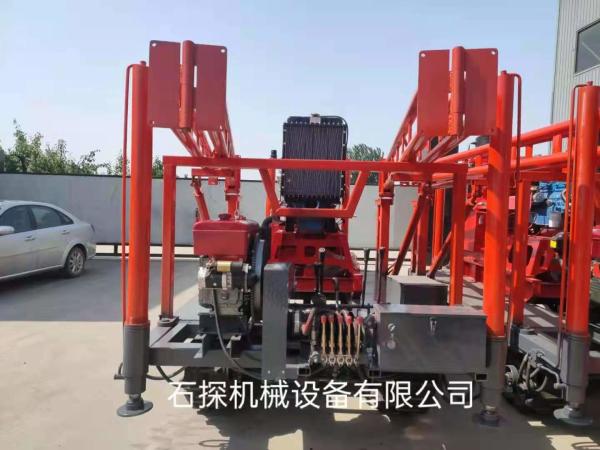

Hydraulic Crawler Drill Rig Equipment For Exploration And Coring
Hydraulic Crawler Drill Rig Equipment For Exploration And Coring
Hydraulic Crawler Drill Rig Equipment For Exploration And Coring
Hydraulic Crawler Drill Rig Equipment For Exploration And Coring
Specifications
Brand Name :
ShiTan
Model Number :
GK-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD6800-18000/set
Payment Terms :
L/C, D/A, T/T, Western Union
Delivery Time :
Within 7-12 days
Packaging Details :
wooden box
Type :
horizontal directional drilling
feature :
multifunctional
Voltage :
220/380
Application :
Water Wells drilling
Color :
red /yellow
Name :
Core drilling machine
Drill rod diameter :
42.50.89
Drilling depth :
200m
Drilling hole inclination :
90 °-75°
The machine weight :
620kg
Description
Hydraulic Crawler Drill Rig Equipment For Exploration And Coring
Product Specifications
Attribute Value
Type horizontal directional drilling
Feature multifunctional
Voltage 220/380
Application Water Wells drilling
Color red /yellow
Name Core drilling machine
Drill rod diameter 42.50.89
Drilling depth 200m
Drilling hole inclination 90°-75°
Machine weight 620kg
Reliable Price Well Drilling Rig For Geological Exploration GK200 Drilling Rig

A self-propelled track/crawler drilling platform designed for easy transportation of drilling rigs and accessories. Various models can be mounted to the track/crawler, including GY-100, GY-150 series, and GY-200 series.

Technical Parameters
Track Width 350mm Bearing Capacity 3000 kgs
Track-Ground Contact Length 1800mm Tower Height 6700mm
Min Ground Clearance 250mm Tower Hoisting Capacity 3000 kgs
Gradeability 25° Dimension 3500*1900*2200mm
Walk Speed 5-10 km/h Weight 2200 kgs
Key Features
  • Hydraulic automatic feeding device for elevated drilling efficiency
  • Large torque and drilling diameter capability
  • Spherical jaw holding mechanism for rod replacement without breakdown
  • Compact structure with small volume and lightweight design
  • High detachability for easy transportation
  • Suitable for operations in plains or mountain areas
  • Large drive pipe with double guide rod for increased stability
Main Advantages
  • Self-propelled design for easy movement and deployment
  • Labor-saving operation with low maintenance costs
  • Reliable performance with high-quality construction

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
