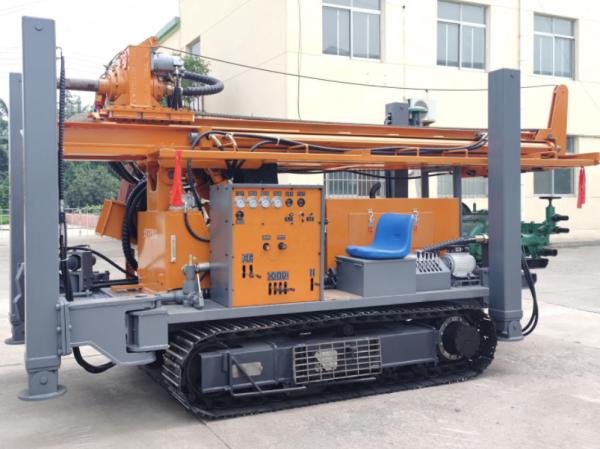

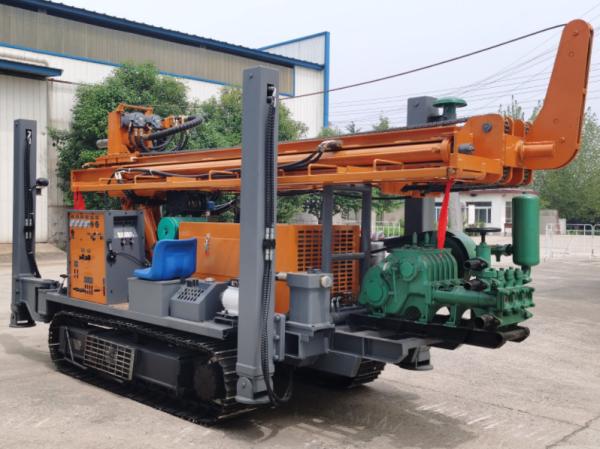

3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
3.5Mpa Air Pressure Hydraulic Core Crawler Drilling Rig
Specifications
Brand Name :
ShiTan
Model Number :
ST-260
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
1000year
Delivery Time :
Within 7-12 days
Packaging Details :
Naked
Type :
Crawler Mounted Drill Rig
Power Type :
Diesel
Driving way :
Hydraulic driving
Usage :
Geological core drilling
Weight: :
6 T
Voltage :
380V
name :
well drilling equipment
Air pressure :
1.25-3.5Mpa
Drilling efficiency :
10-35m/h
Description

Crawler Mounted Hydraulic Core Drilling Rig Spt Borehole Drilling Rig Machine Price

Introduction of 260 Crawler Mounted Drill Rig

ST260 series of multi-purpose deep water well drilling rig is our independent research and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.

Product parameters of 260 Crawler Mounted Drill Rig
The Weight(T)
6T
Dimensions(mm)

4m×1.7m×2.2m
The hole diameter(mm)
105-260mmmm
Drilling Depth(m)
260meters
Once-time advance length(mm)
3000/6000mm
Walking speed(Km/h)
2.5KM/H
Climbing angles(Max.)
30
Minimum clearance clearance(mm)

230
Using air pressure(Mpa)

1.25-3.5
Air consumption(m³/min)
23
Equipped capacitor(Kw)
92
Swing speed(rpm)
55-115
Swing torque(N.m)
 5900
Drill pipe diameter(mm)
Φ76 Φ89 Φ102
Drill pipe length(m)
1.5 2.0 3.0 6.0
Rig lifting force(T)
30

Performance Characteristics of 260 Crawler Mounted Drill Rig:
1. Full hydraulic control is convenient and flexible
2. Top drive type rotary feeding lifting
3. Multi-functional drilling
4. High efficiency
5. Low cost
6. High outrigger crawler type
7. Unique positive and negative axial pressure adjustment
8. Function of lubricator
9. Crawler mounted rig chassis
10. The second-hand machine has the highest value in the industry
