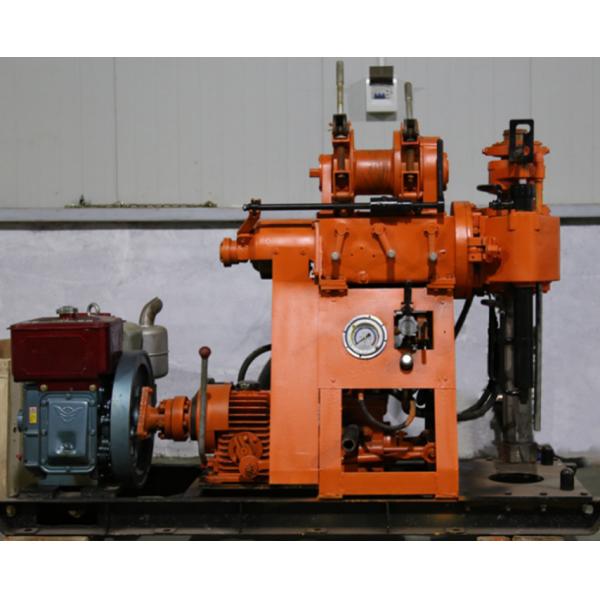

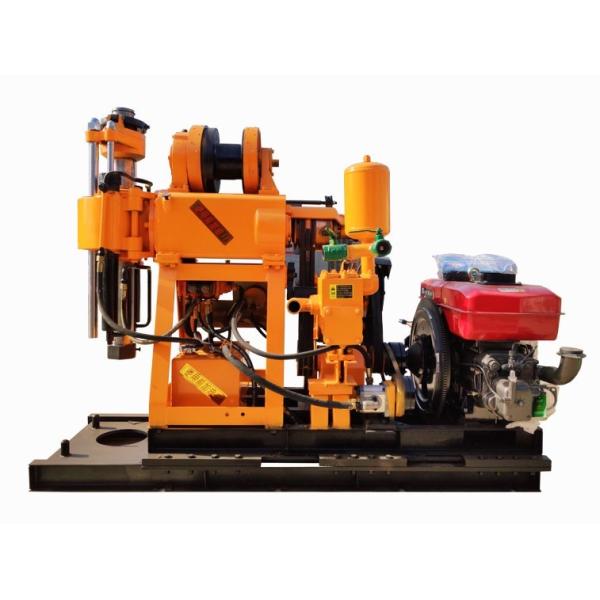

GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed
GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed
GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed
GK-200 42MM Rod Diameter Geological Drilling Rig ISO Passed
Specifications
name :
Soil Test Drilling Machine
Type :
Rotary Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
380V
Power(W) :
15KW
Weight :
626KGS
Certification :
ISO
Other name :
drill rig
Drill rod diameter :
42, 50，89
Condition :
New
Equipment size(L * B * H) :
1730 * 860 * 1360 (mm)
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description

GK-200 Small Water Well Drilling Rig Hole Core Drilling Exploration Geological Machine

Geological Drilling Rig Machine for Geological Exploration

GK200 It is widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

Geological Drilling Rig Machine​ parameters

Drilling diameter(mm) 75,91,110,130,150,300
Drilling depth (m) 200,150,100,70,50,30
Drill pipe diameter (mm) 42,50
Drilling angle(°) 90~75
Equipment size(L * B * H) 1730 * 860 * 1360 (mm)
Rig weight (except engine) 700
Gyrator
Spindle speed (four gear) (r/min) 115,230,505,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 1.5
Winch assembly
Winch maximum lifting force (single rope) 20
Reel speed (r/min) 20,39,85,170
Reel circumferential speed(m/s) 0.172,0.345,0.738,1.476
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 40
Brake diameter(mm) 278
Brake band width (mm) 50
Oil pump
Oil pump type YBC -20/125
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine 1115
Rated power (KW) 16.2
Rated speed (r/min) 2200
Rated pressure(Mpa) 12.5
Motor type Y160M - 4
Rated power (KW) 11
Rated speed (r/min) 1460

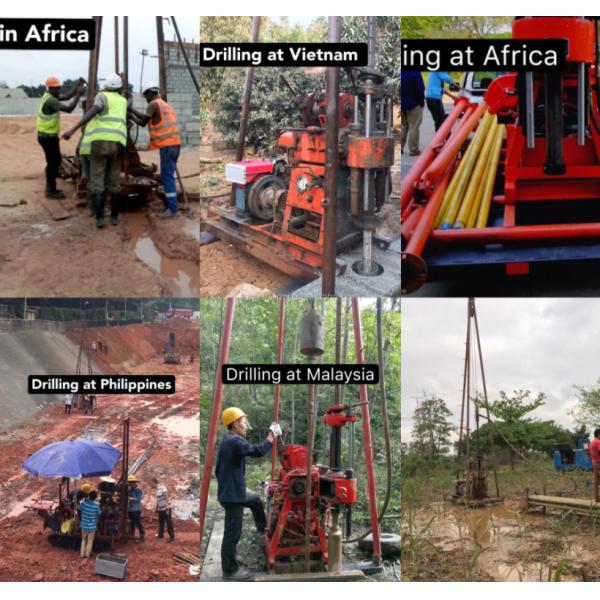

Geological Drilling Rig Machine Applicate:

1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge,
water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Core mining exploration, Or exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling.

Characteristics of Geological Drilling Rig Machine

GK-200 water well drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,

reduce manual labor workers.

2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,

easy to operate, safe and reliable.

3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

4 The handle centralized, easy to operate.

5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

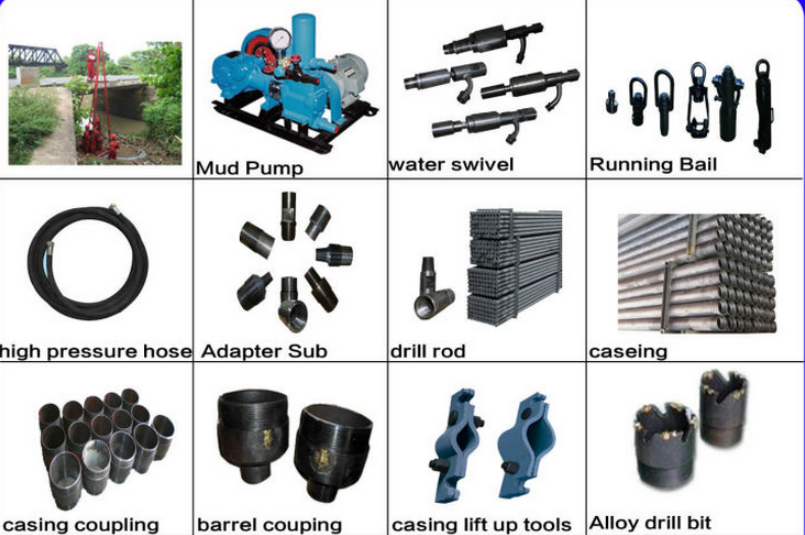

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
