GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration
GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration
GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration
GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration
Specifications
Brand Name :
ShiTan
Model Number :
GK 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
20000 set/year
Delivery Time :
Within 5 days
Packaging Details :
Standard Export package
Product name :
Gk 200 Core Drilling Rig With 200 Meters Depth 295mm Hole Diameter For Exploration Drilling Equipment
Drilling Hole Diameter :
Customized
Drilling depth :
200 Meters
Warranty :
1 Year
Dimension(L*W*H) :
1180×680×1600mm
Drill pipe diameter :
50 mm
Weight :
200KG
Power Type :
Diesel
Color :
Yellow,Red and Blue
After-sales service provided :
Video technical support
Application :
Soil Sampling,Water well drilling
Feature :
High Drilling Efficiency
Description
GK 200 Core Electric Drill Rig for Exploration and Mineral Core Sampling
Product Specifications
Product Name GK 200 Core Drilling Rig With 200 Meters Depth 295mm Hole Diameter For Exploration Drilling Equipment
Drilling Hole Diameter Customized
Drilling Depth 200 Meters
Warranty 1 Year
Dimensions (L×W×H) 1180×680×1600mm
Drill Pipe Diameter 50mm
Weight 200KG
Power Type Diesel
Color Options Yellow, Red and Blue
After-sales Service Video technical support
Applications Soil Sampling, Water well drilling
Key Feature High Drilling Efficiency
Product Overview

The GK 200 Core Drilling Rig is a lightweight, efficient, multi-functional surface drill rig primarily designed for water wells, agricultural irrigation wells, geothermal air conditioner holes, and similar applications. This versatile drilling rig operates effectively across different strata and incorporates advanced hydraulic technology with a high-torque hydraulic rotary motor and large-diameter hydraulic cylinder propulsion.

Technical Parameters
Drilling Depth 200m
Maximum Open Hole Caliber 300mm
End Hole Caliber 75mm
Drilling Rod Diameter 60mm
Drilling Angle 90°~75°
Drill Rig Moving Stroke 300mm
Power Engine Diesel engine 22HP
Spindle Speed 64, 128, 287, 557 r/min
Spindle Stroke 450mm
Maximum Single Line Lifting Capacity 2400kg
Maximum Single Line Lifting Speed 0.41, 0.82, 1.64m/s
Wire Rope Caliber 13mm
Mud Pump Details Diesel 170L/min
Work Pressure 1.5Mpa
Water Inlet Pipe Diameter 40mm
Water Outlet Pipe Diameter 30mm
Key Advantages
  • Oil pressure automatic feeding mechanism ensures high drilling efficiency
  • Centralized handle design for convenient operation and enhanced safety
  • Compact configuration with drilling rig, shifting base, and diesel engine all mounted on the same underframe
  • Lightweight and modular design for easy transportation and mobility, suitable for both plains and mountainous terrain
Operational Considerations

After completing a well, pumping tests should be conducted to verify results. A large drawdown pumping test should typically last at least eight hours with stable water level measurements. The drilling site must maintain proper drainage, making rainy conditions unsuitable for operation.

Note: During excavation work, maintain proper slope angles (typically 1:1.5) based on soil characteristics. Ensure adequate distance between spoil piles and excavation openings. For wells with shaft wall water inflow, properly install and maintain inlet holes and filter layers according to design specifications.

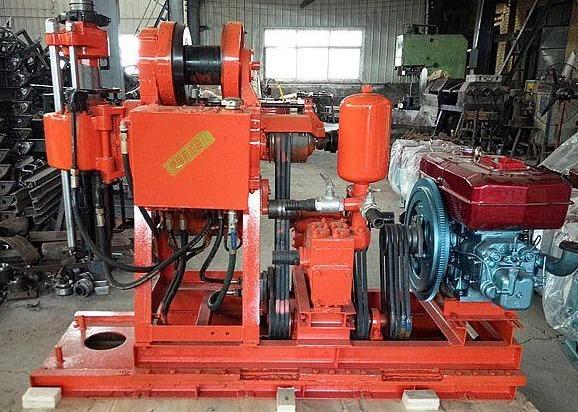

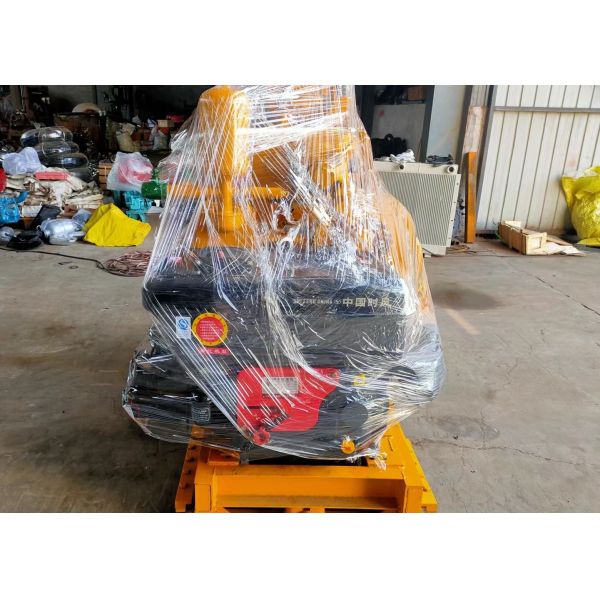

Product Images
GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration GK 200 Core Drilling Rig 200m Depth Diesel Powered for Exploration
