Description

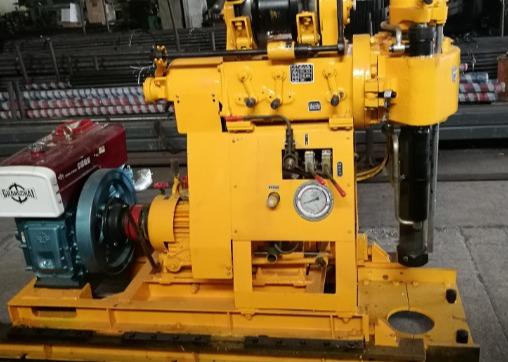

Construction Engineering Small Borehole XY-1A Geological Drilling Rig Machine

XY-1A Geological Drilling Rig Machine Introduction

The diesel engine is 1105, 18 HP , the sliding stroke is 350mm, the water pump pressure is 1.2MPa, the winch lifting force is 10kN, and the weight is 500kg. XY-1 A drilling rig is a portable drilling machine with oil pressure feeding.

XY-1A Geological Drilling Rig Machine Technical Data

XY-1 A Drilling Rig
Drilling diameter(mm) 75,91,110,130,150
Drilling depth (m) 150,100,70,50,30
Drill pipe diameter (mm) 42,43
Drilling angle(°) 90~75
Equipment size(L * B * H) 1700 * 780 * 1274 (mm)
Rig weight (except engine) 540
Gyrator
Spindle speed (four gear) (r/min) 140,295,470,790,1010
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 11
Reel speed (r/min) 36,76,121
Reel circumferential speed(m/s) 0.31,0.66 ,1.05
Reel diameter(mm) 140
Wire rope diameter(mm) 9.3
Wire rope density (m) 35
Brake diameter(mm) 252
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500

XY-1A Geological Drilling Rig Machine Features:

1, The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

2 ,The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.

3 ,Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.

4, Handle concentration, easy operation.

5, It is compact, small in size, light in weight, strong in decomposition and easy to remove .It can be used in plains and mountains.

Xy-1A Geological Drilling Rig Machine Drilling Steps

1. level the site and build a drilling platform (that is, clamp a 4m * 4m platform with a rack pipe)
2. Hoist the drilling rig and level the drilling rig
3. Support drilling rack, tripod,
4. If the drilling speed is simple, the drilling speed is not fast, and the drilling speed is not fast
5. If the drilling is in sandy soil and pebble layer, connect the water supply pipeline before drilling, and use mud or protective pipe to protect the wall during drilling to prevent hole collapse.
6.Alloy drilling is often used when drilling sand layer. Diamond bit is used to drill pebbles.
FAQ of Our Drilling rigs
Q1.How can I order from you ?
A:Please send us your enquiry list;We will reply you within one working day.
Q2.If my quality is less than your MOQ,how should i do ?
A:Normally,the goods are made according to order. We will check with our stock or parts producing and get back to you soon.
Q3.If I have special requirements about the machine, could you meet mines?
A:Yes,we are able to offer you customized products.
Q4.If the machine I look for are not in your catalogue,what should I do ?
A:We can develop it according to your drawing or sample.
Q5.Can you offer me the package with our logo and brand ?
A:Yes,we can, only with your official authorization.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
