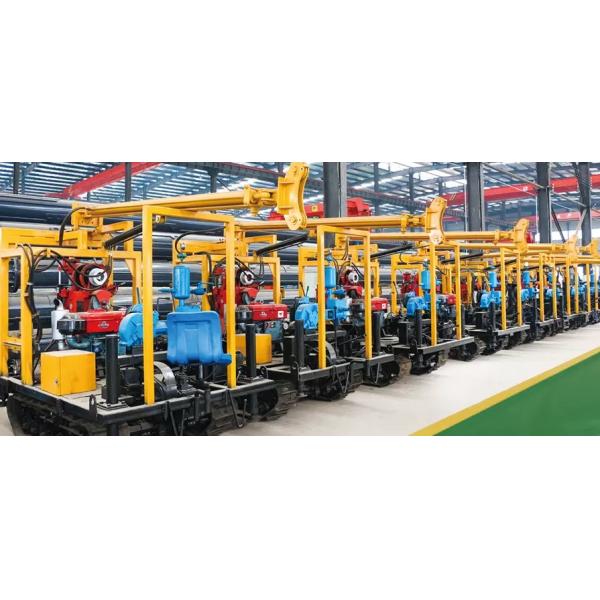

180M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine
180M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST180
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Drilling Diameter :
300mm
Drilling Depth :
180m
Type :
Core Drilling Rig
Usage :
Mining Exploration
Power Type :
Electric
Drilling Angle :
90-75
Description

180M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine

Feature of water well drilling rig

1.Engine:Feed by hydraulic cylinder,the drilling efficiency is higher and it can save labor.

2,Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.

3.Spindle:Vertical spindle are fixed by four groups of bearing to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

4.Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.

5.Concentrated handle, small footprint,light weight, strong decomposition, easy to move.



Main Parameter of ST-180 Core Drill Rig

Drilling depth 180m
Maximum open hole caliber 300mm
End hole caliber 75mm
Drill rod caliber 60mm
Drilling angle 90°~75°
Drill weight (No include power) 525kg
Unity machine dimensions 1433×697×1273m
Spindle
spindle speed 71 142 310 620r/min
Spindle stroke 450mm
Winch
Max.single line hoisting capacity 15KN
Single line lifting speed 0.41,0.82,1.64m/s
steel wire rope caliber 13m(35m)
Mud pump
Type Horizontal single urn twin-action
Displacement 170/150L/min(diesel or electromotor)
Diesle engine 16.2kw 2200r/min
Electric motor 11kw 1440r/min



180M Core Drilling Rigs / Hydraulic Exploration Water Well Drilling Machine
