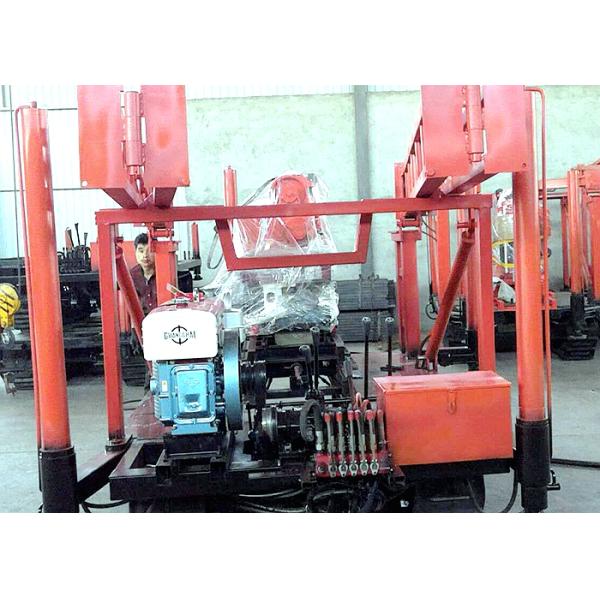

Professional Soil Test Drilling Machine For SPT Sample Collection
Professional Soil Test Drilling Machine For SPT Sample Collection
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-100
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Power(W) :
11KW
Dimension(L*W*H) :
1640x1030x1440mm
Weight :
500kg
Description

Fast Delivery Soil Test Drilling Rig Machine for SPT Sample Collection

Product Description:

ST series drilling rigs are our advantage products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customer’s positive feedback.

Product Parameter:

Drill
Drilling depth 100m
Drill rod dia. 42mm
Initial hole dia. 110mm
Final hole dia. 75mm
Angle range 90°-75°
Dimensions(L×W×H) 1640×1030×1440 (mm)
Weight(without power unit) 500kg
Swivel Head
Spindle speed(3-speed) 142/285/570 r/min
Spindle stroke 450mm
upward displacement speed of idling vertical spindle 0.05m/s
Downward displacement speed of idling vertical spindle 0.067m/s
Spindle pull-down max 15KN
Spindle lifting capacity max 25KN
Hoist
Max .lifting capacity(1-speed,single rope) 10KN
Cable volume (number) of hoisting drum 27m
Wire rope dia. 9.3mm
Mud Pump
Model Horizontal reciprocating single-acting piston pump
Displacement max
Equipped with diesel engine 95L/min
Equipped with motor 77L/mm
Allowable working pressure max 1.2Mpa
Continuous working pressure 0.7Mpa
Suction pipe dia 32mm
Discharge pipe dia 25mm
