High Performance Portable Drilling Mud Pump For Water Well Drill
High Performance Portable Drilling Mud Pump For Water Well Drill
Specifications
Model Number :
BW250
Structure :
Gear Pump
Usage :
Water
Application :
Metering
Power :
Hydraulic
Fuel :
Diesel
Pressure :
High Pressure
Max flux :
250L/M
Feature :
Critical Cleaning / Residue Free
Brand Name :
JINZHOU SHITAN
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
High Performance Portable Drilling Mud Pump For Water Well Drill
Product Specifications
Attribute Value
Model Number BW-250
Structure Gear Pump
Usage Water
Application Metering
Power Hydraulic
Fuel Diesel
Pressure High Pressure
Max flux 250L/M
Feature Critical Cleaning / Residue Free
Product Description

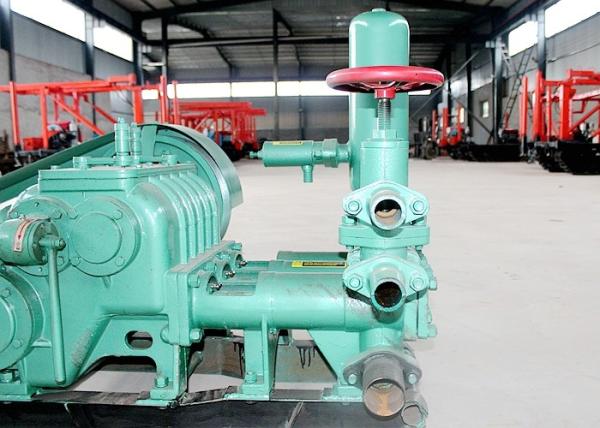

The BW-250 grouting pump is a horizontal three-cylinder reciprocating single-acting piston pump designed for water well drilling applications. This versatile pump features two bore sizes and four speed settings, making it suitable for various drilling requirements.
The large bore (φ80mm) configuration supports 1000m large-diameter drilling rigs, while the small bore (φ65mm) version is ideal for 1500m small-aperture drilling rigs. Both configurations offer four displacement options to accommodate different aperture depths.
The pump's innovative four-speed shifting mechanism within the pump body results in a compact, lightweight design with excellent decomposability. This makes it particularly suitable for mountain operations where portability is essential. The BW-250 can handle both clean water and thick mud, making it perfect for geological exploration applications.
High Performance Portable Drilling Mud Pump For Water Well Drill
Technical Parameters
Parameter Specification
Model BW250
Type Horizontal triplex single acting reciprocating piston pump
Stroke (mm) 100
Cylinder diameter (mm) 80 | 65
Pump speed (times/min) 200 116 72 42 | 200 116 72 42
Flow (l/min) 250 145 90 52 | 166 96 60 35
Pressure (Mpa) 2.5 4.5 6 6 | 4 6 7 7
Power (Kw) 15
Dimensions (mm) 1560×995×650
Weight (kg) 650

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
