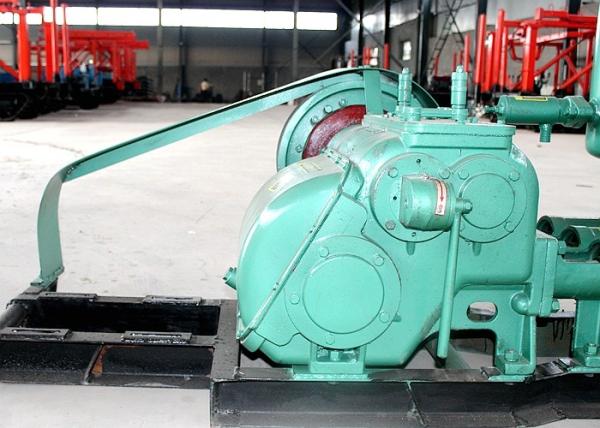

Horizontal Centrifugal Drilling Mud Pump Diesel Engine 15KW Power
Horizontal Centrifugal Drilling Mud Pump Diesel Engine 15KW Power
Specifications
Type :
Drilling Mud Pump
Model Number :
BW250
Product Name :
BW250 Mud Pump for Geothermal Water Well Drilling
Power :
15KW
Stock :
Yes
Place of Origin :
China
After-Sales Service :
3 Years
Weight :
650 Kgs
Mud Pump Motor :
Diesel Engine
Brand Name :
JINZHOU SHITAN
Certification :
ISO
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
Horizontal Centrifugal Drilling Mud Pump Diesel Engine 15KW Power
Product Specifications
Type: Drilling Mud Pump
Model Number: BW250
Product Name: BW250 Mud Pump for Geothermal Water Well Drilling
Power: 15KW
Stock: Available
Place of Origin: China
After-Sales Service: 3 Years
Weight: 650 Kgs
Mud Pump Motor: Diesel Engine
Product Description

High-quality horizontal centrifugal drilling mud pump designed for demanding applications in various industries.

Applications
  • Geological exploration, railway, road, port, bridge, water conservancy and hydropower projects
  • Tunnel, well, and industrial/civil construction applications
  • Coal mining and ore exploration
  • Small diameter water well drilling
  • Geothermal pipe installation for heat pump systems
  • Small-diameter hole foundation piling drilling
Technical Parameters
BW-250 MUD PUMP Specifications
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 100mm
Bore 80mm | 65mm
Pump speed (s.p.m) 200 116 72 42 | 200 116 72 42
Output volume (l.p.m) 250 145 90 52 | 116 96 60 35
Discharge pressure (Mpa) 2.5 4.5 6.0 6.0 | 4.0 6.0 7.0 7.0
Volumetric efficiency 85%
Mechanical efficiency 85%
Total efficiency 70%
Input power/speed (kw/r.p.m) 15/1500
Multiple grooved pulley D.P (mm) 410(B groove*5)
Input speed of pump (r.p.m) 500
Max. suction head (m) 2.5
Inside diameter of suction hose (mm) 76
Inside diameter of discharge (mm) 51
Overall dimensions (mm) 1100*995*650
Weight (kg) 500 (without power)

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
