BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine
BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine
BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine
BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine
Specifications
Model Number :
BW160
Structure :
Piston Pump
Usage :
drill mud pump
Application :
heavy duty slurry pump
Power :
Electric, 30Kw
Fuel :
Electric
Pressure :
High Pressure
Standard or Nonstandard :
Standard
Theory :
Reciprocating Pump
Pump Type :
small mud sucking pump
Brand Name :
JINZHOU SHITAN
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
BW 160 Drilling Mud Pump Used With Tractor Mounted Borewell Machine
Product Specifications
Attribute Value
Model Number BW 160 Drilling Mud Pump
Structure Piston Pump
Usage Drill mud pump
Application Heavy duty slurry pump
Power Electric, 30Kw
Fuel Electric
Pressure High Pressure
Standard or Nonstandard Standard
Theory Reciprocating Pump
Pump Type Small mud sucking pump
Single Cylinder Double Acting BW 160 Mud Pump

The pump has the advantages of simple structure, small size, light weight and convenient maintenance. It can be used for engineering drilling, geological survey, small-diameter water well drilling, etc. To supply flushing liquid into the hole, and the deepest alloy and diamond for 600 m drilling rig can be matched. The pump consumes less energy, flexible operation, high quality and durability, good decomposability and easy to relocate.

Technical Specifications
Specification Value
Type Horizontal type single-cylinder Double-action pump
Cylinder Diameter 95 mm
Stroke 85 mm
Reciprocate Times 165 times/minute
Displacement 160 L/min
Pressure 1.3 MPa
Volume Efficiency 80%
Input Speed 951 rotations/min
Transmission shaft speed R180/Z5.5kw
Input pipe diameter 50mm
Output pipe diameter 40mm
Mass (including the engine) 200 kg
Dimensions 1110*725*965 mm
Product Features
  • Compact structure, light weight, small size, beautiful appearance, can be driven by hydraulic motor, motor and diesel engine
  • Incorporates new concepts, structures, materials and processes in design
  • Improved standardization, serialization and generalization of key components
  • Wearing parts have long service life and high reliability
Main Advantages
  • Horizontal Three Cylinder Piston Grouting Pump
  • Electricity, Diesel Driven or Unpowered Machine Optional
  • Stable Output, High Pressure and Great Grout Injection Performance
  • High Quality and Compact Structure, Easy to Install, Operate, Move and Maintain
Frequently Asked Questions
Are you factory?

We are a 20 years factory. We are specialized in kinds of drilling rigs and related parts.

What is your terms of delivery?

EXW, FOB, CFR, CIF

About Packing:

Standard export packaging, export wooden cases or iron cases.

Terms of Payment:

30% TT deposit, the balance before shipment

Shipping Type:

By sea or by air

Ports of Shipment:

Tianjin, Qingdao, Shanghai or other required ports

Quality Control:

We have our own experienced QC, strict inspection and testing for every order before shipment

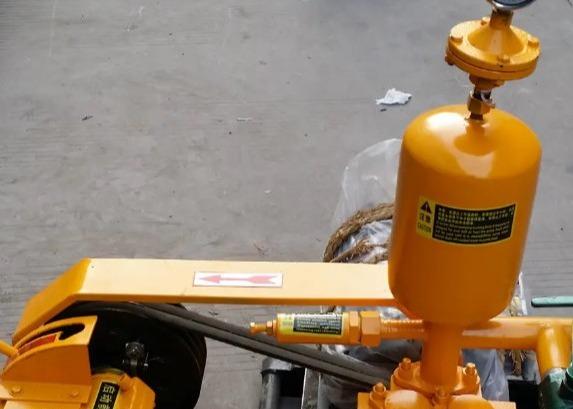

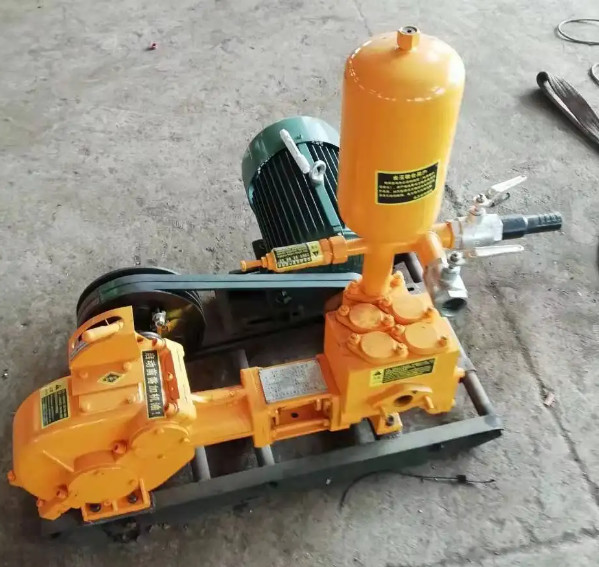

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
