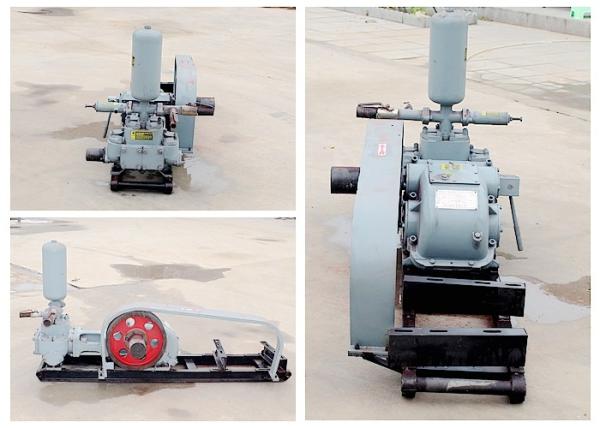

Horizontal Portable Oil Rig Mud Pump 220V/380V 70 Mm Stroke ISO Approved
Horizontal Portable Oil Rig Mud Pump 220V/380V 70 Mm Stroke ISO Approved
Specifications
Usage :
mud pump
Power :
Electric
Fuel :
electric, diesel
Mud Pump For :
Drill rig
Mud Pump Power :
220V/380V
Single Cylinder :
BW160 mud pump
Brand Name :
JINZHOU SHITAN
Model Number :
BW160
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
Horizontal Portable Oil Rig Mud Pump 220V/380V 70 Mm Stroke ISO Approved
Product Overview

China-manufactured drilling mud pump featuring high quality construction and reliable performance for industrial drilling applications.

Key Specifications
Usage Mud pump
Power Electric
Fuel Electric, diesel
Mud Pump For Drill rig
Mud Pump Power 220V/380V
Single Cylinder BW160 mud pump
Product Features
  • Horizontal, triplex, single acting reciprocating piston pump design
  • Optional diesel motor power with simple operation and remote control capability
  • Compact structure with smooth operation and high output pressure
  • Extended lifespan with stable performance and good general durability
  • Car transmission system providing six different discharge and pressure settings
  • Ideal for drilling fluid supply in core drilling applications up to 2000m depth
Technical Parameters
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 70 mm
Cylinder diameter 70 mm
Pump speed 1500 r/min
Output volume 150; 90; 58; 38; 125; 72; 47; 32 l.p.m
Discharge pressure 1.8; 3.2; 4.8; 7.0; 2.3; 4.0; 6.0; 7.0 Mpa
Volumetric efficiency 85%
Input power 7.5 Kw
Suction Pipe diameter 50 mm
Discharge pipe diameter 32 mm
Drilling hole depth Diamond core drilling <1500 m
Dimensions 1840 × 795 × 995 mm
Weight 630 kg

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
