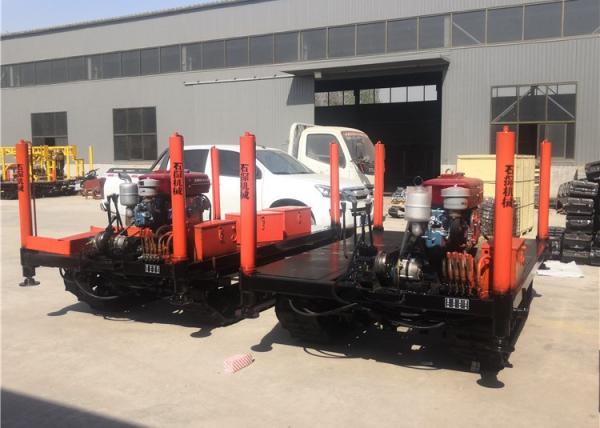

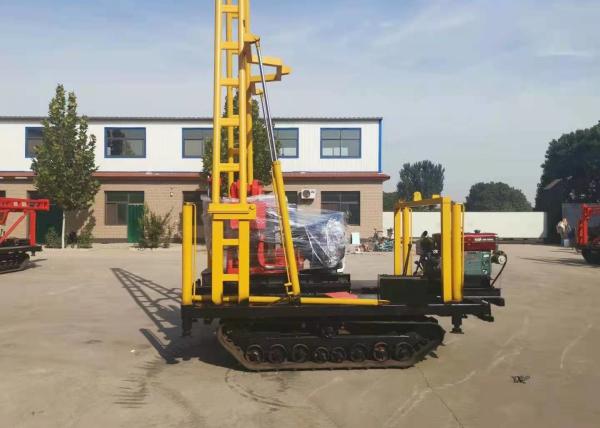

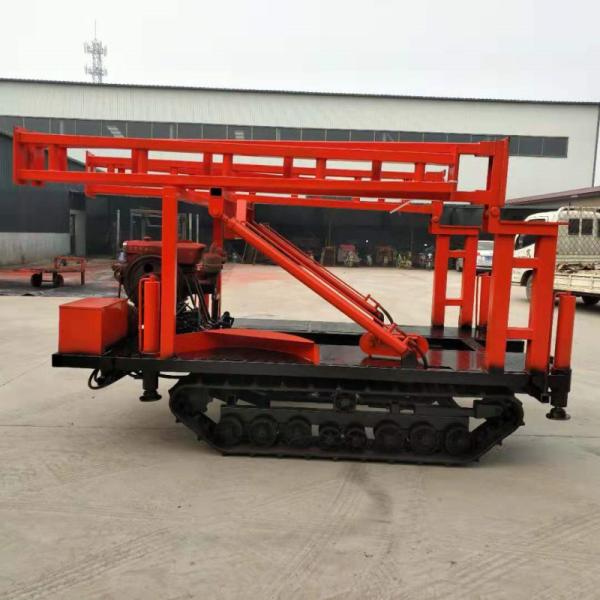

89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig
89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig
89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig
89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig
Specifications
Type :
horizontal directional drilling
feature :
multifunctional
Voltage :
220/380
Application :
Water Wells drilling
Color :
red /yellow
Name :
Core drilling machine
Drill rod diameter :
42.50.89
Drilling depth :
200m
Drilling hole inclination :
90 °-75°
The machine weight :
620kg
Brand Name :
ShiTan
Model Number :
GK-200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD6800-18000/set
Payment Terms :
L/C, D/A, T/T, Western Union
Delivery Time :
Within 7-12 days
Packaging Details :
wooden box
Description

Crawler Coal Mine Quarry Drilling Machine For Rock ShiTan Crawler Mounted Drill Rig


Crawler Mounted Drill Rig Product Description:

Mainly applies to drill water well for farm /industry irrigating, fresh water drinking or anywhere need fresh water. Geological/Geo-technical explorations, earth sample taking, etc.

Crawler Mounted Drill Rig parameters:

Unity machine parameter
Drilling depth
30-200m
Drill rod diameter
50 42mm
End hole diameter
75 46mm
Max. open hole diameter
220mm
Drilling hole inclination
90 °-75°
The machine dimension
2.1x0.9x1.3m
The machine weight
610kg
Vertical shaft
Vertical spindle speed
130 300 480 730 830 1045r/min
Vertical spindle stroke
450mm
Hoist
The biggest single rope lift weight
1600kg
Single rope winding speed
1.06 0.67 0.32m/s
wire rope diameter
13mm
Wire rope capacity
35m
The brake width
50mm
The brake diameter
230mm
Mud pump
Type
Horizontal single cylinder double function
Flow
95 77L/min
Maximum pressure
2.5Mpa
Working pressure
1.2Mpa


Crawler Mounted Drill Rig​ Main Features


1> It drills up to 500m deep and diameter is 70mm-400mm.
2> Drill through marble, soil, sand, gravel, rock, semi-hard rock, hard rock,marble, quarry, any any other hard ground, etc.
3> Hydraulic system, trailer / crawler mounted .
4> Power can be diesel engine or electric engine. 39-65KW.
5> compact structure, big torque, strong lifting capacity and easy being operated.


Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

89mm Rod 200m 0.32m/S Crawler Mounted Drill Rig
