260m Portable Borehole Deep Water Well Drilling Rigs With Hydraulic System
260m Portable Borehole Deep Water Well Drilling Rigs With Hydraulic System
260m Portable Borehole Deep Water Well Drilling Rigs With Hydraulic System
260m Portable Borehole Deep Water Well Drilling Rigs With Hydraulic System
Specifications
Brand Name :
SHITAN
Model Number :
ST260
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/P, D/P, T/T, Western Union
Supply Ability :
1000/month
Delivery Time :
5-8days
Packaging Details :
Wooden case (bare)
Drilling depth :
260
Drilling diameter :
105-260mm
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Power type :
Diesel
Color :
Yellow
Weight :
6T
Rotary Head Storke :
3.4m-6.0m
Rated Power :
55-132KW
Optional accessories :
70KW
Weight of the rig :
4m×1.7m×2.2m
Air pressure :
16-55m³/min
Description

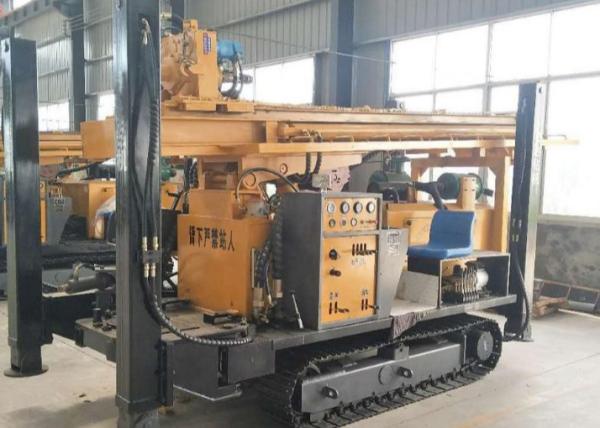

Crawler Type 260m Water Well Drilling Machine For Water Of The Mountains Project

Brief introduction of ST-260 Water Well Drilling Rig

ST-260 Water Well Drilling multifunctional hydraulic well drilling rig series mainly applied to industrial and civil drilling and geotemperature drilling. It has the advantages of large diameter of drilling hole, deep drilling, fast footage, and high efficiency.

ST-260 Water Well Drilling Rig parameters

Drilling Depth 260m
Dia.hole φ105-260mm
Advance Length one time 6.6m
Working pressure 1.7-3.0MPa
Air consumption 17-35m³/min
Length of rod 1.5m,2m,3m,6m
Dia. Of rod φ76, φ89,φ102,φ114
Lifting power 24T
Rotation torque 8500-11000N.m
Rotation Speed 40-70r/min
Diesel Engine Yuchai
Engine Power 85Kw/2200rpm
Travelling speed 0-2.5 Km/h
Climb capacity 30°
Weight 9000kgs
Dimension 5900x2000x2850mm
Application Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer 4",5",6",8" Drill hammer or CIR110, 130, 150,170

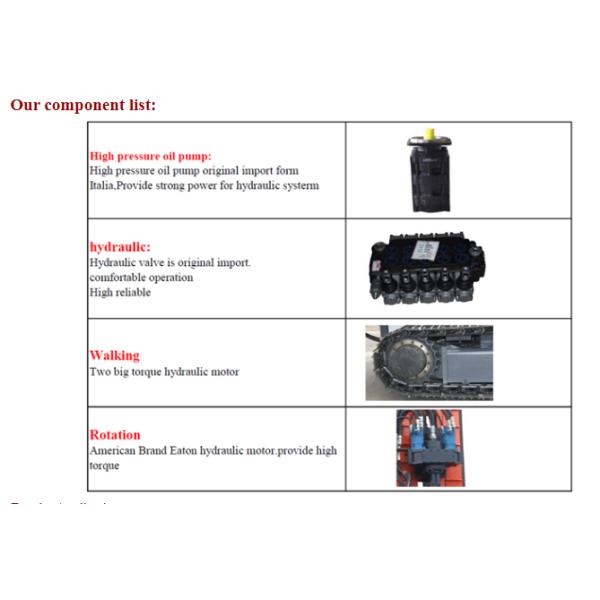

Features of ST-260 Water Well Drilling Rig

1) Engine: adopts the famous brand Guangxi Yuchai 92Kw turbocharged version
2) Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life
3) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs
5) Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement
6) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity
7) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work
8) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
