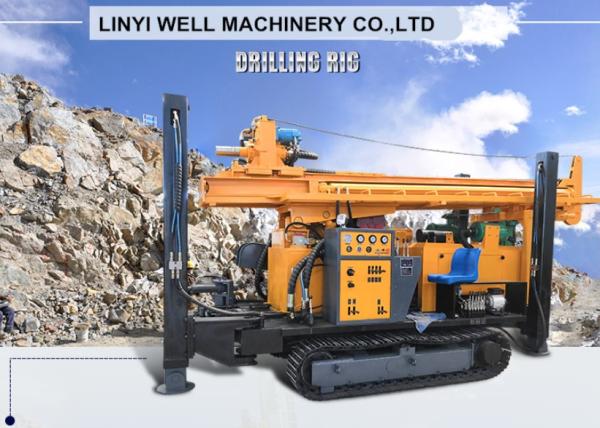

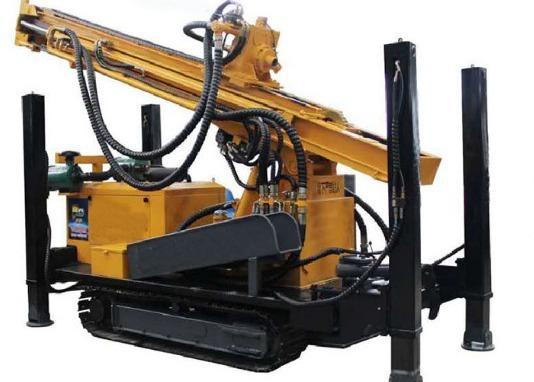

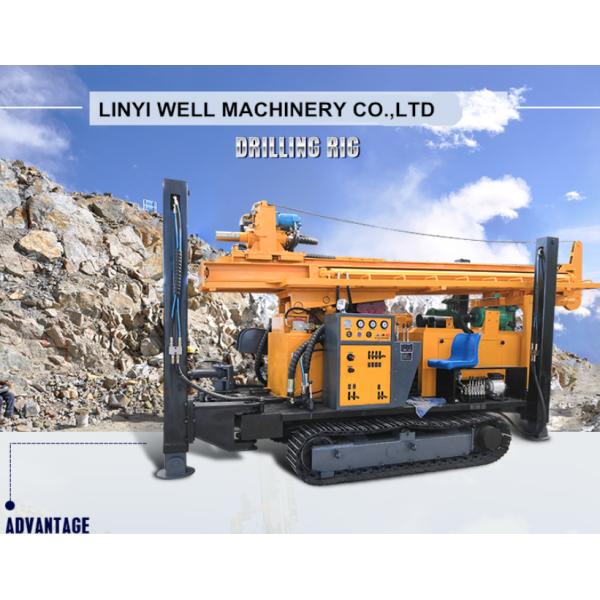

92kw 300m 140mm Dia Water Well Drilling Rig
92kw 300m 140mm Dia Water Well Drilling Rig
92kw 300m 140mm Dia Water Well Drilling Rig
92kw 300m 140mm Dia Water Well Drilling Rig
Specifications
Drilling depth :
100m/200m/300m/400m
Application :
drilling well,hammer for drills
Type :
Core Drilling Rig
After-sales service provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Weight :
9500KG
Power :
92
Usage :
Water Well
Hole diameter :
140-325mm
Drill rod length :
1.5-6
Brand Name :
SHITAN
Model Number :
ST300
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/P, D/P, T/T, Western Union
Supply Ability :
100000/yes
Delivery Time :
5-8days
Packaging Details :
Wooden case or naked
Description

300m Portable Core Sample Deep Water Well Drilling Drill Rig For Sale

Brief introduction of water well drilling rig

ST300 series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Features of water well drilling rig
ST300 model used water well drilling machine/tractor mounted water well drilling rig/drilling machine for sale is punctured equipment for light, efficient, versatile, it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses. The rig can create jobs in different formations, the max. hole depth of up to 300 meters The rig using a new type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor air inlet design, prolong the service life of diesel engine.
Parameters of water well drilling rig
Technical Parameters of ST300 Crawler type water well drilling rig
type ST300
The weight 9T
Dimension 5900*2000*2850mm
The hole diameter 140-325mm
Drilling depth 300m
One-time advance length 6.6m
Walking speed 2.5KM/H
Climbing angles 30
Power 84KW
Using air pressure 1.7-3.3MPA
Air consumption 17-35
Drill pipe length 1.5m 2.0m 3.0m 6.0m
Drill pipe diameter 89mm,102mm,
Rig lifting force 20T
Swing speed 55-115rpm
Swing torque 6200-85000N.m

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
