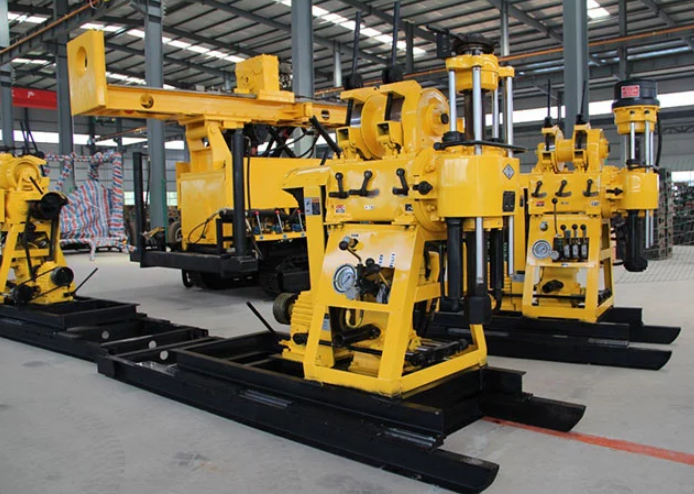

Portable Diesel Borehole Small Geological Drilling Rig Machine

Geological Drilling Rig Machine brief introduction

1. The winch of the JZ- 200 waterwell drilling rig is matched with the holder to form the doublesides star wheel supporting structure which can bear strong impact2. The spindle box achieves location via four groups of bearings to ensure the gyrator of sufficient rigidity to operate in the complex geological conditions with gravel bed,pebble bed.

3. The cone clutch with national patent technology is equipped to the product. Marked by free maintenance, it can deliver large torque and can be operated conveniently.
4. The water well drilling rig also employs the 53*59 hexagon drive drilling rod which has strong rigidity and can transmit large torque.

Geological Drilling Rig Machine parameter

Geological Drilling Rig Machine characteristic

GK-200 type drilling rig is a hydraulic feeding of low speed and high torque portable drilling rig.
The railway, hydro power, traffic bridges foundation and other buildings in the engineering geological investigation.
The geological core drilling, geophysical survey
The small grout Confucians, blast hole drill
The small water well drilling.

The characteristics of drilling rig:

1. With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2. The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3. Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4. The handle centered, convenient operation.
5. The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
