Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig
Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig
Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig
Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig
Specifications
Brand Name :
ShiTan
Model Number :
XY-1
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Type :
Water Well Drilling Rig
Power Type :
Diesel
Usage :
water well,railways, core drilling
Drilling depth :
100m
Dimension(L*W*H) :
1640*1030*1440mm
Drill pipe diameter :
42mm
Borehole dip angle :
90°~75
Spindle speed :
142、285、570（r/min)
Model :
YBC-12/125
Rated pressure :
12.5Mpa
Model(diesel engine） :
1105
WEIGHT :
AROUND500KG
Description

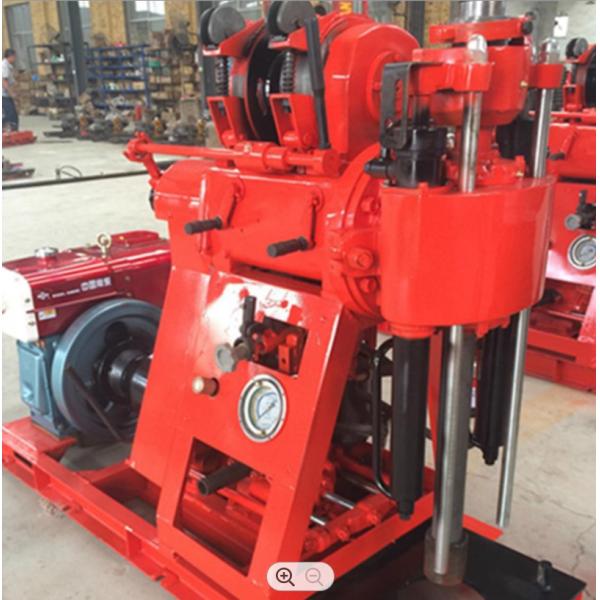

XY-1 Small Borehole Rock Core Water Well Drilling Rigs Manufacturer

Applications of Water Well Drilling Rig

XY-1 Drilling rig is light shallow hole drill with hydraulic feed.Applicable to the exploration,
geophysical exploration, road and building exploration and small water well drilling, etc.

Water Well Drilling Rig technical parameter

Drilling Rig
Drilling diameter(mm) 110
Drilling depth (m) 100
Drill pipe diameter (mm) 42
Drilling angle(°) 90~75
Equipment size(L * B * H) 1640* 1030 * 1440 (mm)
Rig weight (except engine) 500
Gyrator
Spindle speed (four gear) (r/min) 142,285,570
Spindle travel(mm) 450
Spindle no-load lifting maximum moving speed(m/s) 0.05
Spindle no load drop maximum movement speed(m/s) 0.067
Spindle maximum feed pressure(KN) 15
Spindle maximum lifting force(KN) 25
Spindle maximum output torque(KN• m) 0.5
Winch assembly
Winch maximum lifting force (single rope)(KN) 10
Reel speed (r/min) 55,110,220
Reel circumferential speed(m/s) 0.42,0.84 ,1.68
Reel diameter(mm) 145
Wire rope diameter(mm) 9.3
Wire rope density (m) 27
Brake diameter(mm) 230
Brake band width (mm) 50
Water pump
Pump type Horizontal single cylinder double acting
Maximum displacement (motor)(L/min) 95(77)
Work pressure (Mpa) 0.7
Cylinder diameter (mm) 80
Piston stroke(mm) 100
The maximum allowable pressure (Mpa) 1.2
Oil pump
Oil pump type Gear pump
Nominal pressure (Mpa) 12.5
Rated flow(ml/r) 20
Rated speed(r/min) 800-2500
Diesel engine or motor
Diesel engine ZS1100
Rated power (KW) 12.1
Rated speed (r/min) 2200
Rated pressure(Mpa) 11
Motor type Y160M - 4

Water Well Drilling Rig Direction for use
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be
replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to
have a compact structure and occupy small field area. lightweight, high detachability, easy transportation and suitable for
the operations in plains or mountain areas..

Description of application effect

1.According to the different bottom of the choice of alloy, diamond and composite pieces of bits for drilling.
2, can drill 2-9 grade sandy clay and rock, etc.
Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig
Core Deep Hole Geological Exploration 18kw Water Well Drilling Rig​

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
