BW 320 Triplex Mud Pump For Water Well Drilling Rig
BW 320 Triplex Mud Pump For Water Well Drilling Rig
BW 320 Triplex Mud Pump For Water Well Drilling Rig
BW 320 Triplex Mud Pump For Water Well Drilling Rig
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
BW 320
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Product Name :
BW 320 Water Well Hole Drilling Mud Pump,Reciprocating Piston Pump
Model :
BW 320
Brand :
Shitan
Structure :
Piston Pump
Application :
Water well drilling ,exploration
Weight :
300-500kg
Fuel :
Diesel
Material :
Stainless Steel
OEM :
Acceptable
Place of origin :
Hebei,China
After sale service :
Video Support
Warranty :
12 month
Description
BW 320 Triplex Mud Pump For Water Well Drilling Rig
Product Specifications
Attribute Value
Product Name BW 320 Water Well Hole Drilling Mud Pump, Reciprocating Piston Pump
Model BW 320
Brand Shitan
Structure Piston Pump
Application Water well drilling, exploration
Weight 300-500kg
Fuel Diesel
Material Stainless Steel
OEM Acceptable
Place of origin Hebei, China
After sale service Video Support
Warranty 12 month
Product Overview

The BW 320 is a horizontal, diesel-powered triplex mud pump designed for water well drilling rigs in energy and mining applications. This reciprocating piston pump features two cylinders with different diameters and four gear shifts, allowing adjustable output and drilling depth.

Technical Parameters
Type Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter (mm) 80
Stroke 110
Pump speed 214, 153, 109, 78
Flow (L/min) 320, 230, 165, 118
Pressure (MPa) 2.2, 3.6, 6.2, 10
Power (kw) 45
Dimensions (mm) 1905×1100×1200
Weight (kg) 720
Key Features
  • Four gear capacity for versatile operation with large rigs, offering wide flow adjustment range to accommodate different calibers, hole depths, and geological conditions
  • Self-sealing S-type polyurethane rubber piston with nylon backrest for extended service life
  • Five dust seals on the pull rod to prevent contamination between hydraulic and power ends
  • Steel ball inlet/outlet valves with sound-reducing rubber pads to minimize impact noise
  • BY-1 type seismic pressure gauge for durability
  • Compact, detachable design for easy maintenance and relocation
Applications

The BW 320 mud pump is ideal for transporting high-viscosity fluids and media containing hard suspended particles or fibers. Its flow is proportional to speed, and it operates without forming eddy currents, making it suitable for conditions where other pump types fail.

Operation Guidelines
  • Fill suction pipe, bottom valve, and pump body with water before starting
  • Reciprocate piston twice before starting; begin with no load
  • Test mud sand content frequently (should not exceed 10%)
  • Operate each speed separately for at least 30 minutes when using multiple speeds
  • Never change speed during operation - stop pump for shifting
  • Stop immediately for inspection if abnormal noise, pressure, or temperature occurs
  • For long-term storage, drain all fluids and apply anti-rust measures

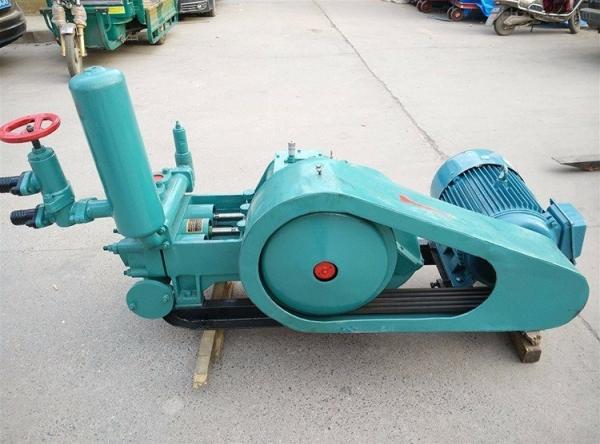

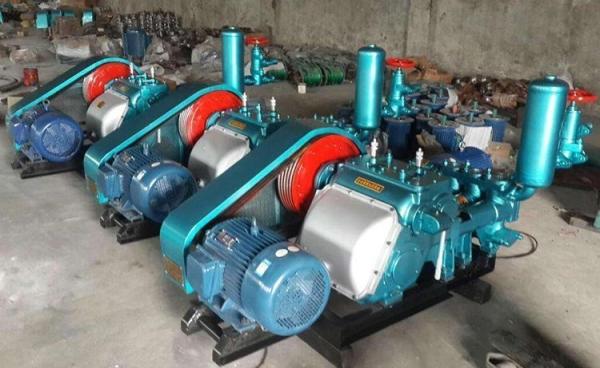

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
