Customization BW250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Customization BW250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Customization BW250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Customization BW250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Specifications
Product Name :
BW 250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Model :
BW 250
Brand :
Shitan
Structure :
Piston Pump
Application :
Water well drilling ,exploration
Weight :
300-500kg
Fuel :
Diesel
Material :
Stainless Steel
OEM :
Acceptable
Place of origin :
Hebei,China
After sale service :
Video Support
Warranty :
12 month
Brand Name :
JINZHOU SHITAN
Model Number :
BW 250
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Description

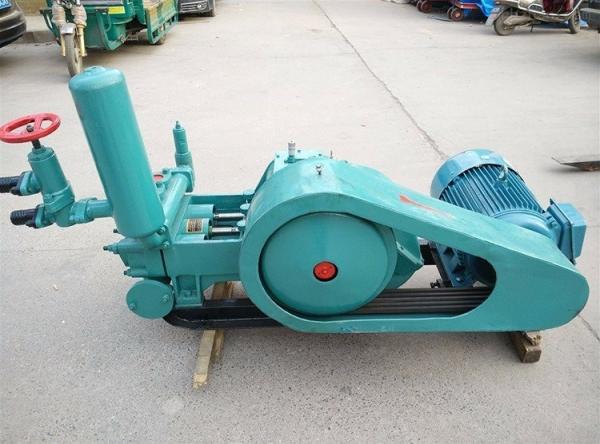

BW250 Drilling Mud Pump For Large Pneumatic Drilling Rig Machines
Product Overview

The BW250 mud pump is a horizontal double cylinder ratio double acting reciprocating piston pump, primarily used for supplying flushing liquid into boreholes in core drilling operations. It can handle both mud and water as rinsing liquids.

Key Specifications
Attribute Value
Model BW 250
Brand Shitan
Structure Piston Pump
Application Water well drilling, exploration
Weight 300-500kg
Fuel Diesel
Material Stainless Steel
OEM Acceptable
Place of Origin Hebei, China
Warranty 12 months
Technical Parameters
Parameter Value
Type Horizontal three cylinder ratio single acting reciprocating piston pump
Stroke 100 mm
Cylinder diameter 80 mm | 65 mm
Pump speed 200 | 116 | 72 | 42 rpm
Flow 250 | 145 | 90 | 42 l/min
Pressure 2.5 | 4.5 | 6 | 7 Mpa
Power 15 Kw
Dimensions 11560 × 995 × 650 mm
Weight 650 kg
Key Advantages
  • Equipped with drilling rigs to drill holes with mud for geological core drilling and prospecting (depth < 1500m)
  • Pumps slurry to provide wall coating, lubricate drilling tools, and carry rock debris to the surface
  • Can transport high-viscosity fluids and media containing hard suspended particles or fibers
  • Flow proportional to speed with no eddy current formation
  • Insensitive to medium viscosity
  • Equipped with two diameter cylinder liners (φ80mm for alloy/steel grain drilling)
Frequently Asked Questions
Can I request customize service?

Yes, we can customize voltage, material, color, nameplate, and meet other special requests.

What is the advantage of your factory?

We provide accurate market sharing, reliable investment suggestions, proper machine selection, quick problem solving, and reliable after-sales service to minimize purchasing risk.

What service do you supply after order?

Full order tracking including production, quality control, logistics coordination, and customs documentation preparation - providing one-stop service.

How to solve after-sales problems?

Send us videos/pictures of the issue. We will provide solutions and take 100% responsibility for problems caused by us, aiming for long-term cooperation.

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
