Drilling Equipment For Water Well Different Depth and Hole Diameters
Drilling Equipment For Water Well Different Depth and Hole Diameters
Drilling Equipment For Water Well Different Depth and Hole Diameters
Drilling Equipment For Water Well Different Depth and Hole Diameters
Specifications
Brand Name :
ShiTan
Model Number :
ST200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD4800-6200
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2000sets /year
Delivery Time :
10 days after payment
Packaging Details :
Plastic film and Standard export wooden box
Name :
water Well Drilling Rig
guarantee time :
1 year
loading port :
Tianjin
weight :
600kg
OEM :
OK
Drilling depth :
200M
Description

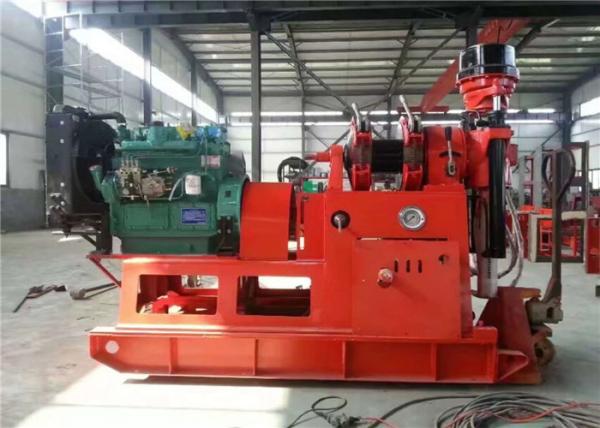

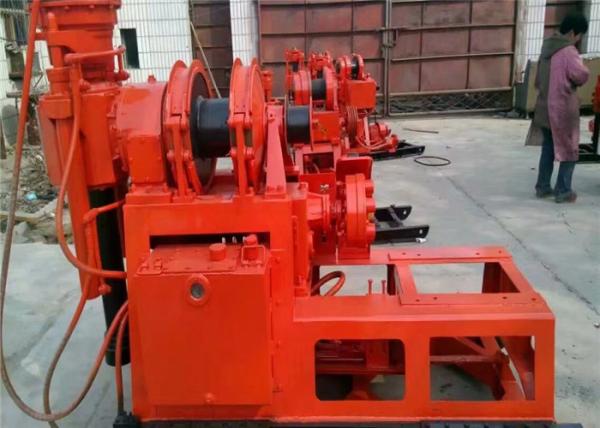

Qualtiy Red Mounted Boring Borehole Water Well Drilling Rig

Competitive Advantage:


1. 12 years factory
2. ISO Certificate
3. Had export to Many countries
4. Professinal technical team
5. 180-720 days guarantee time

Drilling Equipment For Water Well Different Depth and Hole Diameters

Technical Specification

ST-200 Type
Drill Swivel Head

Drilling depth

 Max.200m

Spindle speed

(4-speed)

115 230 505 1010r/m

Hole diameter

 Max.300m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 20KN Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 16.2KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1730*860*1360mm
