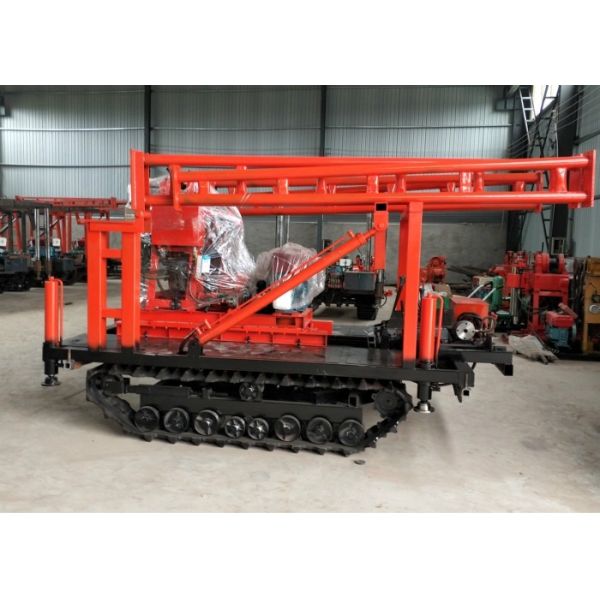

Engineering Geo - Prospection Rock Drilling Rig For Investigation
Engineering Geo - Prospection Rock Drilling Rig For Investigation
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-150
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Condition :
New
Power Type :
Diesel
Voltage :
220V/380V
Power(W) :
15KW
Dimension(L*W*H) :
2050*1180*1420
Weight :
500kg
Drilling depths :
150m
Ratory speed :
1100r/min
Torque :
1800 N*M
Travel :
450mm
Warranty :
1 Year
Description

Engineering Geo-prospection in Construction Geological Drilling Rig Machine Practical for Investigation

Product Description:

ST-150 fully hydraulic drilling rig is multifunctional, mainly applied in constuction, highway, bridge, water conservancy, hydroelectricity, mine, tunnel and so on. It is widely used in engineering hole construction, such as foundation investigation hole, deep foundation pile anchor hole, road or dam foundation reinforcement holes, drain hole, open pit blast holes, water wells and foundation piles.

Technical Specification:

Basic Parameters
Drilling depth 20- 150m
Drilling diameter 46-300mm
Drill pipe diameter 42mm
Gross weight of drilling machine(engine not included) 600kgs
Dimension (length ×width × height) 2050 × 1180 × 1420 mm
Revolving Plate
Rotate speed 60 200 400 610 1100 r/min
Maximum torque 1800N*m
Driving travel 450mm
Maximum Cylinder driving force 20,000N
Maximum Cylinder lifting force 30,000N
Lifter
Lifting capacity 24,000N
Bobbin line speed (2 layers) 0.20 0.72 1.26 2.8 m/s
Bobbin diameter 140mm
Rope diameter 11mm
Rope capacity 26m
Drilling rig
Type Steel pipe quadripod
Height 6m
Drive motor
Type Changzhou ZS1105 diesel engine
Rated power 13.2KW
weight 160kg
