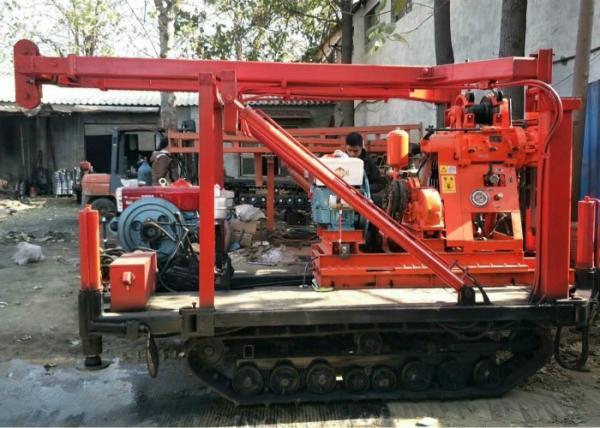

Home Rock Core Drilling Machine , Hydraulic Rotary Drilling Rig 15KW Power
Home Rock Core Drilling Machine , Hydraulic Rotary Drilling Rig 15KW Power
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Usage :
Water Well Drilling
Voltage :
can be customized
Power(W) :
15KW
Dimension(L*W*H) :
7980mm*2300mm*2860mm
Weight :
910kg
Drilling depth :
30-200m
Drilling diameter :
75-300mm
Drilling angle :
75-90 Degree
Application :
Geological Exploration/water well drilling
Spindle Speed :
64,128,287,557r/min
Power source :
diesel engine
Description

Home Use Small Model Water Well Drilling Rig in Store

Product Description:

1.Hydraulic cylinder,high efficiency.


2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.

3.Pressure gauge display the condition of the bottom of the drill hole.

4.Diesel engine with electric starter,convenient and reduce the labor itensity.

5.Equipped with BW 250 mud pump.

Product Parameter:

SPECIFICATIONS FOR DRILLING RIG
Engine
Drilling depth
m
200
Drilling hole diameter
mm
75-300
Power
kw
15
Main performance parameters
Single lifting speed
m/s
1.64
Single lifting force
kN
24
Wireline capacity
m
35

Mud pump
Displacement
L/min
160
Working pressure
Mpa
1.3
Reciprocate times
times/min
165

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
