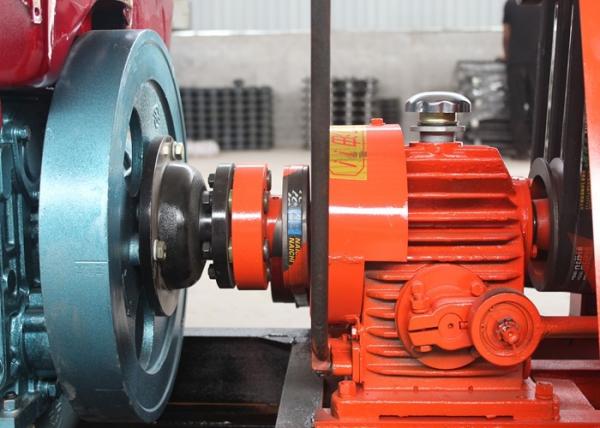

Trailer Mounted Rock Core Drilling Machine , Water Well Digging Equipment
Trailer Mounted Rock Core Drilling Machine , Water Well Digging Equipment
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-10 days
Packaging Details :
Standard Export Package
Type :
ST-200
name :
water well digging equipment
Description

Drilling depth
160m
Maximum borehole caliber
300mm
Minimum borehole caliber
75mm
Diameter of Drill pipe
42/50/60mm
Drilling angle
90°~75°
Weight(Not include power)
1600kg
Unity machine dimension
2750*950*1770mm
2.Vertical Spindle
Spindle rotating speed
64/128/287/557r/min
Spindle stroke
450mm
3.Hoist
Max. single line lifting capacity
2400kg
Reel lifting speed
1.64m/s
Steel wire rope diameter
13mm
Steel wire rope capacity
35m
Hug floodgate diameter
245mm
Hug floodgate belt width
70mm
Movable distance
400mm
4. Mud pump
Type
BW-160
Type
Horizontal Single Cylinder with double function
Max. Discharge
Diesel engine 170L/min /Electrical Motor 140L/min
Max. Pressure
3MPa
Work Pressure
1.5MPa
5. Power
Diesel engine
22HP
Electric Motor
15KW
6. Drilling tower
Type
Integrated on drilling rig
Control system
Hydraulic
7. Trailer chassis
Type
4 wheels

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
