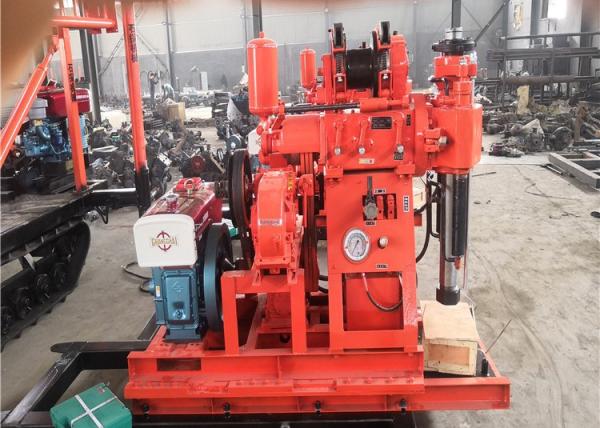

GK 200 Core Drilling Machine for Mining Soil Testing In African Market
GK 200 Core Drilling Machine for Mining Soil Testing In African Market
GK 200 Core Drilling Machine for Mining Soil Testing In African Market
GK 200 Core Drilling Machine for Mining Soil Testing In African Market
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK 200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Product Name :
GK 200 Soil Testing Drilling Machine
Driling Depth :
200 meters
Drilling Diameter :
295mm
Key Words :
Soil Testing Drilling Machine,Exploration ,Water Well Drilling,borehole drilling machine,core drill rig,hydraulic drilling machine
OEM :
Acceptable
Color :
Yellow,blue,red
After sale service :
Video Support
Warranty :
12 months
Driven type :
Diesel Engine
Voltage :
220/110V
Description
GK 200 Core Drilling Machine for Mining Soil Testing
Product Specifications
Attribute Value
Product Name GK 200 Soil Testing Drilling Machine
Drilling Depth 200 meters
Drilling Diameter 295mm
OEM Acceptable
Color Options Yellow, Blue, Red
After-Sale Service Video Support
Warranty 12 months
Driven Type Diesel Engine
Voltage 220/110V
Product Overview
The GK-200-2 drilling machine is a hydraulic feeding system designed for soil testing and mineral exploration. Featuring large power output, significant lifting force (2T), and high transmission torque, this rig is ideal for geological surveys, mineral deposit investigation, and concrete structure inspection.
Technical Parameters
Parameter Specification
Borehole Diameter 75, 91, 110, 130, 150, 300mm
Drilling Depth 30-200m (varies by diameter)
Drill Pipe Diameter 42, 50, 60mm
Angle Range 90°-75°
Dimensions (L×W×H) 1433×697×1273mm
Weight (without power unit) 525kg
Gyrator Specifications
Spindle Speed (4-speed) 71, 142, 310, 620r/min
Spindle Stroke 450mm
Max Feeding/Lifting Force 15KN/25KN
Max Output Torque 1.25KN.M
Key Features
  • Compatible with diamond, alloy, and steel roller drill bits for various geological conditions
  • Hydraulic feeding mechanism improves efficiency and reduces operator fatigue
  • Cassette holding mechanism allows rod replacement without shutdown
  • Pressure gauge for monitoring hole conditions
  • Compact, lightweight design suitable for both plains and mountainous terrain
  • Large Kelly bar with double guide pipe enhances stability
Operational Advantages
  • Efficient hydraulic transmission minimizes power loss
  • Wide speed range (14-500r/min) with substantial torque output
  • Dual reverse speeds for accident handling
  • 3400mm power head stroke improves drilling efficiency
  • Dual oil pump system reduces power consumption
  • User-friendly maintenance and service access
  • Functional hydraulic interfaces for customization
Product Images
GK 200 Core Drilling Machine for Mining Soil Testing In African Market GK 200 Core Drilling Machine for Mining Soil Testing In African Market GK 200 Core Drilling Machine for Mining Soil Testing In African Market GK 200 Core Drilling Machine for Mining Soil Testing In African Market GK 200 Core Drilling Machine for Mining Soil Testing In African Market
Keywords: Soil Testing Drilling Machine, Exploration, Water Well Drilling, Borehole Drilling Machine, Core Drill Rig, Hydraulic Drilling Machine

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
