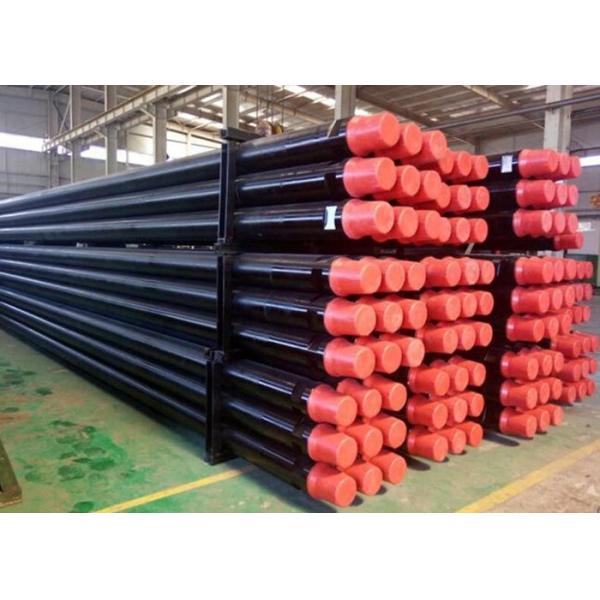

High Strength Rock Drill Rods Thread Types , Drill Steel Rod ISO Certification
High Strength Rock Drill Rods Thread Types , Drill Steel Rod ISO Certification
Specifications
name :
Rock Drill Rods
standard :
ISO
feature :
thread types
Brand Name :
JINZHOU SHITAN
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
High Strength Rock Drill Rods Thread Types, Drill Steel Rod ISO Certification
Product Specifications
Name: Rock Drill Rods
Standard: ISO
Feature: Thread Types
High Strength Rock Drill Rods for Water Well and Mine Well Drilling
How to Select Drilling Rods
Drill rods used in applications such as DTH, DTHR, and DR consist of steel pipes with a pin at one end and a box at the other. These rods transmit rotational torque and thrust from the drill rig rotary head to downhole drilling tools.
Different applications require different diameter drill rods. Smaller DTH hammers typically require smaller DTH drill rods, and vice versa. Available diameters include:
  • 50mm
  • 60mm
  • 76mm
  • 89mm
  • 95mm
  • 102mm
  • 114mm
  • 127mm
  • 140mm
Product Parameters
Size Nominated Weight (lb/kg) Length (ft/m) OD (in/mm) Pipe Wall Thickness (in/mm) Thickening OD (in/mm) Grade Min. Bend Radius (m)
2 50 | 56.2 | 25.5 10 | 3 1.968 | 50.8 0.256 | 6.5 2.24 | 57 S135 38
2 3/8 60 | 79.4 | 36 10 | 3 2.375 | 60.32 0.295 | 7.5 2.657 | 67.5 R780 42
2 7/8 73 | 101.4 | 46 10 | 3 2.875 | 73.02 0.315 | 8.0 3.15 | 80 R780 65
3 1/2 89 | 220.4 | 100 15 | 4.5 3.5 | 88.9 0.394 | 9.99 3.62 | 92 R780 75

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
