Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power
Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power
Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power
Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power
Specifications
Brand Name :
ShiTan
Model Number :
XY--1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Type :
core drilling machine
Model Numbe :
XY--1A
Drilling depth :
150m
Application :
water well
Max. open hloe caliber :
75-220mm
Power type :
Diesel
Usage :
Water Well,water well.core sample
Product name :
tractor mounted water well drilling rig/core drilling machine,diamond core drilling rig
Spindle speed :
570 r/min
Drilling angle :
0-360
Description
Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power
Product Specifications
Attribute Value
Type core drilling machine
Model Number XY--1A
Drilling depth 150m
Application water well
Max. open hole caliber 75-220mm
Power type Diesel
Usage Water Well, water well core sample
Spindle speed 570 r/min
Drilling angle 0-360°
Product Description

The XY-1A Core Drill Rig is a versatile drilling solution designed for geological exploration, hydro power projects, road and railway construction, building projects, and large diameter water well projects.

Technical Parameters
Component Specification
Drilling Depth Max. 150m
Spindle Speed 1010, 790, 470, 295, 140 (r/min)
Hole Diameter Max. 150m
Spindle Stroke 450mm
Drill Rod Diameter 42.50mm
Spindle Pull-down Max. 15KN
Angle Range 90-75°
Spindle Lifting Capacity Max. 25KN
Oil Pump Model YBC-12/125
Water Pump Model Horizontal reciprocating single-acting piston pump
Rated Pressure 12.5Mpa
Working Pressure Max. 1.25Mpa
Flow Speed 8ml/r
Rated Speed 1500r/min
Hoist Capacity Max. 15KN
Diesel Engine Model 1105
Rated Power 18KW
Rated Speed 2200r/m
Weight Approx. 600KG
Dimensions 1620×970×1560mm
Applications
  • Geothermal pipe-installing for heat pump
  • Small-diameter hole foundation piling drilling
  • Construction drilling for prospection, geotechnical investigation
  • Projects including railway, road, port, bridge, water conservancy and hydropower
  • Tunnel, well, industrial and civil construction drilling
  • Coal mining exploration
  • Small hole diameter water well drilling
Key Features
  • Cost-effective solution with high efficiency
  • Excellent stability and reliability
  • Lightweight design for improved portability
  • Enclosed bevel gear system prevents contamination and extends service life
  • Robust frame construction with low center of gravity for superior stability

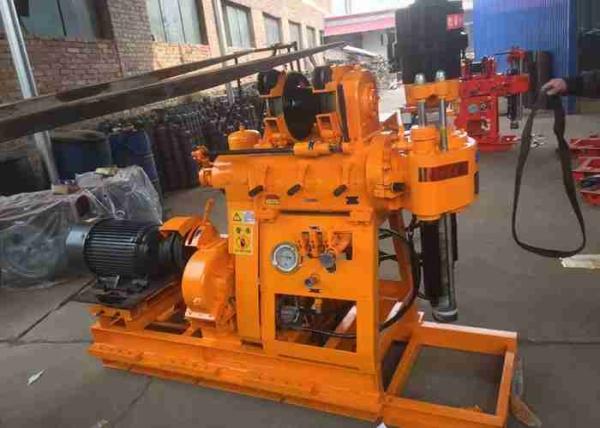

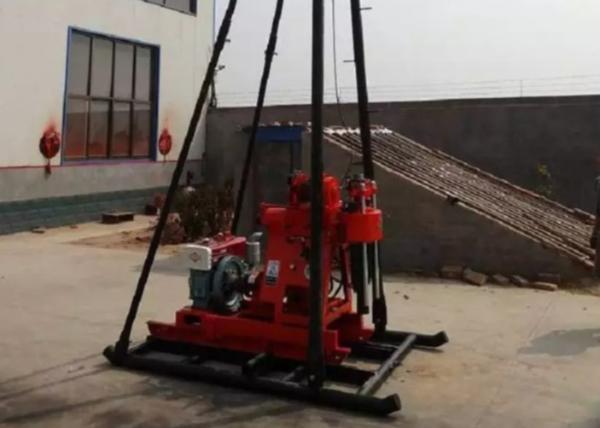

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
