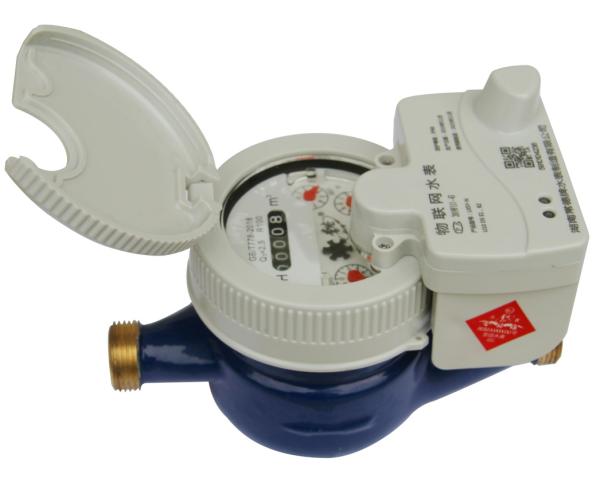

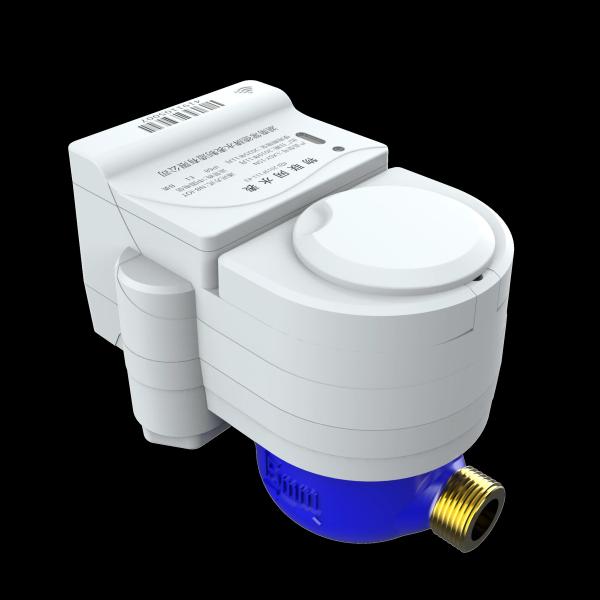

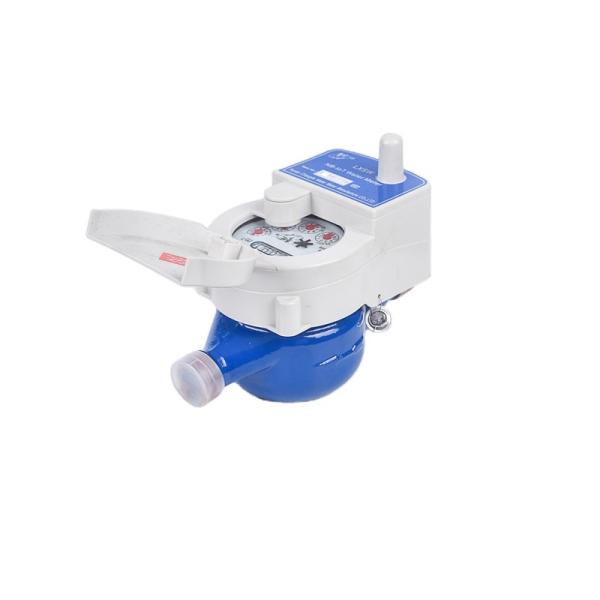

NBIOT Customizable NB-IOT Water Meter with Brass Valve Control Horizontal Installation IP68 Protection Class OEM Support

Specifications

warranty :

6 YEARS, 1 year

customized support :

OEM

Place of Origin :

Hunan, China

Brand Name :

Changde

Model Number :

LXSW-15F~32F

Flow Rate :

2.5

Measurement Range :

R160

type :

Multi-jet meters

Connectivity :

Threaded

Protection Class :

ip68

Name :

NB-IOT water meter

Communication network :

GPRS,NB-IOT network

Certificate :

ISO4064 ISO9001:2008

Installation :

Horizontal

Water temperature :

≤30℃

Working pressure :

≤1MPa

Description

Changde Brand GPRS water meter,NB-IOT Water meter,smart water meter

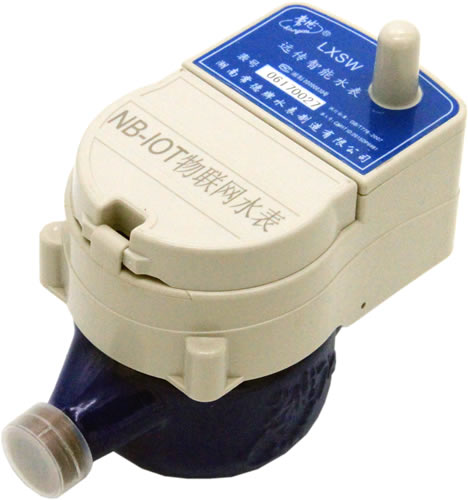

NB-IoT water meter

NB-IoT water meter is a new remote water meter based on GPRS network or NB-IoT network. NB-IoT water meter adopts the special network communication, the data communication is safe and reliable.

Product Description

Special Features

Name:	GPRS water meter,NB-IOT water meters
Material:	Dustile cast iron
Type name	GPRS WATER METER ,NB-IOT WATER METER
Certificate	ISO4064 ISO9001:2008
warranty	1 year
Installation	Horizontal
Water temperature	≤30℃
Working pressure	≤1MPa
Normal Size	15mm~25mm

Product Feature:

Convenient maintenance: Structural design of electromechanical separation, easy installation on site and convenient maintenance

Installed easily: it can be installed wherever there is a cell phone signal.

Long time battery life: 6 years

Main Function:

Transmitted safely and reliably: GPRS & NB-IoT

Double Hall sensor: realize the forward and backward metering of water meter, ensure the complete synchronization of electromechanical, and there is no accumulative error.

Monitor in real time: Monitor magnetic interference, low voltage battery, upload abnormal alarm to meter reading platform.

Main Technical Data:

Standard Compliance:

GB/T 778.1-2007/ISO4064-1:2005

Working Conditions:
Water temperature: lower than 30°C (T50 as option)
Working pressure: 10 bar (16 bar as option)

Permissible Error Value and Error curve
Max. Permission Error (for T30): From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2%;when water temperature is >30oC,it will be ± 3%.

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

NBIOT Customizable NB-IOT Water Meter with Brass Valve Control Horizontal Installation IP68 Protection Class OEM Support

Name: NBIOT Customizable NBIOT Water Meter with Brass Valve Control Horizontal Installation IP68 Protection Class OEM Support
Brand: Changde
Price: 1 USD

Ask Latest Price

Product Detail

warranty :

6 YEARS, 1 year

customized support :

OEM

Place of Origin :

Hunan, China

Brand Name :

Changde

Model Number :

LXSW-15F~32F

Flow Rate :

2.5

Contact Supplier

Hunan Changde Water Meter Manufacture Co., Ltd.

Verified Supplier

1 Years

Main Products :

Multi jet water meter, Single jet water meter, Volumetric piston water meter

Certification Level :

Verified Supplier

Discover similar products

15 mm -300 mm GPRS Water Meter Horizontal Woltmann Removable Measuring Unit Cold

Contact Now
High Quality Wireless Remote Reading IOT Water Meter OEM Customizable with Price

Contact Now
High Quality NB-IOT Water Meter with Wireless Remote Reading Customizable OEM

Contact Now
NB-IOT Water Meter Cast Iron Body Electro-mechanical Separation Non-magnetic NB

Contact Now
NB-IoT Wireless Remote Reading Water Meter with Customized Local SIM Card and

Contact Now

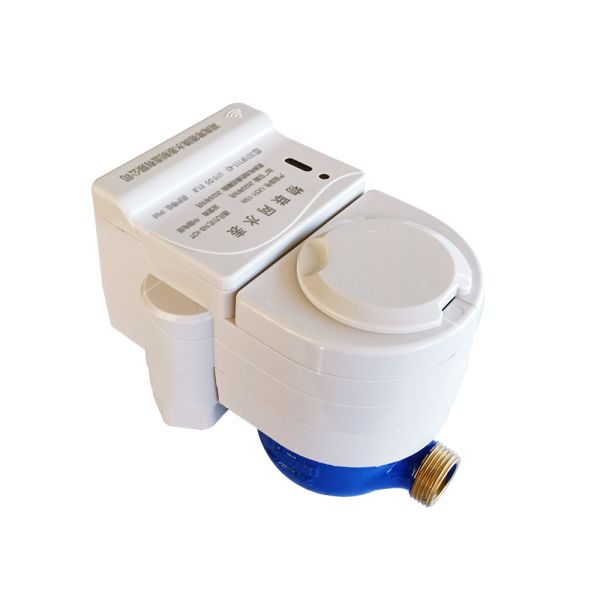

AMR Wireless Residential Smart Water Meter GPRS/GSM/3G/4G
