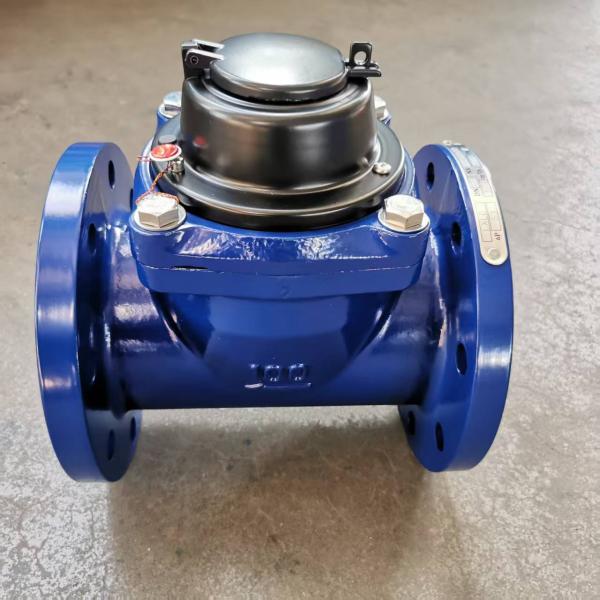

4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter
Specifications
warranty :
1 year, 1 year
customized support :
OEM, ODM
Place of Origin :
Hunan, China
Brand Name :
Changde
Model Number :
LXLG-40-200
Flow Rate :
40-1600m3/h
Measurement Range :
R25 R50 R80
type :
Turbine meters, woltmann water meter
Connectivity :
FLANGED
Protection Class :
ip68
Product name :
Horizontal Woltmann Dry Type Detachable Measuring Unit Water Meter
Certificate :
ISO4064 ISO9001:2008
Installation :
Horizontal
Water temperature :
≤30℃
Working pressure :
≤1MPa
Normal Size :
40mm~200mm
Material :
CAST IRON
Description

4 inch to 8 inch dry detachable industry water meter

Product Description

1 Maximum contact power 5W;

2 Maximum switching voltage50 VDC;

3 Maximum switching current 0.2A;

4 Pulse constant100imp/m3, 1000imp/m3 ;

5 Electromechanical conversion error ±1 pulse equivalent;

6 Signal line connection:

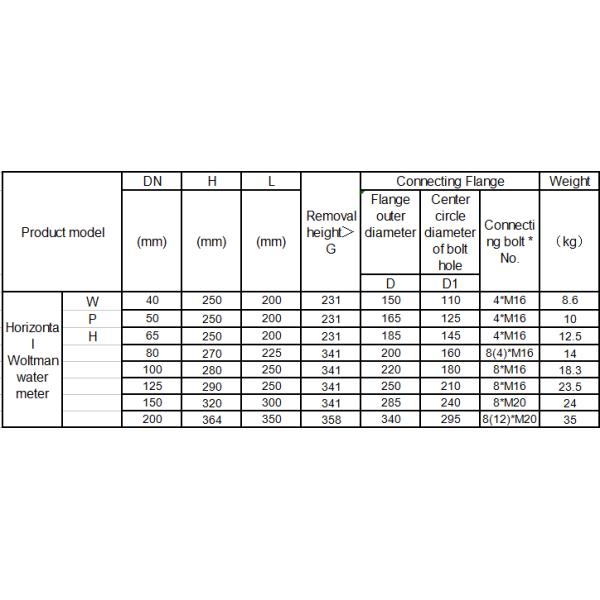

Dimensions and weight

4 Inch to 8 Inch Horizontal Woltmann Dry Type Detachable Measuring Unit Industry Cold Water Meter

Technical Data

Product model

Diameter

Flow rate m³/h

Indication

Initial flow rate

Overload flow rate

(Q4)

Normal flow rate

(Q3)

Transitional flow rate

(Q2)

Min.

flow rate

(Q1)

Min Reading

(Min)

Max.

Reading

(Max)

Horizontal Woltman water meter

W

P

H

Cold water: R80 Q2/Q1=6.3 GB/T 778.1-2007

Heat water: R50 Q2/Q1=6.3 GB/T 778.1-2007

0.0005

Dry type:

999999.999

40

-

50/31

40/25

3.15

0.5

0.001

50

-

50/31

40/25

3.15

0.5

65

-

80/50

63/40

5.0

0.79

80

-

125/78

100/63

7.90

1.25

100

-

200/125

160/100

12.6

2.0

125

-

312/200

250/160

19.7

3.12

150

-

500/312

400/250

31.5

5.0

0.01

200

-

780/500

630/400

50.4

8.0
