SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
SS304 High Pressure Solenoid Valve with Nass Coil 1.6MPA G1/4~1 Port and 3 Years Warranty
Specifications
Model Number :
YSE-100
Brand Name :
Round Star
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$59.99-99.99
Port size :
G1/4"~1"
Structure :
Pilot
Max pressure :
25MPA
Media :
Gas
Temperature range :
-10~80℃
Working pressure :
0-300bar
Valve material :
SS304
Sealing material :
PTFE
Interface :
G thread, NPT thread
Working voltage :
AC220V/AC110V 50/60Hz8VA, DC24V6W
Coil type :
Nass coil from Germany
IP rating :
IP65
H degree :
Yes
Power consumption :
8VA (AC), 6W (DC)
Working type :
Pilot operated (NC)

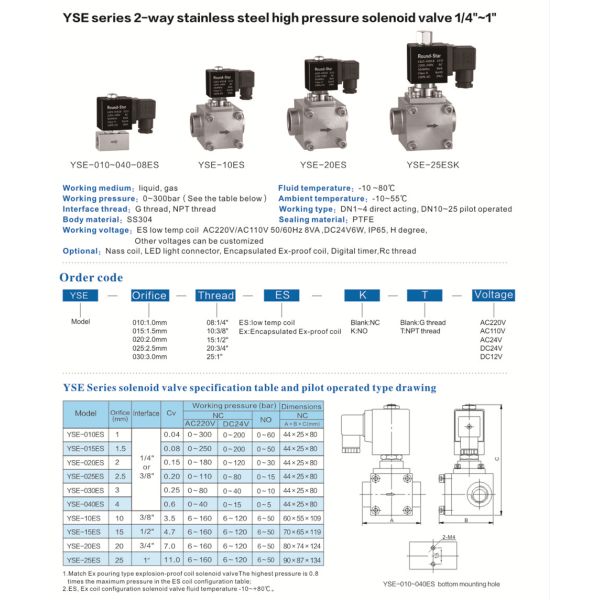

Description
Products Description
SOLENOID VALVE
1) Medium:steam.water
2) Type:N/C
3) Material: Stainless Steel
4) Nass coil from Germany
5) sealer: PTFE
Working medium:
liquid,gas
Fluid temperature:
-10~80℃
Working type:
pilot operated ( NC )
Working pressure:
0-300bar(See the table below)
Valve body material:
SS304
Sealing material:
PTFE
Interface:
G thread.NPT thread
Working voltage:
ES low temp coi AC220V/AC110V 50/60Hz8VA,DC24V6W, IP65, H degree,Other voltages can be customized
Certifications
Company Profile
Performance testing equipment for solenoid valve
To supply qualified products,each solenoid valve has been tested strictly.
Automatic digital winding machine for the production of coil
We useautomatic digital high-speed winding machine for the production of coil. The machine is characteristic of parallel winding,
high precision and high speed.
Coil plastic capsulation workshop corner

Performance testing machine for solenoid coil
To guarantee the quality, each solenoid coil has been tested bin the aspects of resistor, laps, current, power and withstand
voltage.
German spectrometer
All the metal components of solenoid valve have been tested by OXFORD spectrometer to ensure the rightness of material, which
meets various requests for production
Iron-hand digital control lathe
High-tech iron-hand operating, each operator can manage more than 5 sets digital control lathes,which greatly improve the
production efficiency and sharply reduce the production cost. So we can offer more discount to the customer.
High performance digital automatic testing machine for solenoid valve
Each solenoid valve has been tested of high pressure, low pressure,leakage and so on, to ensure that we can offer satisfied
products for our customers.
solenoid valve assembly line
All the workshops are equipped with air conditioner, to create a clean, comfortable working environment for the employees.
Exhibition
EXPO exhibition in shanghai

AQUATECH in beijing

Customer Photos

AQUATECH IN Amsterdam

Packing & Delivery

Shockproof Bag to protect valve

Strong Cartons

1.English neutral packaging

2.with round star logo

3.with your logo (Charged)

membrane outside protect rain

Package more than 40kgs,use
Fumigated wooden case or pallet.
