Specifications
Place of Origin :
Guangdong, China
IP level :
ip65
Brand Name :
SHANGWEN
Model Number :
SWF5X-2ZFS
Type :
XLR Connector
Application :
Power
Gender :
Female
Industrial electronics :
accessories
MOQ :
10 pieces
Price :
CN¥15.85/pieces 10-99 pieces
Description
Products Description
Waterproof XLR connector-5 pin female socket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket

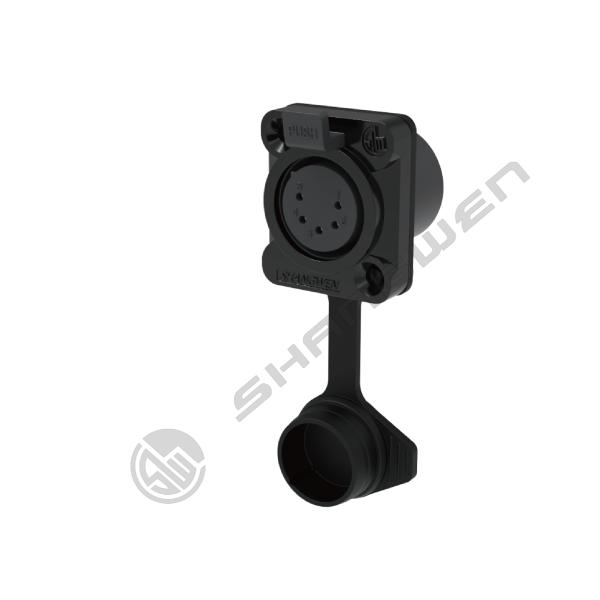

Model:SWF5X-2ZFS-KN (Black)

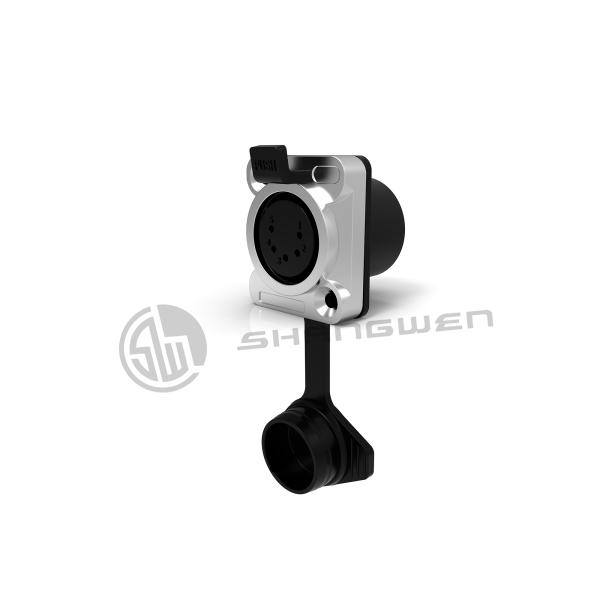

SWF5X-2ZFS-KN (Silver)
Sealed rubber jacket is waterproof and dust-proof
Standard D mounting dimensions, fully matched to existing installation
Zinc alloy shell, contact point gold-plated
Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
Waterproof IP65
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
>1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃

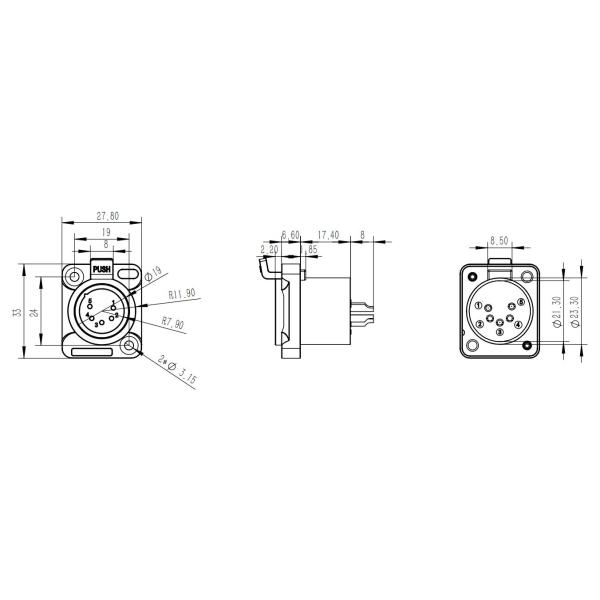

5.Size reference (unit /mm)
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Waterproof rubber(Unit:mm)
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
6.Assembly reference
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Application area
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Company Information
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Patent & Certification
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Exhibition activities
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Packaging reference
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
Payment and logistics
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
FAQ
Industrial Electronics Accessories Waterproof 5 Pin XLR Female Jack Panel Mount Connector with Sealed Rubber Jacket
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
